3. Click the Rectangle button and select either Rectangle or Ellipse to make a
drawing. Move your cursor (mouse) to the place on the image in the View
area which you want to analyze. Use the left button of the cursor to draw a
rectangle or ellipse as big as you want. The drawn rectangle or ellipse will
be bordered in colored lines.
Once the rectangle or ellipse is formed, the corresponding analysis data will
appear in the Data Table below. This data would be the benchmark data.
4. Repeat the step 3 to select more areas you wish to analyze at the same row.
The corresponding data will be displayed sequentially by the orders you
draw in the Data Table.
Or you can use the Copy button to to redraw an area with the same size
and shape as the benchmark factor.
You can use the lists of the data to conduct the study as you want.

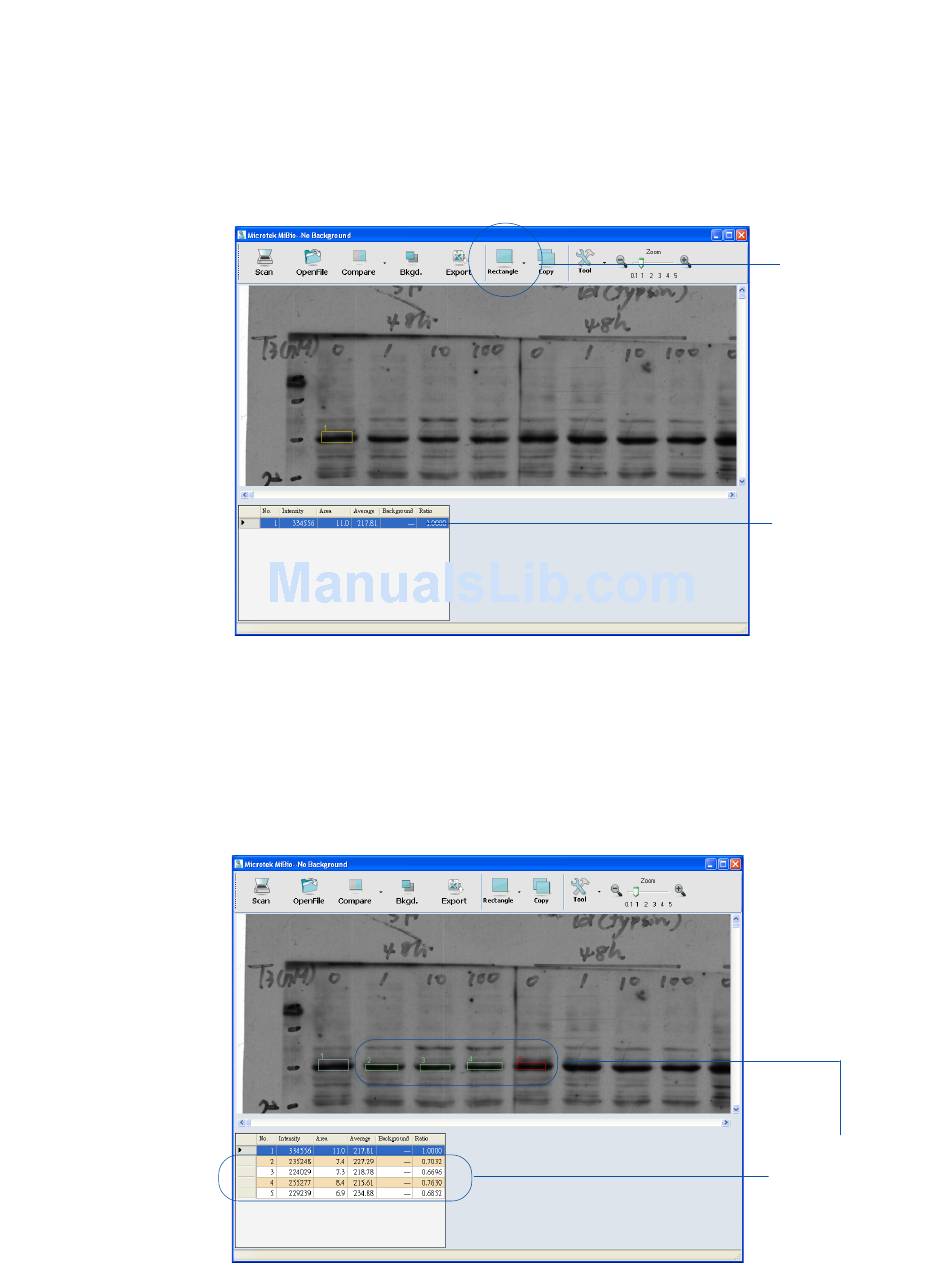

Use it to draw
a rectangle or
ellipse
The data of the
benchmark area
Corresponding
data to the
areas selected
on the image
