ZSC2201NSS with ZX2201NSS
GE Monogram

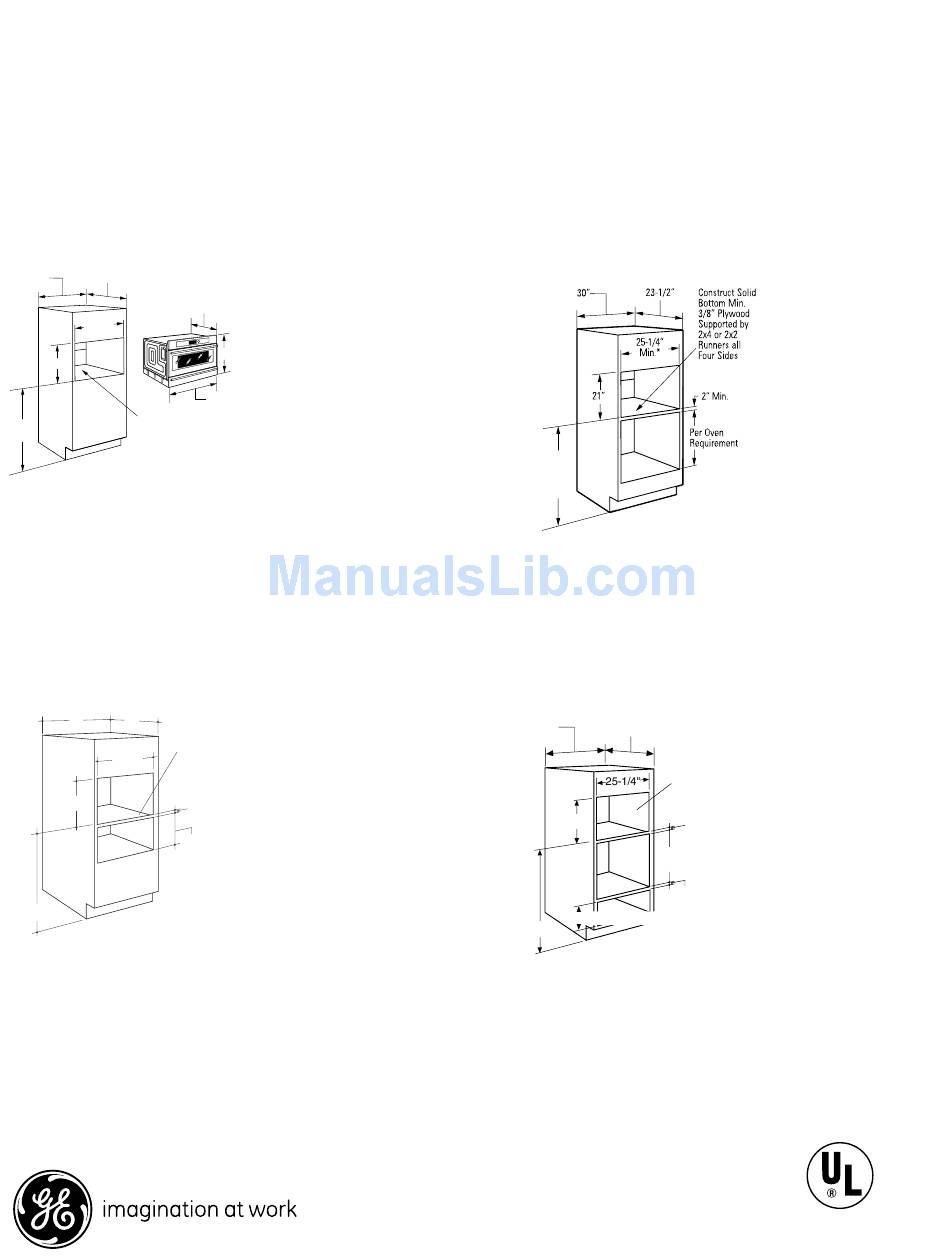

Dimensions and Installation Information (in inches)
ZSC2201NSS and ZX2201NSS Accessory - GE Monogram Built-in Advantium Oven and Accessory Drawer
Important: These installation cutouts include the ZX2201NSS accessory drawer.
ZSC2201NSS Advantium Installation with
Accessory Drawer
30"
23-1/2"
25-1/4"
Min.
21"
Construct
36-3/4" Base
Min. Min. 3/8"
Plywood
Supported
by 2x4 or 2x2
Runners all
Four Sides
• Maintain 36-3/4" minimum height from the floor to the
cutout in any single or combined installation.
• Allow 2-1/8" case trim overlap on the sides and 7/8" overlap
on the bottom. Allow 3/4" overlap at the top of the oven.
ZSC2201NSS Advantium and Accessory
Drawer Installed over a Monogram
Warming Drawer
23-1/2"
Construct Solid
30"
Bottom Min. 3/8"
Plywood
Supported by
25-1/4"
2 x 4 or 2 x 2
Runners all
Four Sides
21"
Per Warming
Drawer
Requirement
36-3/4" Min.
Additional clearances between the cutouts may be
required. Check to be sure the oven supports above the
warming drawer do not obstruct the required interior
depth and height. See warming drawer installation
instructions for details.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
Built-In Advantium
®
21-1/2"
Recessed
Depth
22-1/4"
29-3/4"
2" Min
GE Profile or
® ™
service,
®
Oven with Accessory Drawer
®
ZSC2201NSS Advantium and Accessory Drawer
Installed over a Monogram Oven
36-3/4"
Min.
45-1/4"
Recommended
Additional clearances between the cutouts may be required.
See oven installation instructions for details.
ZSC2201NSS Advantium and Accessory Drawer
Installed over a Monogram Oven and
Warming Drawer
30"
23-1/2"
21"
Per warming drawer requirement
45-1/4"
Additional clearances between the cutouts may
be required. See warming drawer and oven installation
instructions for details.
Specification Created 6/08
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2" Min.
Per Oven
Requirement
2" Min.
Listed by
Underwriters
Laboratories
