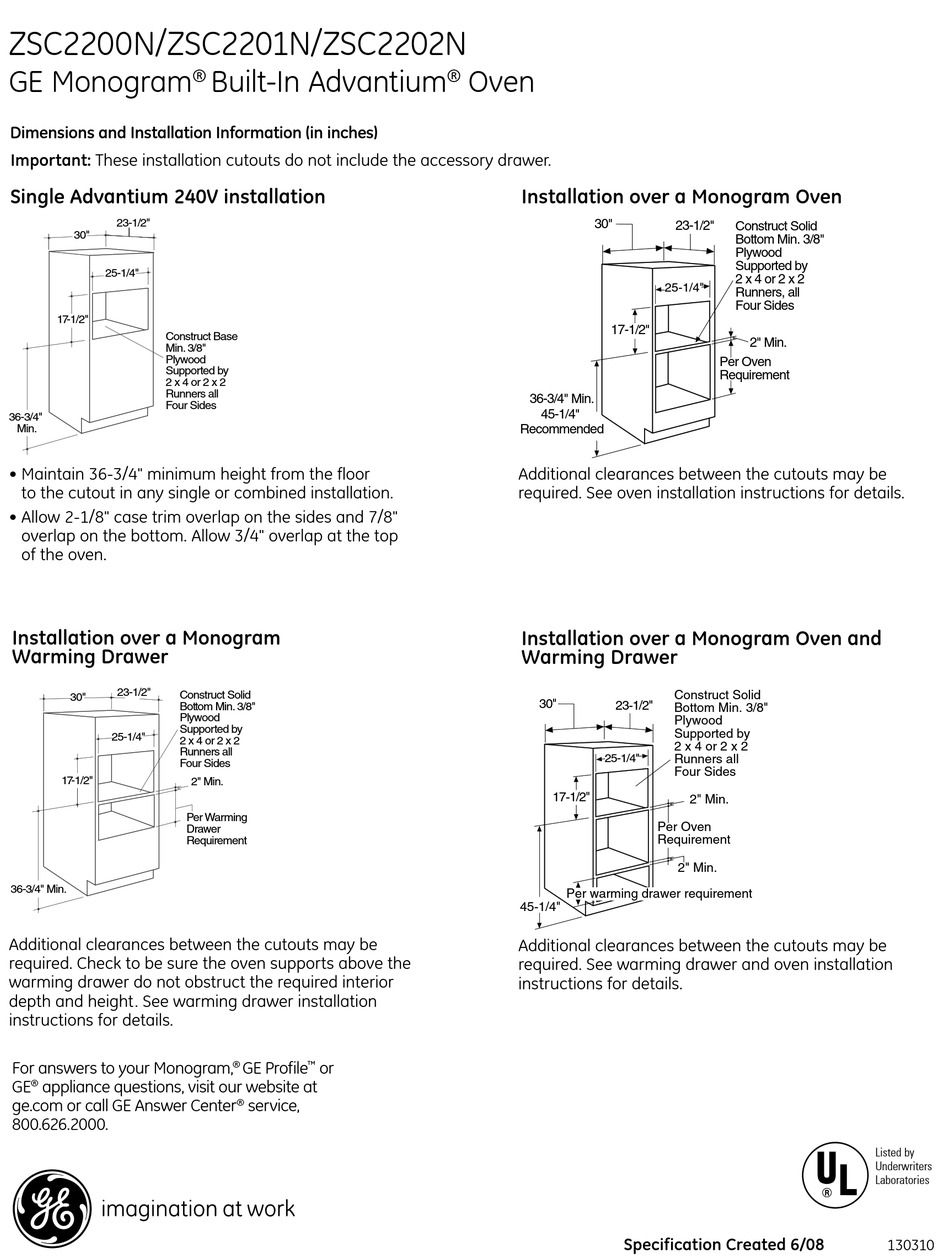

ZSC2200N/ZSC2201N/ZSC2202N
GE Monogram
Dimensions and Installation Information (in inches)
Important: These installation cutouts do not include the accessory drawer.
Single Advantium 240V installation
23-1/2"
30"
25-1/4"
17-1/2"
Construct Base
Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
36-3/4"
Min.
• Maintain 36-3/4" minimum height from the floor
to the cutout in any single or combined installation.
530Dia3
• Allow 2-1/8" case trim overlap on the sides and 7/8"
overlap on the bottom. Allow 3/4" overlap at the top
of the oven.
Installation over a Monogram
Warming Drawer
23-1/2"
Construct Solid
30"
Bottom Min. 3/8"
Plywood
Supported by
25-1/4"
2 x 4 or 2 x 2
Runners all
Four Sides
17-1/2"
Per Warming
Drawer
Requirement
36-3/4" Min.
Additional clearances between the cutouts may be
required. Check to be sure the oven supports above the
warming drawer do not obstruct the required interior
530Dia13
depth and height. See warming drawer installation
instructions for details.
For answers to your Monogram,
GE
appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
Built-In Advantium
®
2" Min.
GE Profile
or
®
™
service,
®
Oven
®
Installation over a Monogram Oven
30"
17-1/2"
36-3/4" Min.
45-1/4"
Recommended
Additional clearances between the cutouts may be
required. See oven installation instructions for details.
Installation over a Monogram Oven and
Warming Drawer
30"
23-1/2"
17-1/2"
Per warming drawer requirement
45-1/4"
Additional clearances between the cutouts may be
required. See warming drawer and oven installation
instructions for details.
Specification Created 6/08
23-1/2"
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners, all
Four Sides
2" Min.
Per Oven
Requirement
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 2 x 2
Runners all
Four Sides
2" Min.
Per Oven
Requirement
2" Min.
Listed by
Underwriters
Laboratories
130310
