PVM2070DM
GE Profile Spacemaker
™
Optional Accessories (Available at additional cost)
Hood Exhaust Duct: Outside ventilation requires a HOOD EXHAUST DUCT. Read the
following carefully.
Exhaust Connection: The hood exhaust has been designed to mate with a standard
3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than a 6" diameter duct.
Rear Exhaust: If a rear or horizontal exhaust is to be used, care should be taken to
align exhaust with space between studs, or wall should be prepared at the time it
is constructed by leaving enough space between the wall studs to accommodate
exhaust.
Maximum Duct Length: For satisfactory air movement, the total duct length of 3-1/4"
x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS: etc., present additional resistance to
airflow and are equivalent to a section of straight duct which is longer than their
actual physical size. When calculating the total duct length, add the equivalent length
of all transitions and adaptors plus the lengths of all straight duct sections. The chart
below shows the approximate feet of equivalent length of some typical ducts.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor
B. Wall Cap
C. 90° Elbow
D. 45° Elbow
E. 90° Elbow
F. 45° Elbow
G. Roof Cap
2.0 Cu. Ft. Over-the-Range Microwave Oven
®
5 ft.
40 ft.
10 ft.
5 ft.
25 ft.
5 ft.
24 ft.

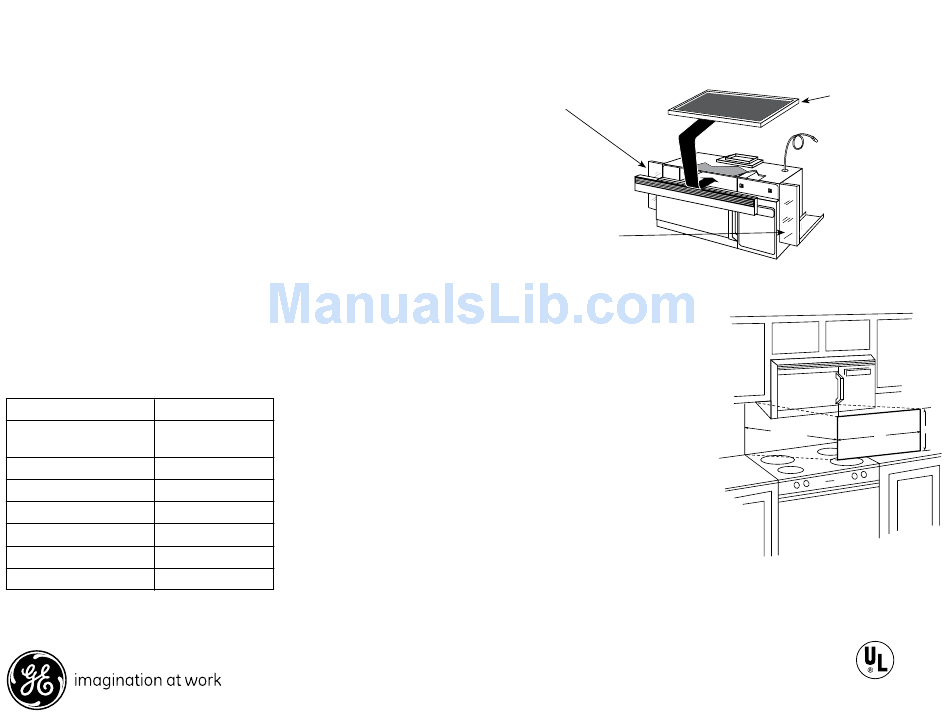

Filler Panel Kits
JX40CT-Bisque
JX41–Black
JX40WH–White
When replacing a 36" or
42" range hood, this kit fills
in the additional width to
provide a custom built-in
appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3"-wide filler panels. Two kits are
needed for a 42" opening.
JX22SS - Stainless Steel Decorative Panel
Kit When replacing a Hi/Low range with a
microwave/convection oven or Spacemaker
over a range model, this panel kit fills in the
area between the microwave and range left by
the H-Low model.
Filter Kits
JX81H–Recirculating
Charcoal Filter Kit
To be used when
the Spacemaker
microwave oven
cannot be vented
to the outside.
Decorative Panel Kits
3/8
depth 30
Specification Created 7/07
19
Listed by
Underwriters
Laboratories
240269
