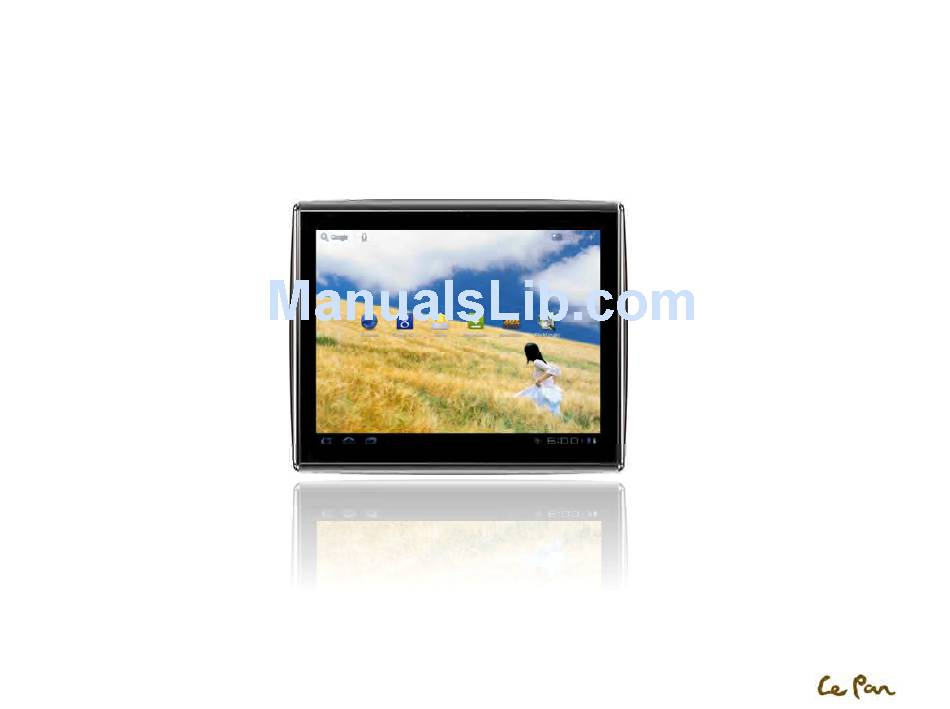

- Page 1 Le Pan II Tablet PC (Wi-Fi) User Manual...
-
Page 2: Table Of Contents
Table of Contents CH1. BEFORE GETTING STARTED ..........................- 1 - Care and Maintenance ........................... - 1 - CH2. GETTING TO KNOW YOUR TABLET ........................- 2 - Your Tablet ............................- 2 - In the Box............................... - 2 - Install the Storage Card .......................... - Page 3 CH4. SETTINGS ................................ - 12 - Change Basic Settings .......................... - 12 - Protect Your Tablet and Personal Data ....................- 14 - Manage Applications ........................... - 16 - Reset to Factory Defaults ........................- 16 - CH5. MESSAGING ..............................- 18 - Email ..............................
-
Page 4: Ch1. Before Getting Started
CH1. BEFORE GETTING STARTED Your tablet is a highly sophisticated electronic device. Please read this manual before using your tablet, battery, charger or any accessory. Care and Maintenance Keep your tablet and all its parts out of the reach of children. ... -
Page 5: Ch2. Getting To Know Your Tablet
CH2. GETTING TO KNOW YOUR TABLET Your Tablet 1. Headphone Jack 7. Power On/Off Button 2. 30 Pin Connector 8. Reset Button 3. Microphone 9. Camera 4. Micro SD Card Slot 10. Ambient Light Sensor 5. Volume Up/Down Button 11. Speaker 6. -
Page 6: Battery
Remove Micro SD Card Turn off the tablet or unmount the micro SD card: Go to Applications > Settings > Storage > Unmount SD Card. Push the micro SD card to eject it from the slot. Pull out the micro SD card from the slot. Battery Your tablet has an internal 6800 mAh rechargeable lithium-ion battery. -
Page 7: Headphone Jack
Headphone Jack For listening to music and watching videos, insert the headset into the headphone jack. Tablet Controls Headphone Jack Location Function Keys Touch the control keys on the screen to do the followings: Icons Function Text search Enter text in the box to search for matching content. Voice search Speak to search as prompted. -
Page 8: Get Around Your Tablet
Get Around Your Tablet There are different ways to navigate around the home screen, menus and applications on your tablet. You can also change the screen orientation of the tablet as well. Touch Touch application or other element with your finger to open or select them. Touch and hold Touch an item with your finger and do not release it until the tablet responds. -
Page 9: Ch3. Getting Started
CH3. GETTING STARTED Turn Your Tablet On / Off Turn On the Tablet Press the POWER key on the right side of the top of the tablet. Turn Off the Tablet Press and hold the POWER key until the options menu opens. On the options menu, touch the Power Off button to turn off the tablet. -
Page 10: Customize The Home Screen
Home Screen The Home screen is your starting point for using the applications on your tablet. You can customize the Home screen to display application icons, shortcuts, folders, and widgets. Extended Home Screen The Home screen extends beyond the screen width to provide more space for adding icons, widgets, and more. - Page 11 Add a Home Screen Item Press Home , then touch Select the item you want to add to the Home screen as prompted. **Tip: To quickly add an application shortcut from the Applications to the Home screen, touch and hold the desired application icon. When the tablet vibrates, locate the icon at any empty area on the Home screen.
-
Page 12: Status And Notifications
Status and Notifications Status Bar At the right down corner of the screen is the status area. Notifications such as Wi-Fi connection, battery, time and etc. will be displayed here. Touch the icon to open it. To go back, touch to return to the home screen. -
Page 13: Connect To Computer
If the “Install Driver” dialog box appears, please select the recommended way and finish the drive installation. Select Disc “Le Pan II” to review files in Tablet or transfer documents in between. Disconnect cable when it is finished. Driver Installation... -
Page 14: Create And Manage Contacts
Create and Manage Contacts View Contacts Press Home , touch Applications , and then touch Contacts Add Contacts In the Contacts, touch to add new contact. Enter the contact’s name and other contact information such as phone number, email address, home address, etc. Touch Add another field to input more information. -
Page 15: Ch4. Settings
CH4. SETTINGS Change Basic Settings Press Home , touch to open the Applications and then select Settings Set Date, Time Zone and Time By default, your tablet automatically uses the network-provided date, time zone, and time. Manually Adjust Date, Time Zone, and Time: Set Date Dialogue Press Home , touch to open the Applications... - Page 16 Adjust Screen Timeout: After a period of inactivity, the tablet screen turns off to conserve battery power. To change the default settings: Press Home , then touch to open the Applications then select Settings Touch Screen then touch Brightness. Select Screen Timeout. Touch the period of the screen turns off. Set Automatic Screen Rotation: By default, the screen rotates automatically depending on how you hold the tablet.
-
Page 17: Protect Your Tablet And Personal Data
Language Settings You can change the operating system language of the tablet. Change the Language of the Operating System: Press Home , then touch to open the Applications then select Settings Touch Language & Input > Select language and then select the language you want to use. Sync Your Data Sync with Google Service via the Internet: Press Home... -
Page 18: Device Storage
Lock the Screen: Press the POWER key to turn off the display. The screen will be locked automatically. **Note: To unlock the screen, slide the “Unlock” icon to left to unlock the screen. Create and Enable a Screen Unlock Pattern: You can increase the security of your tablet by creating a screen unlock pattern. -
Page 19: Manage Applications
Manage Applications Clear Application Cache and Data: Press Home , then touch to open the Applications then select Settings > Applications > Manage applications. In the Manage applications list, touch the application which has cache and/or data you want to delete. Uninstall Applications: Press Home , then touch to open the Applications... - Page 20 Warning! A factory data reset will erase your Google account information, system and application data and settings, and downloaded applications. Remember to back up any important data before resetting. Force Reboot: If your tablet does not response, press the reset button at the back of tablet for a few seconds to force reboot.
-
Page 21: Ch5. Messaging
CH5. MESSAGING Email Your tablet comes with an email wizard that lets you add external POP3 or IMAP email accounts from popular web-based email service providers such as Hotmail, Gmail, Yahoo!® Mail Plus, AOL, and more. Set Up Email Home >... -
Page 22: Gmail
Delete an Email In the email account inbox, touch and hold the email you want to delete. On the options menu, touch Delete. Edit or Delete an External Email Account Press Home , then touch Email Do one of the followings: ... -
Page 23: Ch6. Connecting
CH6. CONNECTING Connect to the Internet Your tablet’s networking capabilities allow you to access the Internet through Wi-Fi. Wi-Fi To use the Wi-Fi function, you would need to access a wireless access point or hotspot. Turn on Wi-Fi and Connect to an Access Point Press Applications , press Settings , and then press Wireless &... -
Page 24: View Web Pages
Check Network Status Press , and then touch Settings Touch Wireless & networks, go to Wi-Fi Settings and touch the specific access point you have linked. The status of network will be displayed. View Web Pages Your tablet’s browser offers a host of features that let you view web pages just like on a desktop computer. Change the Screen Orientation to Landscape View: Turn your tablet sideways to view the web page in landscape mode. - Page 25 Go to a Web Page Open Browser. Enter a web address or touch and speak a web address. Click to go to that website. After opening the website, flick up or down to browse the webpage. . Navigate on a Web Page Slide your finger on the screen in any direction to navigate and view other areas of the web page.
-
Page 26: Browser Settings
Find Text Within a Web Page Click Option at the top of the screen and select Find on page. Enter the search item. As you enter characters, matching characters will be highlighted in green. Touch the left or right arrow to go to the previous or next matching item. -
Page 27: Manage Bookmarks
Manage Bookmarks Your tablet allows you to store as many bookmarks as you want. Two different views are supported: Thumbnail & List view. Bookmarks can also be copied from a Chrome browser on your PC to your tablet. This add-on feature will need to be installed on your Chrome browser on your Bookmark a Web Page: to add the web address as a bookmark. -
Page 28: Ch7. Multimedia
CH7. MULTIMEDIA Camera Your tablet has a front 2-megapixel camera which allows you to capture pictures and record videos. Turn On the Camera Press Home , then touch the Applications Select Camera . The screen automatically switches to landscape orientation when you access the Camera. **Tip: You can easily switch to the other capture mode while you are in Camera. -
Page 29: Viewing, Sharing, And Editing Pictures
Record a Video After Capturing a Photo or Video: After capturing a photo or video, the image will appear in the Preview/Zoom screen at the upper right corner. Simply touch the Preview/Zoom screen and go to the Gallery to share the picture or video. Viewing, Sharing, and Editing Pictures After you have taken a picture, you can view it, edit it, or share it with friends through email or messaging (SMS). - Page 30 Manage Picture Gallery: While in the Gallery screen, touch and hold any album to manage folder. Close Picture Gallery: While in the Gallery screen, press Home or RETURN to close the application. **Note: If you open Gallery from the Camera application, the screen returns to the Camera screen when you press RETURN View a Picture: ...
-
Page 31: Watch And Share Video
Send a Picture Using Email or Messaging: While viewing a picture in full screen, touch the screen, and then touch Share When prompted, touch Email or Messaging. The picture is automatically attached to your email or message. Compose your message, and then touch Send. - Page 32 Play Music: Touch a song to play it. **Notes: Press the Volume key to adjust the playback volume. Set Playlists Use a playlist to organize your music files. You can create as many playlists as you want on your tablet. Create a Playlist: On the Music library screen, touch the icon on the left upper corner, select Songs.
-
Page 33: Limited Warranty
PARTS: If service is being performed by a Le Pan technician, the cost of parts is covered for up to one (1) year from the date of purchase. Le Pan will not repair or replace defective parts unless the work is performed by a La Pan technician. Proof of purchase in the form of a bill of sale, receipt or an invoice must be provided at the time service is requested in order to receive warranty service.
