Lasko 1150 Instructions

TROUBLE SHOOTING GUIDE

TROUBLE PROBABLE CAUSE
Fan not working or • No power
Humidifier doesn't
turn on • Humidistat not set correctly
• Top of Humidifier not seated properly
on Base (Unit is equipped with an
automatic shut off)
• Filter Holder not assembled properly
or is missing (Unit is equipped with an
automatic shut off)
Water leaking • Base is overfilled
• Filter is old and dirty
Foul odor • Filter needs to be replaced
• Base needs to be cleaned
• Whole Humidifier needs cleaning
Filter discoloration • Mineral deposits in water
Water discoloration • Humidifier needs to be cleaned
• Hard water - Iron in water
• Some humidifier additives can cause
discoloration
Lights do not work:
Humidistat Light Off, • Humidity is not yet achieved in room
Power Light On
Power Light Off, • Room has reached desired
Humidistat Light On Humidity level
No water show • No water in Unit
• Hose not connected to Pump
• Hose not connected to Water Show

LIMITED WARRANTY

SHOULD ACCESSORY PARTS BE NEEDED, CONTACT THE
MANUFACTURER FOR IN-WARRANTY REPLACEMENT PARTS. A
COPY OF PROOF-OF-PURCHASE MUST BE INCLUDED ALONG
WITH THE TYPE AND STYLE, WHICH IS LOCATED ON THE
BOTTOM OF YOUR APPLIANCE.
This product is warranted for one year from the date of original
purchase against defects in workmanship and/or materials. At our
option, parts that prove to be defective will either be repaired or
replaced or the whole product will be replaced.
Should electrical or mechanical repair become necessary during
the warranty period, send your complete product, postage or freight
prepaid to the nearest service center. Call the number below for the
service station nearest you.
Should a part need replacement, you must give us the type and style
of your appliance. You will find this at the bottom of the appliance.
In either case, a copy of your proof of purchase is requested.
This warranty does not apply if the damage occurs because of
accident, improper handling or operation, shipping damage,
abuse, misuse, unauthorized repairs made or attempted, or the use
of the product for commercial service.
ALL WARRANTIES, EXPRESSED OR IMPLIED, LAST FOR ONE
YEAR FROM THE DATE OF ORIGINAL PURCHASE. THIS WAR-
RANTY DOES NOT COVER LIABILITY FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES FOR ANY CAUSE WHATSOEVER.
New 3/01
SOLUTION
Make sure Unit is plugged in
Check that the Power Switch is On
Set Humidistat to higher humidity level
Make sure top is properly seated on Base
Make sure Filter Holder is seated in place
Reduce water level in Base
Replace Filter
Replace Filter
Follow Instructions in CLEANING section
Follow Instructions in CLEANING section
Replace Filter
Follow Instructions in CLEANING section
Use filtered or distilled water
Allow Humidifier to continue running
Set Humidity Knob for more Humidity
Refill Unit
Connect Hose to Pump
Connect Hose to Water Show
Some states do not allow limitations on how long any implied
warranty lasts, or the exclusion or limitation of incidental or
consequential damages, so that the above limitations and exclusions
may not apply to you. This warranty gives you specific legal rights.
You may also have other rights which vary from state to state.
FOR PARTS:
For Replacement Parts or Filters please call 1-800-966-2028,
MONDAY - FRIDAY, BETWEEN the HOURS of 8 AM and 4 PM
EST. "PLEASE DO NOT RETURN PRODUCT TO PLACE OF
PURCHASE." Reference the type and style of product (located
on the underside of the product) when you call.
FOR TECHNICAL ASSISTANCE and
SERVICE CENTER LOCATIONS:
For any questions, comments or the location of your nearest
service center, PLEASE CALL OUR TOLL-FREE "HOTLINE" AT
1-800-233-0268, MONDAY - FRIDAY, BETWEEN the HOURS
of 8 AM and 5 PM EST. Please reference product name and
model number when you call.
Appliance Service Dept. • 300 Confederate Drive
Franklin, TN 37065-0569
PLEASE DO NOT SEND PRODUCT TO THIS LOCATION!
4
TM
Innovators in Home Comfort

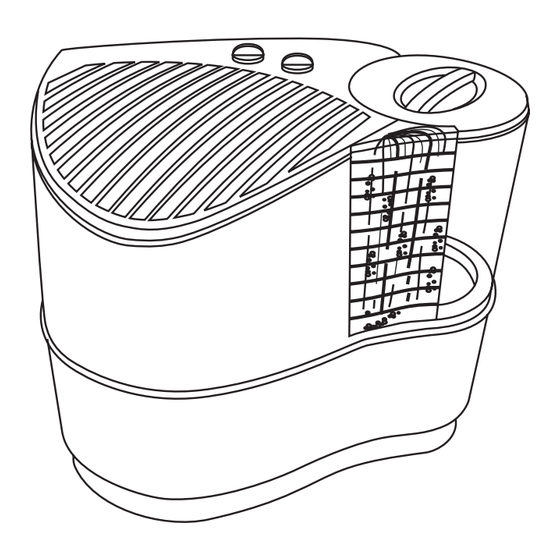

EVAPORATIVE
EVAPORATIVE
RECIRCULATING CONSOLE HUMIDIFIER

IMPORTANT SAFETY INSTRUCTIONS

READ AND SAVE THESE INSTRUCTIONS
Congratulations on your purchase of the evaporative High
Performance Recirculating Humidifier. Featuring the unique
use of pump driven water circulation, this unit provides ex-
clusive features that no other humidifiers offer.
IMPORTANT INFORMATION and FEATURES
Your Recirculating Console Humidifier is an EVAPORATIVE TYPE
HUMIDIFIER. This means that the air being drawn through the
moistened filter naturally evaporates the water and disperses
INVISIBLE MOISTURE into the air. This type of humidifier DOES
NOT PRODUCE MIST, WATER DROPLETS, STEAM OR EXCESSIVE
CONDENSATION associated with other types of humidifiers.
EXCESSIVE HUMIDITY CAN OFTEN LEAD TO UNANTICI-
PATED PROBLEMS. Air containing water droplets or mist can
create a good habitat for the growth of mold and mildew.
Misting units often oversaturate the air, while the Lasko
Recirculating Console Humidifier reaches a maximum humidity
output level without oversaturating. With a properly operating
Evaporative Humidifier, the evaporation rate increases naturally
when the air is dry. When the humidity in your home is high,
moisture output automatically decreases to help prevent
damaging condensation.
The Watershow Viewing Window provides a visible way for you
to know that your Recirculating Console Humidifier is operating.
As air passes through the filter, the humidity in the room will
increase, and the water level in the Unit will begin to decrease.
Unlike misting humidifiers, the Evaporative Filter in your
Recirculating Console Humidifier also traps unwanted minerals
that reside in normal tap water. This filtering also assures there is
NO WHITE DUST dispersed into the air.
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, especially where children are
present, basic precautions should always be followed in order to
reduce the risk of fire, electric shock and injury to persons.
Including the following:
1. To prevent possible electrical shock, always turn the unit
off and unplug before filling, servicing or moving.
2. Always place Humidifier on a stable, flat, level surface. Locate
Power Cord so the Humidifier or other objects are not resting
on it. Keep the Cord away from room traffic.
DO NOT pour water into Grill. DO NOT spill water on Control Panel.
Water should only be poured into the Unit using the Jug.
2084151 New 3/01
HIGH PERFORMANCE
HIGH PERFORMANCE
Model 1150
3. Do not place Humidifier near a heat source such as stoves,
radiators or heaters.
4. This appliance is equipped with a polarized plug (one prong is
wider than the other). To reduce the risk of electrical shock, this
plug is designed to fit in a polarized outlet only one way. If plug
does not fit, contact a qualified electrician. Do not attempt to
defeat this safety feature.
5. Never tilt or attempt to move the Humidifier while it is operating.
6. Always direct air flow away from walls or furniture as excessive
moisture may cause damage.
7. Humidifiers require regular cleaning to maintain proper operating
conditions. Refer to CLEANING section for proper cleaning
procedures.
NOTE: A few droplets of water may be present in your humidifier
as a result of our quality testing prior to packaging and shipment.

ASSEMBLY

CAUTION: DO NOT fill
unit before assembling.
1. Remove Water Jug then,
Upper Housing from
base of Unit. (Figure 1)
2. Lay base of Unit on its
side so the bottom of the
unit is facing you.
Figure 2
Hole
Castor
1
Figure 1
Water Jug
Upper Housing
Base
3. Fully insert the four Castors into
the Holes in the bottom of the
Unit. (Figure 2)
4. Replace Upper Housing, then
Water Jug into Unit.
2084151
