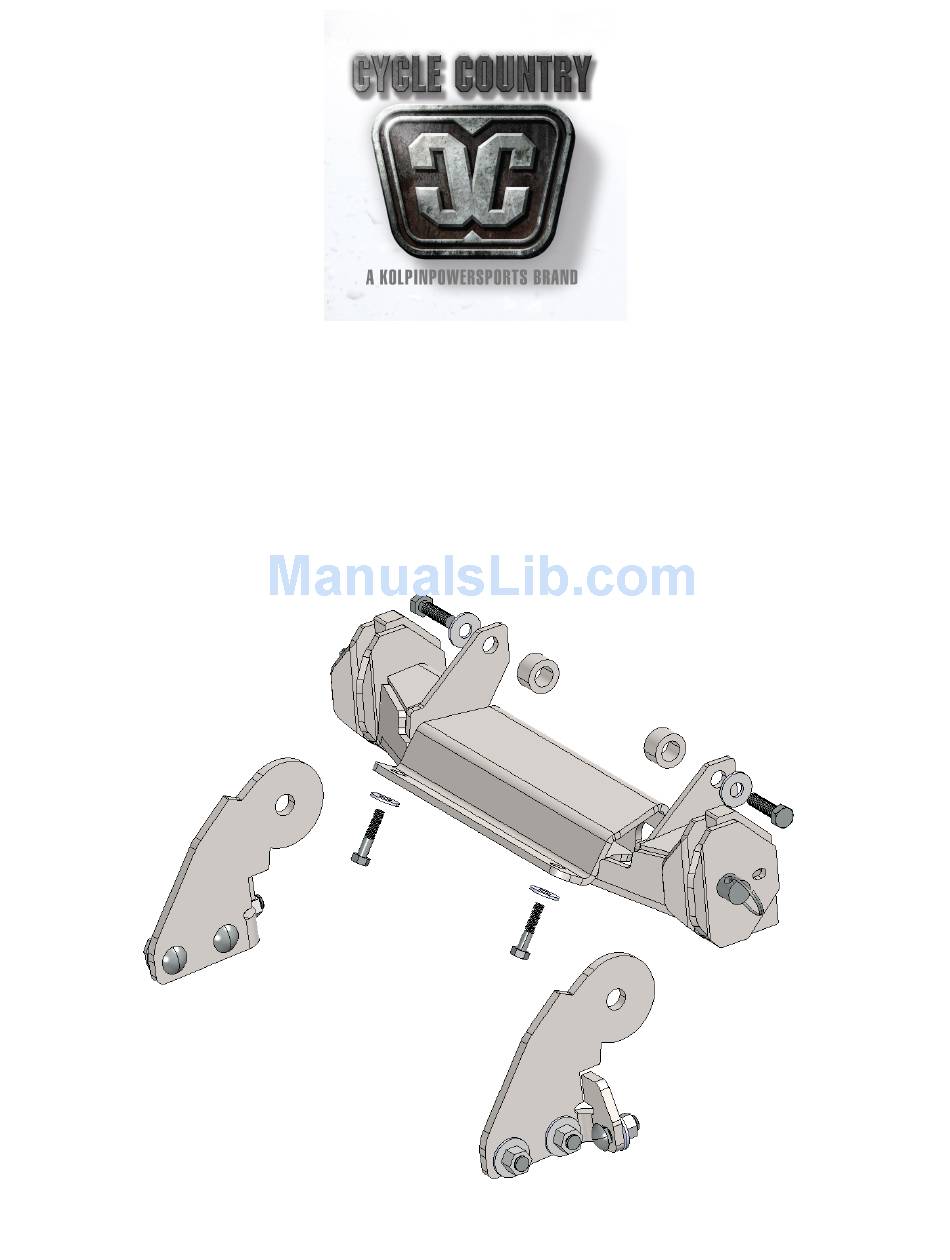

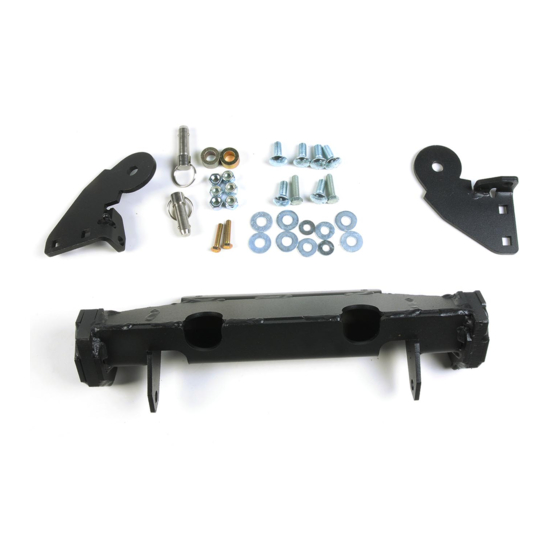

- Page 1 ATV WP2 FRONT MOUNT KIT For YAMAHA Grizzly 350/450/450 IRS (Non-EPS models) ASSEMBLY / OWNER’S MANUAL Part No: 16-5020 MAN0410 Rev. 01 © 2011 Cycle Country...
-
Page 2: Operating Instructions
SAFETY INFORMATION Cycle Country plow systems were designed with your safety in mind. In order to protect you and your vehicle, certain parts of the plow system and/or hardware are designed to fail when the equipment is over-stressed. - Page 3 PARTS ORDERING INFORMATION: Replacement fasteners are common-type and can be purchased locally. Use minimum class 8.8 zinc-coated fasteners. © 2011 Cycle Country...
-
Page 4: Installation Notes
All directions referring to right and left are when the rider is sitting on the machine INSTALLATION NOTES: NOTICE 16-5020 is not compatible with Yamaha Grizzly EPS models (power steering) Modification to the left and right side of the plastic guard is required to complete the installation ... - Page 5 5. Torque fasteners to specification. FASTENER TORQUE: Item #8 - 17 ft. lbs. (23 Nm) Remove material from the Item #9 - 8 ft. lbs. (11 Nm) shaded area as shown on each side as required ILL. 4 © 2011 Cycle Country...
- Page 6 Place the assembled left and right brackets into the mount as shown. Verify they are seated properly. Insert quick- release pins, Item #4 into the holes. See Illustration 6. To remove the push tube, reverse the procedure. ILL. 6 © 2011 Cycle Country...
- Page 7 One Year Limited Warranty For the period of one (1) year from the purchase date, Cycle Country (a Kolpin Powersports Brand) will replace for the original purchaser, free of charge, any part or parts found upon examination by Cycle Country to be defective in material, workmanship, or both.
