GE Profile PTD915SMSS Dimensions And Installation Information

PTD915SM
GE Profile 30" Warming Drawer
™

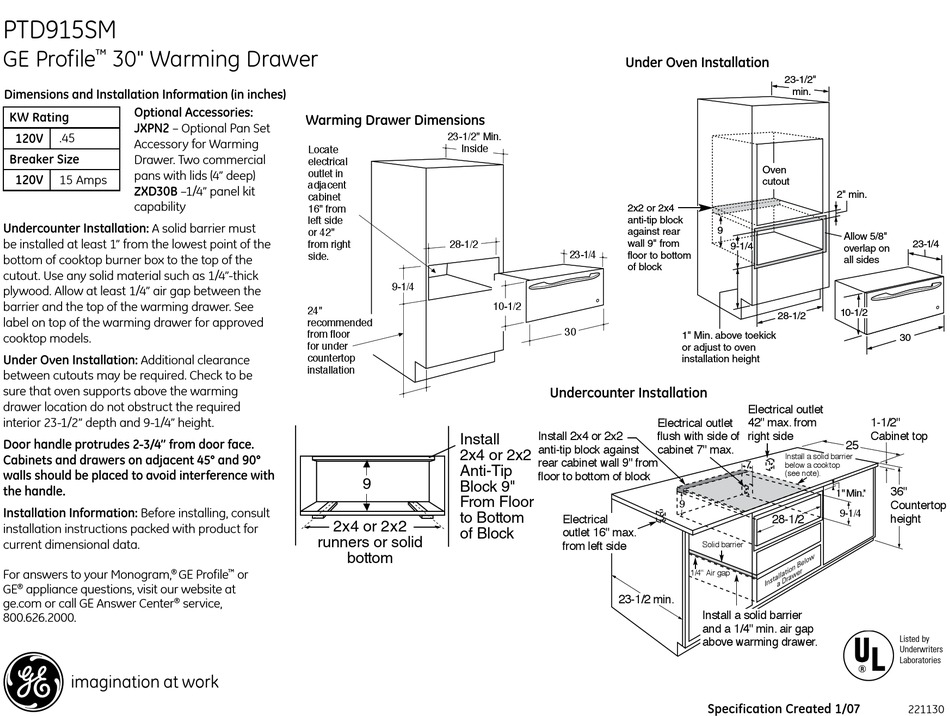

Dimensions and Installation Information (in inches)
Optional Accessories:
KW Rating
JXPN2 – Optional Pan Set
120V .45
Accessory for Warming
Breaker Size
Drawer. Two commercial
pans with lids (4" deep)
120V 15 Amps
ZXD30B –1/4" panel kit
capability
Undercounter Installation: A solid barrier must
be installed at least 1" from the lowest point of the
bottom of cooktop burner box to the top of the
cutout. Use any solid material such as 1/4"-thick
plywood. Allow at least 1/4" air gap between the
barrier and the top of the warming drawer. See
label on top of the warming drawer for approved
cooktop models.
Under Oven Installation: Additional clearance
between cutouts may be required. Check to be
sure that oven supports above the warming
drawer location do not obstruct the required
interior 23-1/2" depth and 9-1/4" height.
Door handle protrudes 2-3/4" from door face.
Cabinets and drawers on adjacent 45° and 90°
walls should be placed to avoid interference with
the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram, GE Profile
®
GE ® appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
Warming Drawer Dimensions
Locate
electrical
outlet in
adjacent
cabinet
16" from
left side
or 42"
from right
side.
24"
recommended
from floor
for under
countertop
installation
9
2x4 or 2x2
runners or solid
bottom
or
™
service,
353Dia4
23-1/2" Min.
Inside
28-1/2
23-1/4
9-1/4
10-1/2
30
Undercounter Installation
Install 2x4 or 2x2
Install
anti-tip block against
2x4 or 2x2
rear cabinet wall 9" from
Anti-Tip
floor to bottom of block
Block 9"
From Floor
to Bottom
Electrical
outlet 16" max.
of Block
from left side
298Dia1
Under Oven Installation
23-1/2"
min.
Oven
cutout
2x2 or 2x4
anti-tip block
9
against rear
wall 9" from
9-1/4
floor to bottom
of block
28-1/2
1" Min. above toekick
or adjust to oven
installation height
Electrical outlet
Electrical outlet 42" max. from
flush with side of right side
cabinet 7" max.
Install a solid barrier
7
below a cooktop
23-1/2"
(see note).
min.
9
28-1/2
Solid barrier
Oven
1/4" Air gap
cutout
23-1/2 min.
Install a solid barrier
and a 1/4" min. air gap
2x2 or 2x4
above warming drawer.
anti-tip block
9
against rear
wall 9" from
9-1/4
floor to bottom
of block
A
Specification Created 1/07
1" Min. above toekick
2" min.
Allow 5/8"
23-1/4
overlap on
all sides
10-1/2
30
1-1/2"
Cabinet top
25
36"
1" Min. *
Countertop
9-1/4
height
Allow 5/8" overlap
on all sides
2" min.
23-1/4
Listed by
Underwriters
Laboratories
10-1/2
221130
