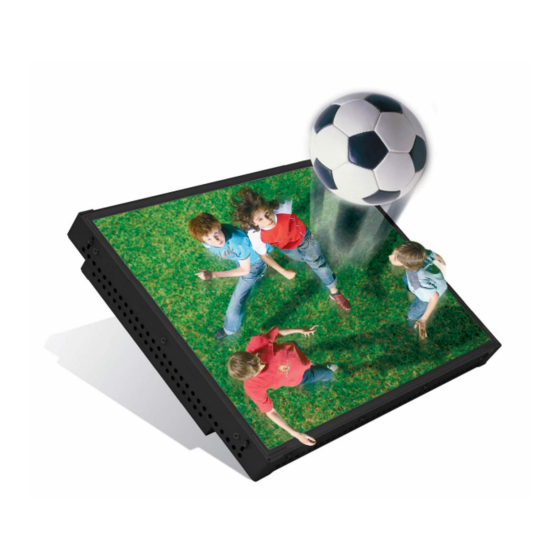

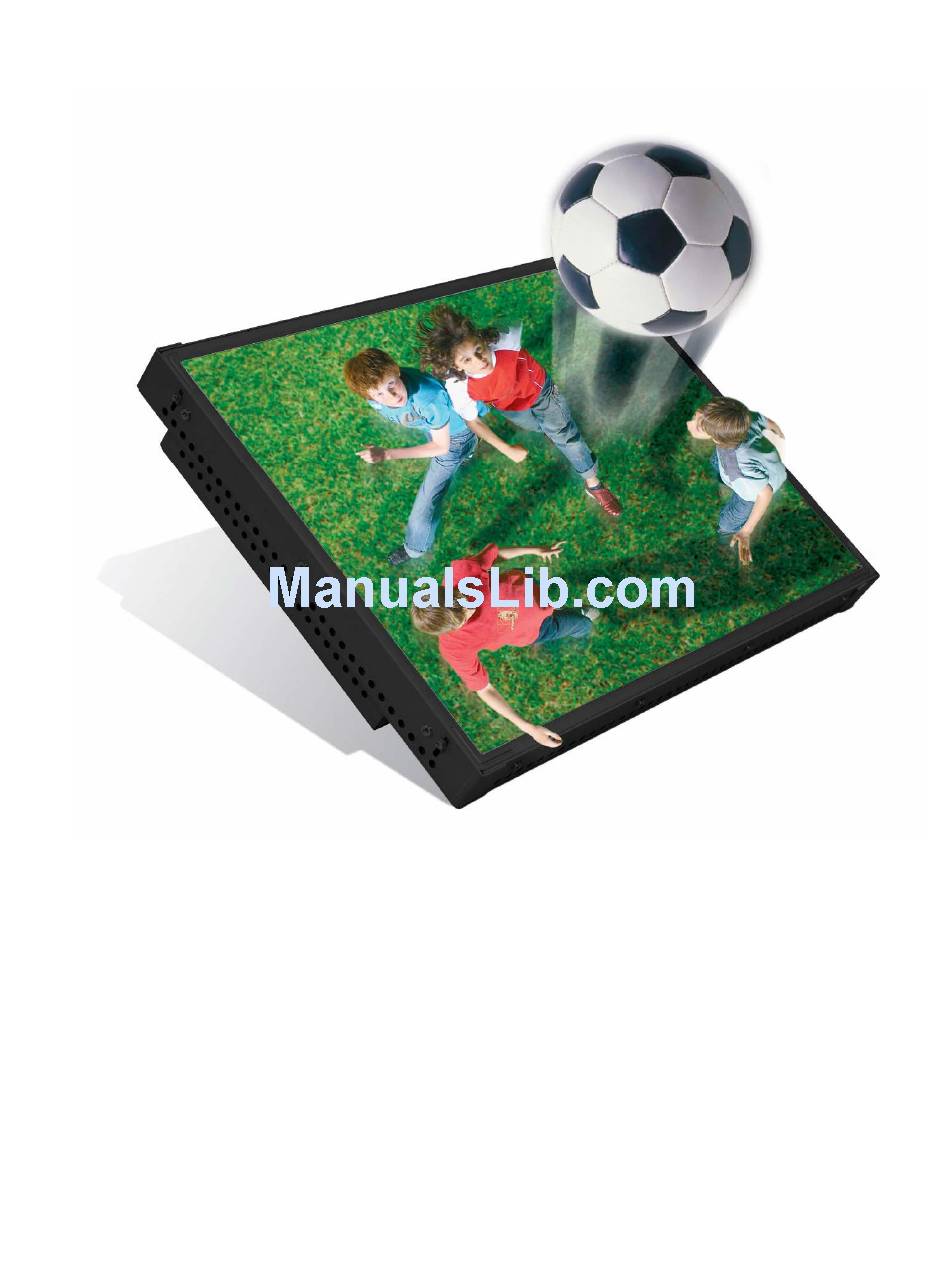

- Page 1 20-inch 3D-Intelligent Display 20-3D2W01/00 20-3D2W04/00 User Manual Philips 3D Solutions...
- Page 2 Electrical Safety Warnings Warning this is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This display is supplied with a 3-wire power cord. Under no circumstances should the earth wire be disconnected.
-
Page 3: Safety Precautions
Safety precautions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Date 01 April 2009 Security The attached material and the information contained herein are proprietary to Philips 3D Solutions. Copying, reproduction, adaptation, modification or dissemination in whole or part is not permitted without written permission from Philips 3D Solutions. Contact...
-
Page 5: Table Of Contents
Fitting the Cosmetic front ............................12 3.7 Connecting the display ............................12 4 Cleaning instructions ................................ 13 4.1 Cleaning models 20-3D2W01/00 and 20-3D2W04/00 ................13 5 Software installation ................................14 5.1 Minimum PC requirements ..........................14 5.2 Prepare PC ................................. 14 ... -
Page 6: Introduction
The display’s 2D-plus-depth rendering interface allows maximum flexibility. The 20-inch display provides full compatibility with all other 3D displays in the product range of Philips 3D Solutions. No matter what sort of Philips 3D Solutions display is used, the content does not need regeneration again. -
Page 7: Product Features
Two modes: • 3D rendering mode • 2D transparent mode with picture quality improvement filter Connectivity o Display control via DDC/CI channel; no additional RS232 cable needed o AC switch 01 April 2009 ©2009 Philips Electronics Nederland B.V. 7 of 22... -
Page 8: Technical Aspects And Details
20 % to 80 % System MTBF 50K hrs Mounting angle 0 – 68° from vertical Interface Video Connector DVI-D single link Voltage 100 V 60Hz / 230 V 50 Hz 01 April 2009 8 of 22 ©2009 Philips Electronics Nederland B.V. -
Page 9: Video Input
20” Display User Manual 3D Solutions Video input Philips 3D Solutions is not responsible for a poor performance due to a not optimal signal input according to display timing recommendations in the table below: Advanced Timing Horizontal pixels Front porch... -
Page 10: Scope Of Supply, Set Up And Mounting
User manuals of the software tools • 3D Sample content The desktop model (20-3D2W04/00) consists of the frame mount box (20-3D2W01/00), table stand box and accessories box. Safety precautions Read and follow these instructions when connecting and using your computer display. These instructions are additions to the safety instructions on the start of this manual. -
Page 11: Installation Locations
Use only the table stand provided with the set, making sure that the fixings are properly tightened. Avoid using other table stands as they have not been tested in combination with the weight of the display. 01 April 2009 ©2009 Philips Electronics Nederland B.V. 11 of 22... -
Page 12: Fitting The Cosmetic Front
DVI standard (see reference to DVI standard in section 10). Make sure the PC and Display are switched off! 1. Connect the PC via the DVI cable to the DVI connecter. 2. Connect the power cord. 01 April 2009 12 of 22 ©2009 Philips Electronics Nederland B.V. -
Page 13: Cleaning Instructions
CAUTION: Using the wrong instructions might damage (parts of) the intelligent display. Note that isopropyl alcohol causes damage. Cleaning models 20-3D2W01/00 and 20-3D2W04/00 Before cleaning the display, disconnect the power cord and DVI cable. It is preferable to clean the front of the display with the cleaning products listed in the table below. -
Page 14: Software Installation
Make sure that the following software is installed on the PC before connecting the 3D Display to the PC: o Windows XP, upgraded to Service Pack 2 o NVIDIA Display driver 01 April 2009 14 of 22 ©2009 Philips Electronics Nederland B.V. -
Page 15: Approbations
FCC part 15B: 2004-10 Class A ANSI C63.4: 2001; 2003 CB Certificate IEC 60950-1: 2001 (1 edition) IEC 61000-3-2: 2000-08; A1: 2001-08; A2: 2004-10 IEC 61000-3-3: 1994-12; A1: 2001-01 Australia C-tick 01 April 2009 ©2009 Philips Electronics Nederland B.V. 15 of 22... -
Page 16: Environmental
20 % - 80 % 0% - 95 % No condensation No condensation Air pressure 600 – 1100 mBar 300 – 1100 mBar The display is designed for indoor usage only. 01 April 2009 16 of 22 ©2009 Philips Electronics Nederland B.V. -
Page 17: Interfaces
No connect Hot Plug Detect T.M.D.S. Clock- The DDC Clock and the DDC data are used by the Display Control Tool to control depth and colour settings in the display. 01 April 2009 ©2009 Philips Electronics Nederland B.V. 17 of 22... -
Page 18: Trademarks, Copyrights And Disclaimer
3D Solutions 9 Trademarks, Copyrights and disclaimer Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. 2009 © Koninklijke Philips Electronics N.V. All rights reserved. 01 April 2009 18 of 22... -
Page 19: References
February 9, 2000 ITU-R BT.709.4; Parameter values for HDTV standards for production and international programme exchange; VESA Flat Display Mounting Interface Standard (FDMI); Version 1, Revision 1; January 16, 2006; 01 April 2009 ©2009 Philips Electronics Nederland B.V. 19 of 22... -
Page 20: Technical Drawings
20” 3D Display User Manual 3D Solutions 11 Technical drawings For integration purposes the following drawings are added for your convenience. 01 April 2009 20 of 22 ©2009 Philips Electronics Nederland B.V. - Page 21 20” Display User Manual 3D Solutions 01 April 2009 ©2009 Philips Electronics Nederland B.V. 21 of 22...
- Page 22 20” 3D Display User Manual 3D Solutions 01 April 2009 22 of 22 ©2009 Philips Electronics Nederland B.V.
