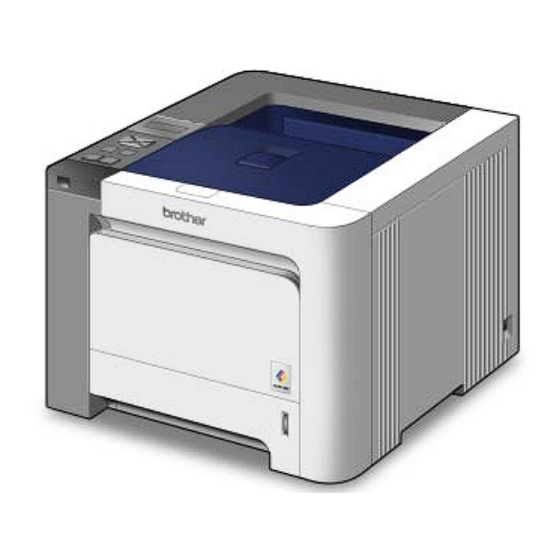

Brother HL-4040CDN - Color Laser Printer Parts Reference List

Color laser printer
Hide thumbs Also See for HL-4040CDN - Color Laser Printer:
Table of Contents

Advertisement

Quick Links

See also: User Manual , Service Reference Manual
Brother Color Laser Printer

PARTS REFERENCE LIST

MODEL: HL-4040CN/4040CDN/
Read this list thoroughly before maintenance work.
Keep this list in a convenient place for quick and easy reference at all times.
January 2007
PL-PRN100
4050CDN/4070CDW

Advertisement

Table of Contents
loading

Related Manuals for Brother HL-4040CDN - Color Laser Printer

Summary of Contents for Brother HL-4040CDN - Color Laser Printer

  • Page 1: Parts Reference List

    Brother Color Laser Printer PARTS REFERENCE LIST MODEL: HL-4040CN/4040CDN/ 4050CDN/4070CDW Read this list thoroughly before maintenance work. Keep this list in a convenient place for quick and easy reference at all times. January 2007 PL-PRN100...
  • Page 2 NOTE FOR USING THIS PARTS REFERENCE LIST 1. In the case of ordering parts, it is necessary to mention the following items: (1) Code (2) Q'ty (3) Description (4) Symbol (PCB No. etc.) <Example> REF.NO. CODE Q’TY DESCRIPTION SYMBOL REMARK Revision No.: marked on the main printed circuit board (Main PCB) B48K056...
  • Page 3 COUNTRIES AND AREAS AP: Asia Pacific GULF: Gulf ARG: Argentina HOL (NL): Holland (Netherlands) ARL: Australia IBERIA: Spain/Portugal BEL: Belgium ISR: Israel BRZ: Brazil ITA: Italy CAN: Canada NZ: New Zealand CHL: Chile PAN-NOR: Norway/Finland/Denmark/Sweden CHN: China RUS: Russia EEU: EEU GENERAL SAF: South Africa (Bulgaria/Czech/Hungary/Poland/Romania/ SGP: Singapore...

  • Page 4: Table Of Contents

    CONTENTS FRAME UNIT..................1 DRIVE ....................3 LASER UNIT ..................5 PAPER FEEDER .................. 7 MP UNIT ....................9 DX ....................... 11 PAPER TRAY ..................13 FUSER UNIT ..................15 PAPER EJECT ................... 17 10. COVERS&LABELS ................19 11. MAIN PCB ..................21 12.

  • Page 5: Frame Unit

    1. FRAME UNIT REF No. CODE Q'TY DESCRIPTION REMARKS LR0402001 NEW TONER ACTUATOR LR0403001 NEW TONER ACTUATOR SPRING UH2208001 RUBBER FOOT LM9189001 DEVELOP RELEASE SENSOR PCB ASSY LM9210001 TONER LED PCB ASSY LR1094001 LED HOLDER LM9211001 TONER SENSOR PCB ASSY K (TE/NEW) LM9334001 TONER SENSOR PCB ASSY Y (TE/NEW) LM9335001...
  • Page 6 1. FRAME UNIT 13-1 13-1 12-1 12-2 - 2 -...

  • Page 7: Drive

    2. DRIVE REF No. CODE Q'TY DESCRIPTION REMARKS CLEANER DRIVE LR1246001 DRIVE FRAME UNIT ASSY A1-1 LR0440001 PAPER FEED/BELT CLEANER MOTOR ASSY A1-2 087320616 TAPTITE CUP S M3X6 LR1126001 FUSER DRIVE GEAR 18 DRUM DRIVE LR1904001 DRUM DRIVE ASSY B1-1 LM9192001 DRUM PHASE SENSOR PCB ASSY1 B1-2...
  • Page 8 2. DRIVE B1-2 B1-1 D6-1 B1-5 B1-5 D6-2 B1-5 B1-3 B1-5 B1-4 B1-5 B1-5 A1-1 A1-2 A1-2 A1-2 A1-2 - 4 -...

  • Page 9: Laser Unit

    3. LASER UNIT REF No. CODE Q'TY DESCRIPTION REMARKS LU4373001 LASER UNIT AC (SP) LJ0908001 LASER CAUTION LABEL (EXCEPT CHN) UL7931001 LASER CAUTION LABEL (CHN) LM5867001 TAPTITE CUP S M3X6 SR 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 5 -...
  • Page 10 3. LASER UNIT - 6 -...

  • Page 11: Paper Feeder

    4. PAPER FEEDER REF No. CODE Q'TY DESCRIPTION REMARKS LR0107001 PAPER FEED FRAME UNIT LM9185001 T1 PE/EDGE SENSOR PCB ASSY LR1914001 ROLLER HOLDER ASSY IE301 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 7 -...
  • Page 12 4. PAPER FEEDER - 8 -...

  • Page 13: Mp Unit

    5. MP UNIT REF No. CODE Q'TY DESCRIPTION REMARKS LR1768002 FRONT DOOR UNIT ASSY (SP), HL-4040CN, HL-4040CDN LR1768001 FRONT DOOR UNIT ASSY (SP), HL-4050CDN, HL-4070CDW LR1601001 FRONT DOOR MAIN ASSY LR0707002 FRONT DOOR SUB, HL-4040CN, HL-4040CDN LR0707001 FRONT DOOR SUB, HL-4050CDN, HL-4070CDW LR1037001 HOOK LR1676001...
  • Page 14 5. MP UNIT 1-15 1-16 1-14 1-12 1-13 1-10 1-11 - 10 -...
  • Page 15 6. DX REF No. CODE Q'TY DESCRIPTION REMARKS LR0228001 DX FEED ASSY, HL-4040CDN, HL-4050CDN, HL-4070CDW 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 11 -...
  • Page 16 6. DX - 12 -...

  • Page 17: Paper Tray

    7. PAPER TRAY REF No. CODE Q'TY DESCRIPTION REMARKS LR1186001 PAPER TRAY UNIT, HL-4040CN LR0247002 PAPER TRAY UNIT, HL-4040CDN LR0247001 PAPER TRAY UNIT, HL-4050CDN, HL-4070CDW LM5237001 SEPARATION PAD ASSY LR0931001 SEPARATION PAD SPRING LR0545002 PAPER GUIDE DX ASSY, HL-4040CDN LR0545001 PAPER GUIDE DX ASSY, HL-4050CDN, HL-4070CDW LU4358001 LABEL SPRAY CAUTION TRAY 2...
  • Page 18 7. PAPER TRAY - 14 -...

  • Page 19: Fuser Unit

    8. FUSER UNIT REF No. CODE Q'TY DESCRIPTION REMARKS LU4103001 FUSER UNIT 115V (SP) LU4104001 FUSER UNIT 230V (SP) LU4093001 FUSER REAR COVER ASSY (SP) LJ0395001 TAPTITE PAN B M4X14 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 15 -...
  • Page 20 8. FUSER UNIT - 16 -...

  • Page 21: Paper Eject

    9. PAPER EJECT REF No. CODE Q'TY DESCRIPTION REMARKS LU0534001 PAPER EJECT ASSY SX (SP), HL-4040CN LU0533001 PAPER EJECT ASSY DX (SP), HL-4040CDN, HL-4050CDN, HL- 4070CDW 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 17 -...
  • Page 22 9. PAPER EJECT For HL-4050CDN / 4070CDW - 18 -...

  • Page 23: Covers&Labels

    10. COVERS&LABELS REF No. CODE Q'TY DESCRIPTION REMARKS LR1231001 TOP COVER ASSY 40, HL-4040CN LU4280001 TOP COVER ASSY 40D, HL-4040CDN LR0485001 TOP COVER ASSY 50, HL-4050CDN LR1232001 TOP COVER ASSY 70, HL-4070CDW LR1910002 TOP COVER L ASSY, HL-4040CN, HL-4040CDN LR1910001 TOP COVER L ASSY, HL-4050CDN, HL-4070CDW LR0488001 TOP COVER R...
  • Page 24 10. COVERS&LABELS 1-5-1 1-4-2 1-4-1 1-4-5 1-4-3 1-4-4 1-4-6 1-4-7 - 20 -...

  • Page 25: Main Pcb

    11. MAIN PCB REF No. CODE Q'TY DESCRIPTION SYMBOL REMARKS LM9197002 MAIN PCB ASSY, HL-4040CN US/BRZ B512246 LM9197012 MAIN PCB ASSY, HL-4040CN CAN B512246 LM9197022 MAIN PCB ASSY, HL-4040CN GER/UK/SWI/ITA/ISR/ B512246 SAF/PAN-NORDIC/BEL/FRA/HOL/IBERIA/ARL/SGP/ GULF/RUS/EEU GENERAL/CHN LM9197004 MAIN PCB ASSY, HL-4040CDN US B512246 LM9197014 MAIN PCB ASSY, HL-4040CDN CAN...
  • Page 26 11. MAIN PCB - 22 -...

  • Page 27: Engine Pcb

    12. ENGINE PCB REF No. CODE Q'TY DESCRIPTION SYMBOL REMARKS LV0378001 ENGINE PCB ASSY (HL-4040CDN/4050CDN/4070CDW) B512250 LV0378002 ENGINE PCB ASSY (HL-4040CN) B512250 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 23 -...
  • Page 28 12. ENGINE PCB - 24 -...

  • Page 29: Lvps

    13. LVPS REF No. CODE Q'TY DESCRIPTION REMARKS LM9246001 PS PCB UNIT 115V LM9287001 PS PCB UNIT 230V FOR GER/ARL/SGP/ISR/SAF/GULF/RUS/CHL LV0737001 PS PCB UNIT 230V FOR UK/SWI/ITA/ PAN-NORDIC/BEL/FRA/HOL/IBERIA/EEU GENERAL LM9503001 PS PCB UNIT 230V CHN 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 25 -...
  • Page 30 13. LVPS - 26 -...

  • Page 31: Hvps

    14. HVPS REF No. CODE Q'TY DESCRIPTION REMARKS LM9506001 CHARGE HVPS PCB ASSY LR0902001 TRANSFER HVPS PCB UNIT LM9253001 TRANSFER HVPS PCB ASSY LM9224001 DENSITY SENSOR LM9446001 REGISTRATION-MARK SENSOR PCB ASSY1 LM9448001 REGISTRATION-MARK SENSOR PCB ASSY2 LM9445001 REGISTRATION RELAY PCB ASSY 085310816 TAPTITE BIND B M3X8 LU4445001...
  • Page 32 14. HVPS - 28 -...

  • Page 33: Ac Cord

    15. AC CORD REF No. CODE Q'TY DESCRIPTION REMARKS LM9362001 AC CORD BAG ASSY LF UL/CSA 13A LG4424001 AC CORD BAG ASSY LF VDE LV0368001 AC CORD BAG ASSY LF BS/PSB S LT2259001 AC CORD BAG ASSY LF SEV LG7005001 AC CORD BAG ASSY LF ISRAEL LG6404001 AC CORD BAG ASSY LF SAF...
  • Page 34 15. AC CORD - 30 -...

  • Page 35: Accessories

    16. ACCESSORIES REF No. CODE Q'TY DESCRIPTION REMARKS LR1108001 CD ASSY AC 40/50, HL-4040CN, HL-4050CDN LR1759001 CD ASSY AC EEU/RUS LR1876001 CD ASSY AC CHN LU4270001 CD ASSY AC US/EU, US/CAN/GER/UK/ARL/SGP/GULF/SWI/ITA/ISR/SAF/CHL/ARG/ BRZ/PAN-NORDIC/BEL/FRA/HOL/IBERIA LU4368001 CD ASSY WIN7 EXCEPT CHN/RUS/EEU LU4370001 CD ASSY WIN7 CHN LU4369001 CD ASSY WIN7 EEU/RUS LR1695001...
  • Page 36 16. ACCESSORIES These parts are NOT supplied with a product. - 32 -...

  • Page 37: Packing Materials

    17. PACKING MATERIALS REF No. CODE Q'TY DESCRIPTION REMARKS LR1794001 CARTON HL-4040 US/BRZ LR1795001 CARTON HL-4040 CAN LR1623001 CARTON HL-4040 EU LR1742001 CARTON HL-4040 AP LR1889001 CARTON HL-4040 CHN LU4283001 CARTON HL-4040CDN US LU4300001 CARTON HL-4040CDN CAN LR1699001 CARTON HL-4050 CAN/CHL/ARG LR1627001 CARTON HL-4050 EU LR1744001...
  • Page 38 17. PACKING MATERIALS - 34 -...

  • Page 39: Periodical Maintenance Part

    18. PERIODICAL MAINTENANCE PART REF No. CODE Q'TY DESCRIPTION REMARKS LR1919001 PAPER FEED KIT IE301 LR1920001 MP PAPER FEED KIT IE301 84E101/102/103/104 HL-4040CN/4040CDN/4050CDN/4070CDW - 35 -...
  • Page 40 18. PERIODICAL MAINTENANCE PART - 36 -...
