Printers
HL-4040CN 21 PPM
TN-110BK 2500 pages at 5% cover
HL-4070CDW 21 PPM
TN-110C 1500 pages at 5% cover
MFC-9440CN 21PPM
TN-110M 1500 pages at 5% cover
MFC-98CDW 21PPM
TN-110Y
DPC-9040 21PPM
DCP-9045CDN 21PPM
TN-115BK 5000 pages at 5% cover
TN-115C 4000 pages at 5% cover
TN-115M 4000 pages at 5% cover
TN-115Y
PHOTO 1
PHOTO 2
PHOTO 3
© 2008 Future Graphics Imaging Corporation. All rights reserved. Future Graphics Imaging Corporation (FGIC) is a distributor of compati-
ble replacement parts and products for imaging equipment. None of FGIC's products are genuine OEM replacement parts and no affiliation
or sponsorship is to be implied between FGIC and any OEM.
Cartridge Info
1500 pages at 5% cover
4000 pages at 5% cover
Tools
Phillips screwdriver
Pliers
Small flat blade
Supplies Required:
screwdriver
Toner
Needle nose pliers
BR1240FILLCAP

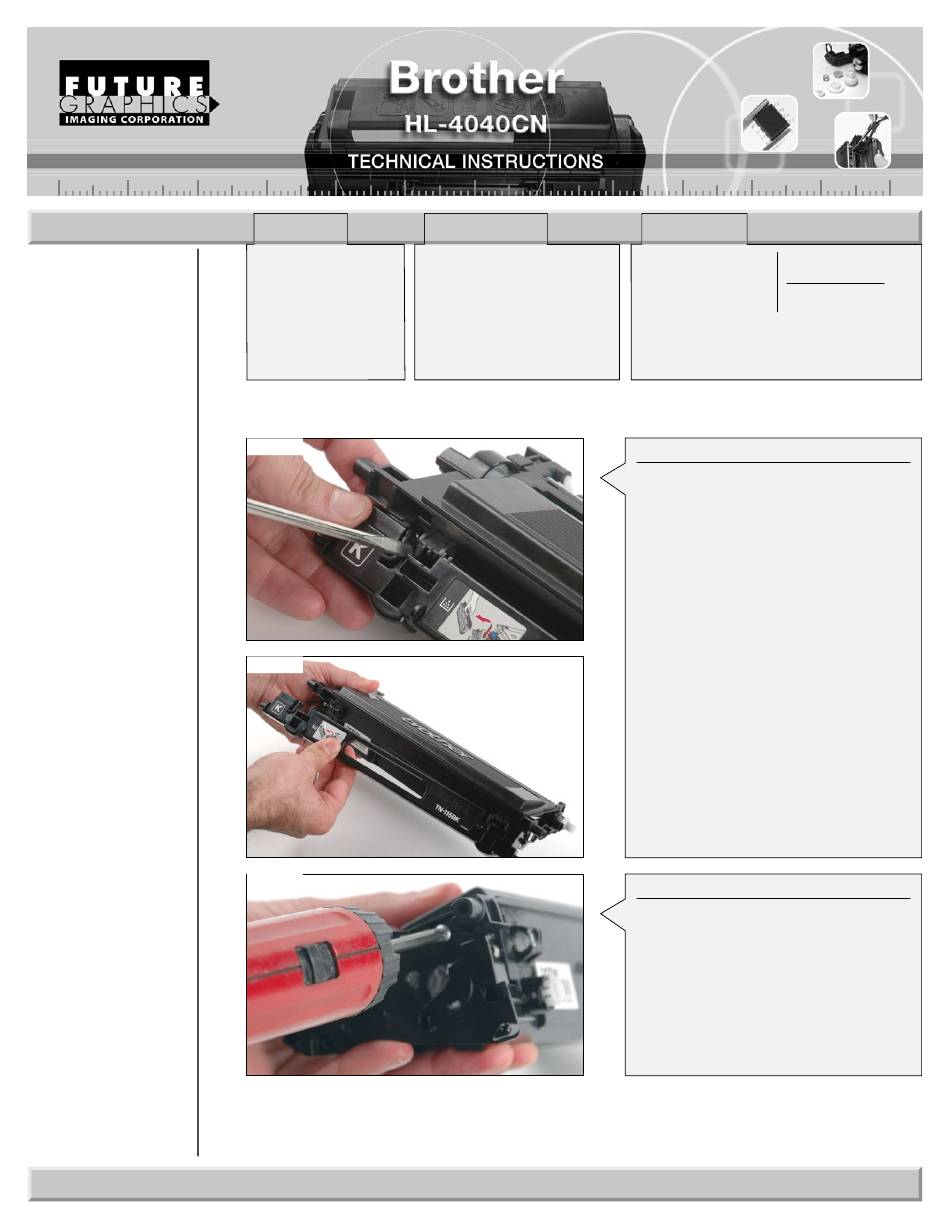

Step 1
Set the hopper on a work bench with the
toner hopper handle facing towards you.
Take a flat blade screwdriver and remove
the handle hinges that hold the toner hopper
handle onto the toner hopper (See photos 1
& 2).
Step 2
Using a Phillips screwdriver, remove the two
screws that hold the gear housing end cap
to the toner hopper (See photo 3).
Website: www.fgimaging.com
1
