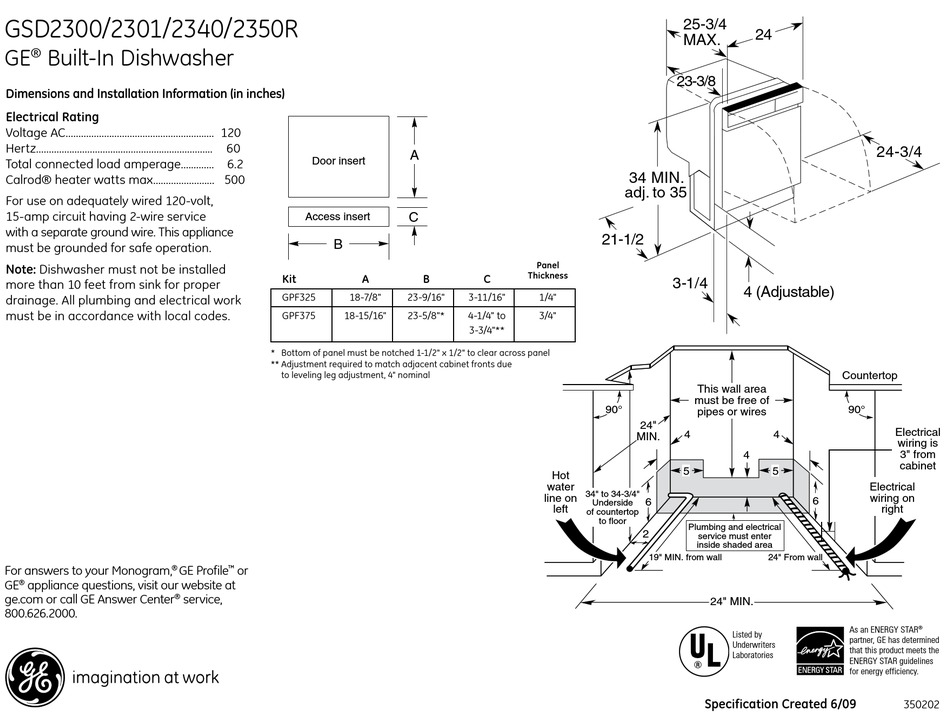

GSD2300/2301/2340/2350R
GE
Built-In Dishwasher
®
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz.....................................................................
Total connected load amperage............. 6.2
Calrod® heater watts max........................ 500
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Note: Dishwasher must not be installed
more than 10 feet from sink for proper
drainage. All plumbing and electrical work
must be in accordance with local codes.
For answers to your Monogram,
GE Profile
®
GE
®
appliance questions, visit our website at
ge.com or call GE Answer Center
®
800.626.2000.
60
Door insert
Access insert
B
Kit
A
Models/Kits
A
B
GE Models
GPF325 Kit
18-7/8"
23-9/16"
GPF325
18-7/8"
GPF375 Kit
18-15/16"
23-5/8"*
GPF375
18-15/16"
*Bottom of panel must be notched 1-1/2"x1/2" to clear
across panel
**Adjustment required to match adjcent cabinets fronts due to
leveling leg adjustment, 4" nominal.
* Bottom of panel must be notched 1-1/2" x 1/2" to clear across panel
** Adjustment required to match adjacent cabinet fronts due
to leveling leg adjustment, 4" nominal
or
service,
A
C
Panel
Thickness
B
C
C
Thickness
3-11/16"
1/4"
23-9/16"
3-11/16"
1/4"
4-1/4" to
3-3/4"**
3/4"
23-5/8"*
4-1/4" to
3/4"
3-3/4"**
25-3/4
MAX.
23-3/8
34 MIN.
adj. to 35
21-1/2
3-1/4
This wall area
must be free of
90°
pipes or wires
24"
4
MIN.
5
Hot
water
34" to 34-3/4"
line on
6
Underside
left
of countertop
to floor
Plumbing and electrical
2
service must enter
inside shaded area
19" MIN. from wall
24" MIN.
Specification Created 6/09
24
24-3/4
4 (Adjustable)
Countertop
90°
Electrical
4
wiring is
4
3" from
cabinet
5
Electrical
wiring on
6
right
24" From wall
As an EnErgy StAr
Listed by
partner, gE has determined
Underwriters
that this product meets the
Laboratories
EnErgy StAr guidelines
for energy efficiency.
350202
®
