TXX-BD1-15
TXX-BD1-10
TXX-BD1-12
All Audiopipe products are designed, manufactured and tested to perform in harsh environments. From our entry level products to our high end series,
Audiopipe is your best choice for competition level performance. We welcome you to Team Audiopipe.
For more information, please visit your authorized Audiopipe dealer or:
WWW.AUDIOPIPE.COM
Advertisement
Related Manuals for Audiopipe TXX-BD1-10
Summary of Contents for Audiopipe TXX-BD1-10

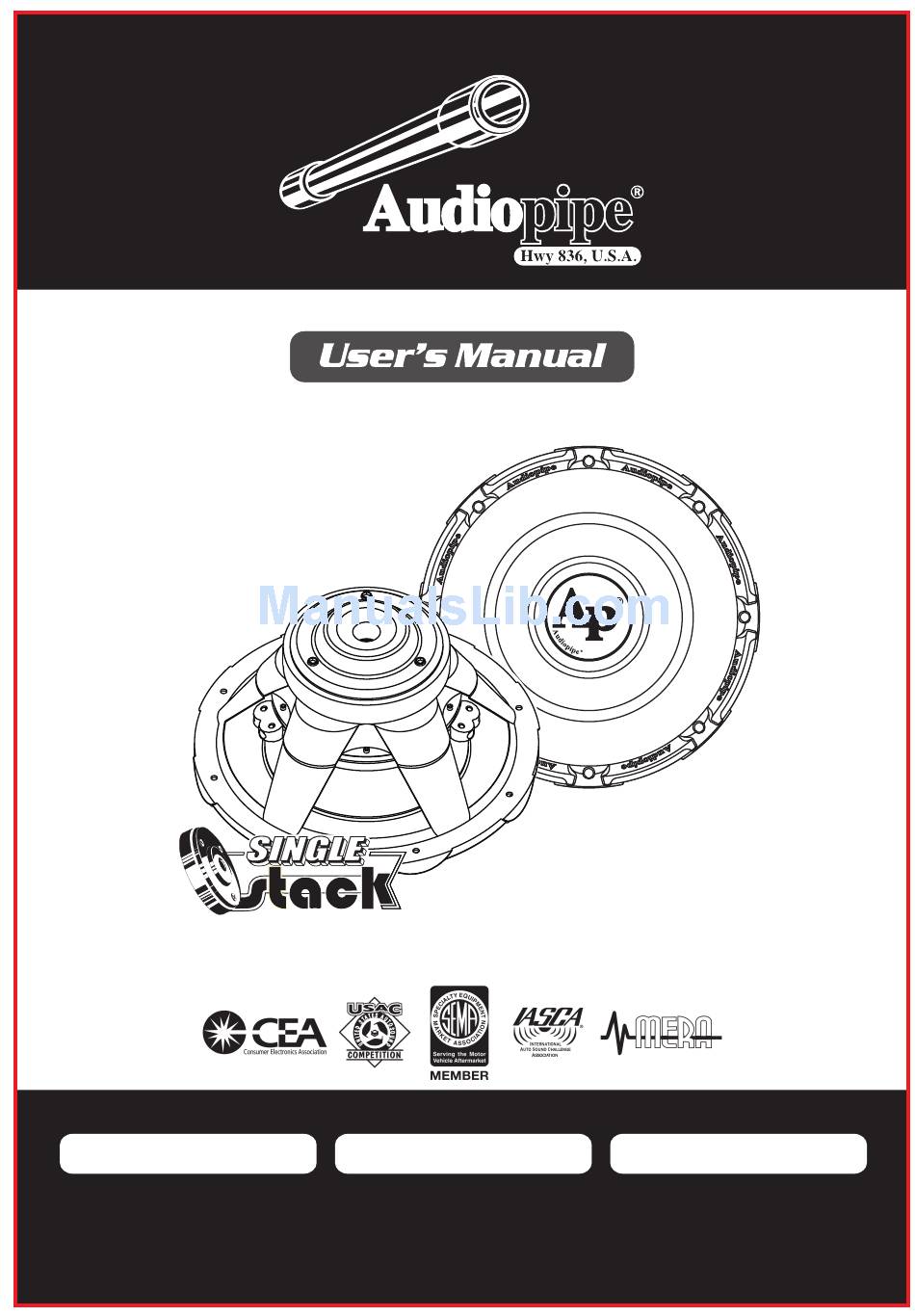

- Page 1 TXX-BD1-10 TXX-BD1-12 All Audiopipe products are designed, manufactured and tested to perform in harsh environments. From our entry level products to our high end series, Audiopipe is your best choice for competition level performance. We welcome you to Team Audiopipe.
- Page 2 Warranty Building an Enclosure...
- Page 3 (a copy of the original receipt) listing the customer name, dealers name, invoice number and product purchased. Items sent freight collect or COD will be refused. Call the Audiopipe customer service number 9 am to 5pm eastern standard time at 1-877-AUDIOPIPE (1-877-283-4674) for a return authorization number (RMA).
- Page 4 TXX-BD1-10 TXX-BD1-12 TXX-BD1-15 Ø254mm Ø300mm Ø381mm Nominal Diameter 10” 12” 15” Ø266mm Ø321mm Ø398mm Overall Diameter(A) 10 1/2” 12 5/8” 15 11/16” Ø238mm Ø290mm Ø363mm Mounting Hole Diameter(B) 8 7/8” 11-3/8” 14 3/8” Ø254mm Ø374mm Ø306mm Bolt Hole Circle(C) 10”...
- Page 5 Features • Dual Voice Coil BASV • Powdered Black Paint Steel Basket • Patent Pipe Multi-Connect Terminal • Single-stacked Magnet TXX-BD1-10 TXX-BD1-12 TXX-BD1-15 Fs (Hz) Re (Ohms) 2x3.6 2x3.6 2x3.6 Le (mH) 0.49 0.47 0.49 0.65 0.73 0.53 0.67 0.65...
-
Page 6: Building An Enclosure
Building an enclosure When building an enclosure, the walls should be as rigid as possible and not flex. Flexing of the enclosure can drastically decrease your subwoofers performance. It is recommended that Enclosures be built using 3/4” MDF, be glued and secured with nails or screws. - Page 7 The TXX-BD1 series of subwoofers are available with dual 4 Ohms voice coils. Both coils must be connected to a source of amplification. A dual 4 Ohms woofer can be configured in parallel to provide a 1 Ohm load. A dual 4 Ohms woofer can be also configured in series to provide a 8 Ohms load.
-
Page 8: Sealed Enclosure
Sealed enclosure This type of enclosure is classic and the simplest to build among most installers. The box volume will directly impact the performance of the subwoofer, it is important to make sure the enclosure is properly sealed. Use some type of sealant on the seams as this will ensure a solid construction and prevent air leaks. - Page 9 Recommended Sealed Enclosure TXX-BD1-10 TXX-BD1-12 TXX-BD1-15...
- Page 10 Vented enclosure This type of enclosure is the installer’s top choice for high performance SPL levels and requires a deeper understanding in order to achieve maximum efficiency. The most notable difference between the sealed and vented enclosure is the port, this port is used to tune the enclosure.
- Page 11 Recommended Ported Enclosure TXX-BD1-10 TXX-BD1-12 TXX-BD1-15 Remember: If you are going to bend the port at 90º, you will need to add 1/2 of the ports height to the length! See below: Fig. 1 Fig. 2 Example: (Fig. 1) port=3”...
- Page 12 www.audiopipe.com...
