QuickSpecs
Overview
Do you need a direct attached or shared storage solution within your BladeSystem enclosure?
Direct attached storage
The D2220sb Storage Blade delivers direct attached storage for c-Class Gen8 blade servers, with support for up to twelve hot plug
small form factor (SFF) SAS or SATA Midline hard disk drives or SAS/SATA SSDs. The enclosure backplane provides a PCI Express
connection to the adjacent c-Class server blade and enables high performance storage access without any additional cables. The
D2220sb Storage Blade features an onboard Smart Array P420i controller with 2GB flash-backed write cache, for increased
performance and data protection. Up to eight D2220sb storage devices can be supported off a single BladeSystem c7000 enclosure for
up to 115.2 TB of capacity.
Two ways to create shared storage with the D2220sb
Use HP StoreVirtual VSA software to turn the D2220sb into an iSCSI SAN for use by all servers in the enclosure and any server on the
network. HP StoreVirtual VSA software is installed in a virtual machine on a VMware ESX host server adjacent to the D2220sb. HP
StoreVirtual VSA turns the D2220sb into a scalable and robust iSCSI SAN, featuring storage clustering for scalability, Network RAID for
storage failover, thin provisioning, snapshots, remote replication, and cloning. Expand capacity within the same enclosure or to other
BladeSystem enclosures by adding additional D2220sb Storage Blades and HP VSA licenses. A cost effective bundle of the D2220sb
Storage Blade and a HP StoreVirtual VSA license makes purchasing convenient. If storage needs increase, add HP P4300 or P4500
systems externally and manage everything via a single pane of glass.
The HP StoreEasy 3830 Gateway Storage Blade is a flexible storage server solution for BladeSystem environments. Combine the
StoreEasy 3830 with the D2220sb Storage Blade to enable file serving and iSCSI shared storage inside the BladeSystem enclosure.

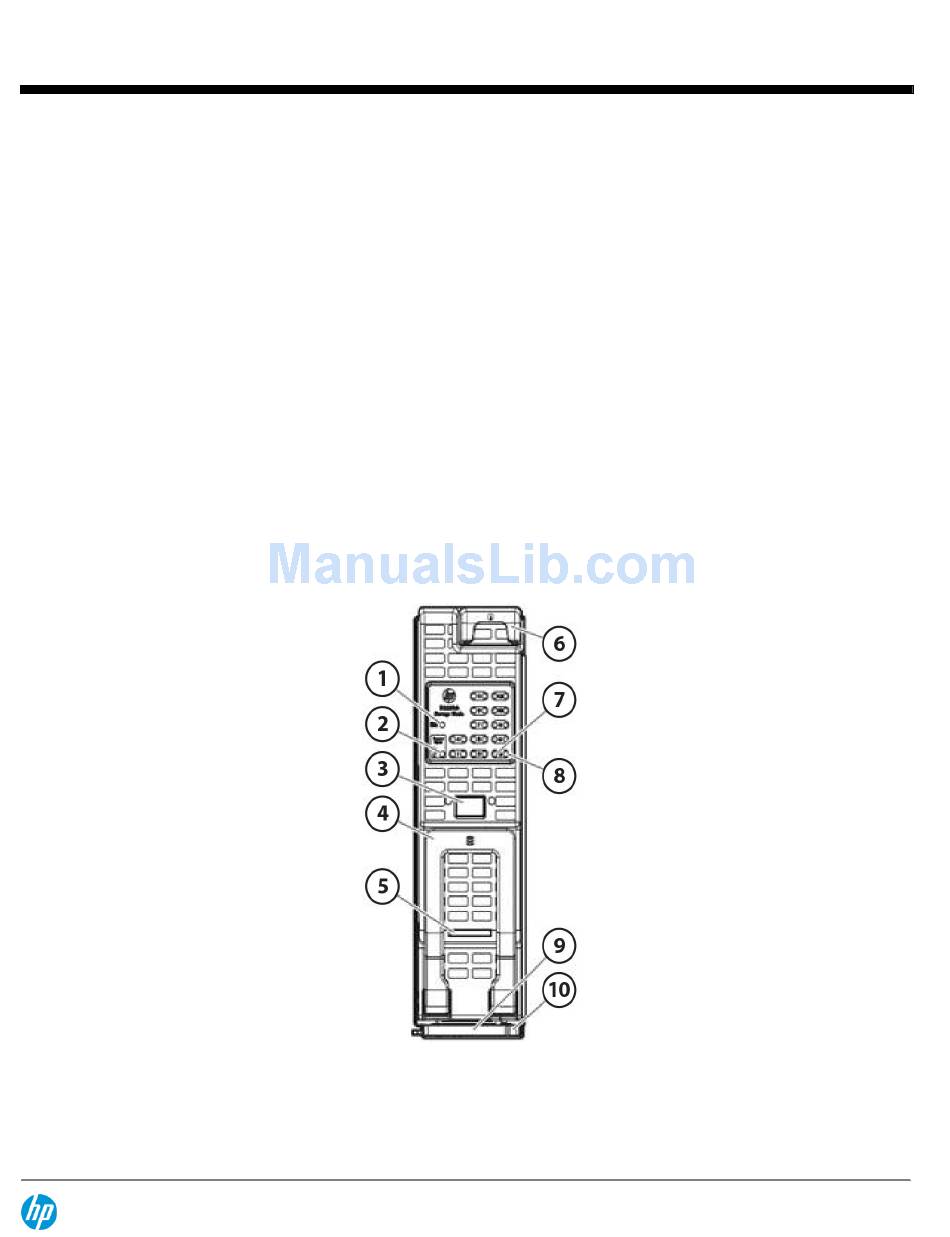

1. UID LED
2. Drawer Open LED
3. Hot-plug drive drawer release button
4. Hot-plug drive drawer handle
DA - 14507 North America — Version 7 — December 20, 2013
6. Product information tag
7. Drive fault LED
8. Drive activity LED
9. Storage blade release
latch*
HP D2220sb Storage Blade
Page 1
Advertisement
Table of Contents
Related Manuals for HP D2220sb
Summary of Contents for HP D2220sb
- Page 1 Two ways to create shared storage with the D2220sb Use HP StoreVirtual VSA software to turn the D2220sb into an iSCSI SAN for use by all servers in the enclosure and any server on the network. HP StoreVirtual VSA software is installed in a virtual machine on a VMware ESX host server adjacent to the D2220sb. HP StoreVirtual VSA turns the D2220sb into a scalable and robust iSCSI SAN, featuring storage clustering for scalability, Network RAID for storage failover, thin provisioning, snapshots, remote replication, and cloning.
-
Page 2: What's New
Supports Active Health System (AHS) Supports SAAP 2.0 NOTE : SAAP 2.0 features are now included as part of the base features for HP Smart Array P420i controller DA - 14507 North America — Version 7 — December 20, 2013... -
Page 3: Product Highlights
6 fans, storage blade is not supported with 4 fan configuration. Fault Tolerance Using the internal Smart Array P420i controller with 2 GB flash-backed write cache, the D2220sb can be configured for RAID levels 0, 1, 1 + 0, 5, and 6 (RAID ADG) Manageability All Smart Array products utilize a standard set of management and utility software. - Page 4 Half BL660c Gen8 Full WS460c Gen8 Half *NOTE: For BL465c Gen8 , SPLD/CPLD FW 0x40 or higher is required to support D2220sb. Operating Systems Windows Server: 2008 R2, 2012 Red Hat Enterprise: RHEL5, RHEL6 SLES (x86): SLES10, SLES11 VMware ESX: 4.1ESXi 5.0...
- Page 5 Allows the ability to create arrays, logical drives, and assign an online spare drive Allows the ability to view and delete logical drives Allows the ability to select the boot controller or advanced array configurations use HP SSA HP Array Diagnostic Utility (ADU)
-
Page 6: Service And Support, Hp Care Pack, And Warranty Information
Hard drive Pre-Failure Warranty: When used with any one of the Smart Array Family controllers and monitored under HP Systems Insight Manager (v4.20 or later), HP hard drives are supported by a Pre- Failure (replacement) Warranty. Hard drives have a one year warranty. - Page 7 Service and Support, HP Care Pack, and Warranty Information once per environment. HP Personalized Support Additional Day - Customers who require more time than is provided by the Personalized Support option can elect to purchase additional days through the Personalized Support Additional Day option.
- Page 8 HP Entry Storage Data Migration Service for Windows offers you a cost competitive and convenient way to accommodate data migration triggered by a need to refresh or consolidate storage, or to create different storage tiers.
- Page 9 Additional Option: HP 10 Proactive Select credits per year -HP Proactive Select is a flexible way to purchase services to fit your particular environment or situation. Working with an HP Account Support Manager, you select a...
- Page 10 Service and Support, HP Care Pack, and Warranty Information For more information www.hp.com/services/storage To learn more on HP Storage Services, please contact your HP sales representative or HP Authorized Channel Partner HP Care Pack Services are sold by HP and HP Authorized Service Partners: Services for customers purchasing from HP or an enterprise reseller are quoted using HP order configuration tools.
-
Page 11: Configuration Information - Factory Integrated Models (North America Only)
HP D2220sb PCIe and StoreVirtual VSA Bundle QW914A NOTE: Includes the D2220sb Storage Blade and a single HP StoreVirtual VSA license. VSA software is installed in a virtual machine on a VMware ESX/ESXi & Microsoft Hyper- V host server adjacent to the D2220sb. - Page 12 652589-B21 HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Enterprise 3yr Warranty Hard Drive 697574-B21 HP 1.2TB 6G SAS 10K rpm SFF (2.5-inch) SC Dual Port Enterprise 3yr Warranty Hard 718162-B21 Drive NOTE: SAS drives have a 3 year warranty.
- Page 13 Solid State Drive SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652745-B21 HP 1TB 6G SAS 7.2K rpm SFF (2.5-inch) SC Midline 1yr Warranty Hard Drive 652749-B21 DA - 14507 North America —...
- Page 14 QuickSpecs HP D2220sb Storage Blade Storage Top view of the D2220sb, with the drive drawer opened Hard Drives SAS Hot Plug SFF Enterprise (ENT) Drives Quantity Position Supported Supported Controller 1-12 Smart Array P420i Controller DA - 14507 North America — Version 7 — December 20, 2013...
-
Page 15: Technical Specifications
7.10 KG (15.65 lbs) Protocol Support 6Gb/s SAS O/S Support Defined by specific HP array controller or SAS/ adapter used; please refer to the QuickSpecs and/or User Guide of the specific array controller or adapter LED Indicators System Health LED... - Page 16 The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
