Unit Nomenclature - LG Multi V mini Engineering Manual

Family y
Outdoor
ARU = Multi V Outdoor Unit = Multi V Outdoor
(Refrigerant R410A)
Type e
N = Inverter Heat Pump Inverter Heat
Nominal Capacity y
Nominal cooling capacity in Btu/h capacity in Btu/h
036 = 38,000
047 = 48,000
053 = 53,000
Electrical Ratings s
G = 208–230V/60Hz/1Ph 0Hz/1Ph
Airfl ow Confi guration
S = Side Discharge
Generation on
2 = Second nd
Family ly
Indoor
ARN = Multi V Indoor Unit = Multi V Indoor
(Refrigerant R410A)
Type pe
U = DC Inverter Heat Pump = DC Inverter Heat
Nominal Capacity y
05 = 5,000 Btu/h h
07 = 7,000 Btu/h
09 = 9,000 Btu/h
12 = 12,000 Btu/h
15 = 15,000 Btu/h
Electrical Ratings s
3 = 208–230V/60Hz/1Ph 0Hz/1Ph
Model el
B1 = Ducted (low static, convertible) = Ducted (low
B2 = Ducted (low static, convertible)
B3 = Ducted (low static, bottom return)
B4 = Ducted (low static, bottom return)
BG = Ducted (high static)
BH = Ducted (high static)
BR = Ducted (high static)
CE = Floor Standing
Feature e
A = Basic sic
C = Plasma Filter
G = Low Static
L = Neo Plasma
Generation n
2 = Second d
Note:
© LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG" is a registered trademark of LG Corp.
ARU
Unit
Pump
* *
n
ARN
Unit
Pump
18 = 18,000 Btu/h 42 = 42,000 Btu/h
24 = 24,000 Btu/h 48 = 48,000 Btu/h
28 = 28,000 Btu/h 54 = 54,000 Btu/h
30 = 30,000 Btu/h
36 = 36,000 Btu/h
static convertible)
CF = Floor Standing
S5 = Wall Mounted
NJ = Vertical/Horizontal
NK = Vertical/Horizontal
SE = Wall Mounted/Mirror
TJ = 1-Way Ceiling Cassette
TL = 2-Way Ceiling Cassette
S8 = Mirror
R = Mirror and Neo Plasma R = Mirror and Neo Plasma
U = Uncased
* Nominal capacity is obtained when applied with non-ducted indoor unit.
Due to our policy of continuous product innovation, some specifications may change without notification.

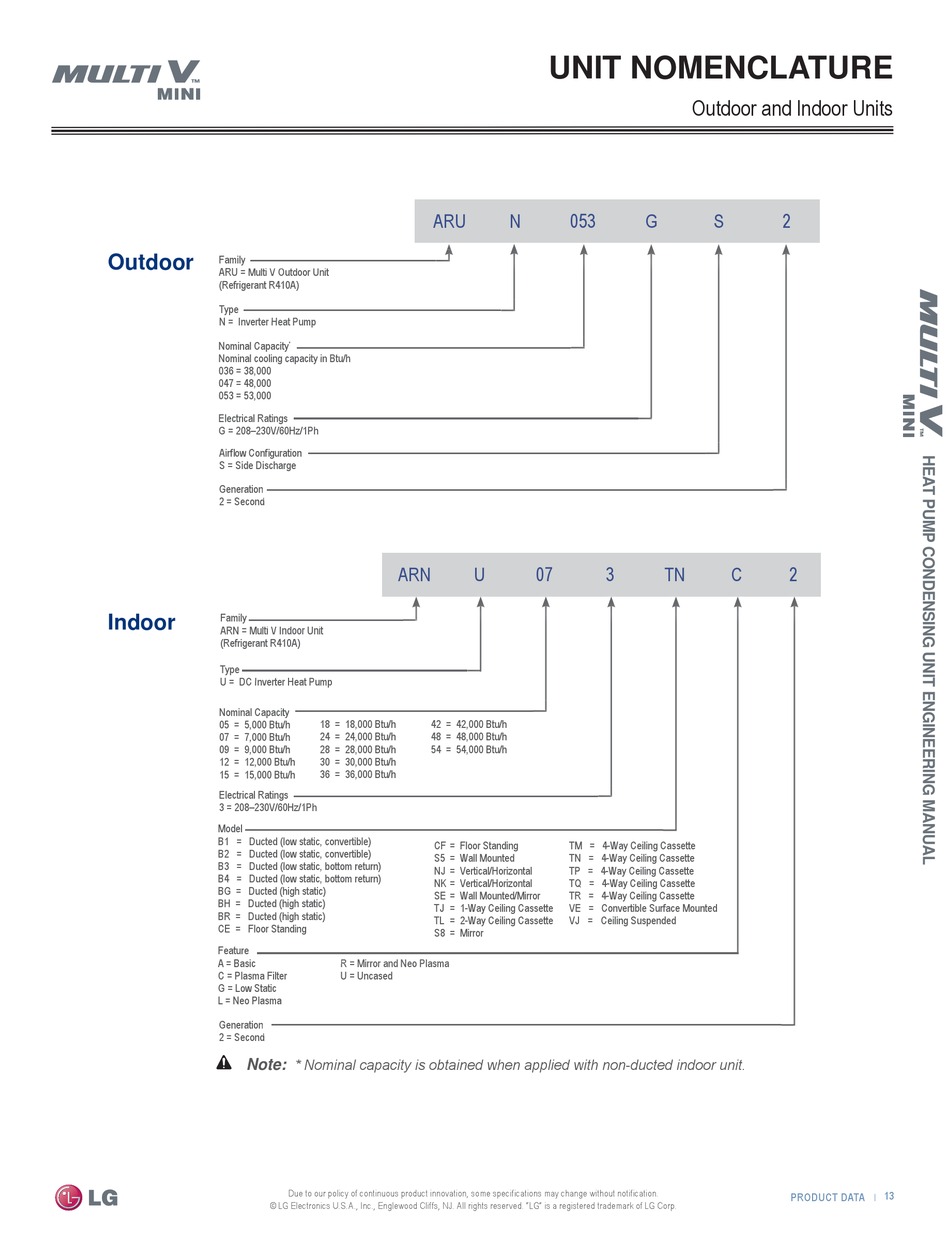

UNIT NOMENCLATURE

N 053 G
U 07 3
TM = 4-Way Ceiling Cassette
TN = 4-Way Ceiling Cassette
TP = 4-Way Ceiling Cassette
TQ = 4-Way Ceiling Cassette
TR = 4-Way Ceiling Cassette
VE = Convertible Surface Mounted
VJ = Ceiling Suspended
Outdoor and Indoor Units
S 2
TN C 2
