Panasonic PODV7CPNS Specifications

PODV7CPNS &
PODV7CWNS
MODELS

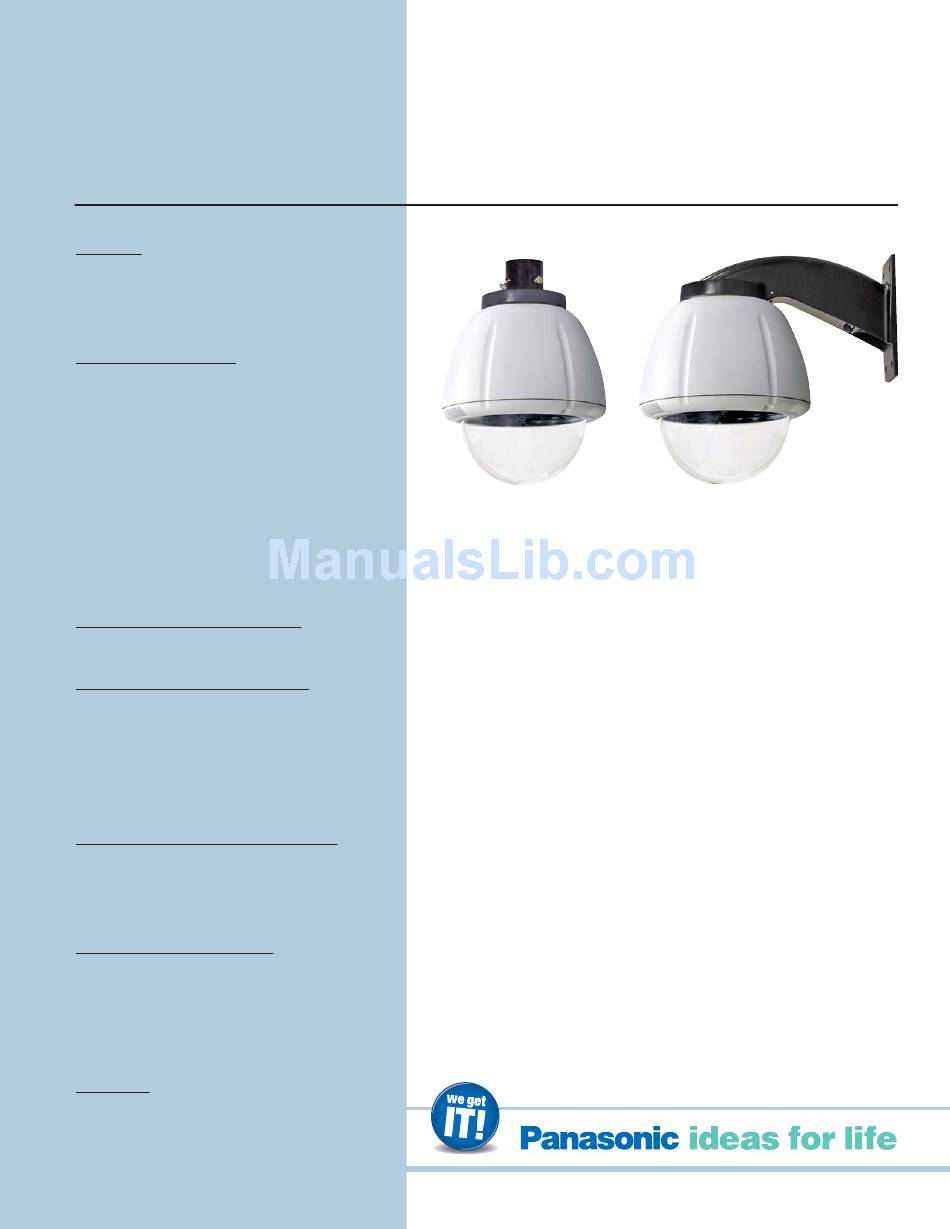

PODV7CPNS - Outdoor, pendant mount, clear dome
housing with 24 VAC input and heater/blower
PODV7CWNS - Outdoor, wall mount, clear dome
housing with 24 VAC input and heater/blower
PRODUCT FEATURES
• Easy camera installation
• Outdoor dome, UV protected
• Strong cast aluminum top and trim ring, w/ UV
protected lower dome
• Rugged polycarbonate lower dome
• Thermostatically control 24VAC heater
• 24 Hour fan operation for effective heating and
condensation protection
• Optically correct, clear lower dome
• 24VAC input
• Separate power input for H&B and camera power
• Pendant mount, 1 1 / " NPT quick connect coupling
2
(PODV7CPNS)
• Integrated wall mount with access door
(PODV7CWNS)
ELECTRICAL SPECIFICATIONS
Power: Heater and Blower: 24 VAC 54 watts
Camera: 24 VAC 25 watts
MECHANICAL SPECIFICATIONS
Size (HxWxD):
10.3" (262mm) x 10.3" (262mm) x 14.6" (371mm)
Weight: 7 lbs. (3.5 Kg) (without camera)
Construction:
Upper Housing: Cast aluminum
Lower Dome: Polycarbonate blend material
(Distortion free)
Mounting Brackets: Cast or machined aluminum
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature:
-20° F (-29°C) to +122°F (50°C)
Heater activates at +40° F (5°C),
deactivates at +60° F (15°C), 24vac, 25W
Blower: Continuous operation
STANDARD ACCESSORIES
• 8 pc. Molex male pins
• 2 pc. Molex 4 position connectors
• 1 pc. PODV7CPNS/CWNS instructions
• 4 pc. 8-32 Phillips head screws for mount camera
• 4 pc. 1" Long aluminum standoffs
• 3 pc. Cable ties for wire management
• 1 pc. Security tool (Toolhead driver)
SHIPPING
13 lbs (5 Kg)
12" (305mm) x 12" (305mm) x 19" (483mm)
Product specifications are subject to change without notice.
© Panasonic System Solutions Company. All rights reserved.
PODV7CPNS
DESCRIPTION
The PODV7CPNS and PODV7CWNS
vandal resistant protection for the camera. These tough
dome housings are specifically designed for Panasonic's
WV-NS202 and WV-NF284 cameras. The housings offer
versatility, easy installation and outstanding camera
protection in a compact size.
OPTIONS/ACCESSORIES
PWM20G Aluminum gooseneck wall mount, black finish
PWM30G Aluminum parapet mount, black finish
PACA2 Aluminum corner mount adapter, black finish
(must be used with PODV7CWNS or PWM20G)
PAPM3 Aluminum existing pole mount adapter, black finish
(must be used with PODV7CWNS or PWM20G)
PPMF12D Pendant hanging mounting bracket 1
Housings:
Outdoor Dome
PODV7CWNS
7" Domes offer
1
/ " std.
2
