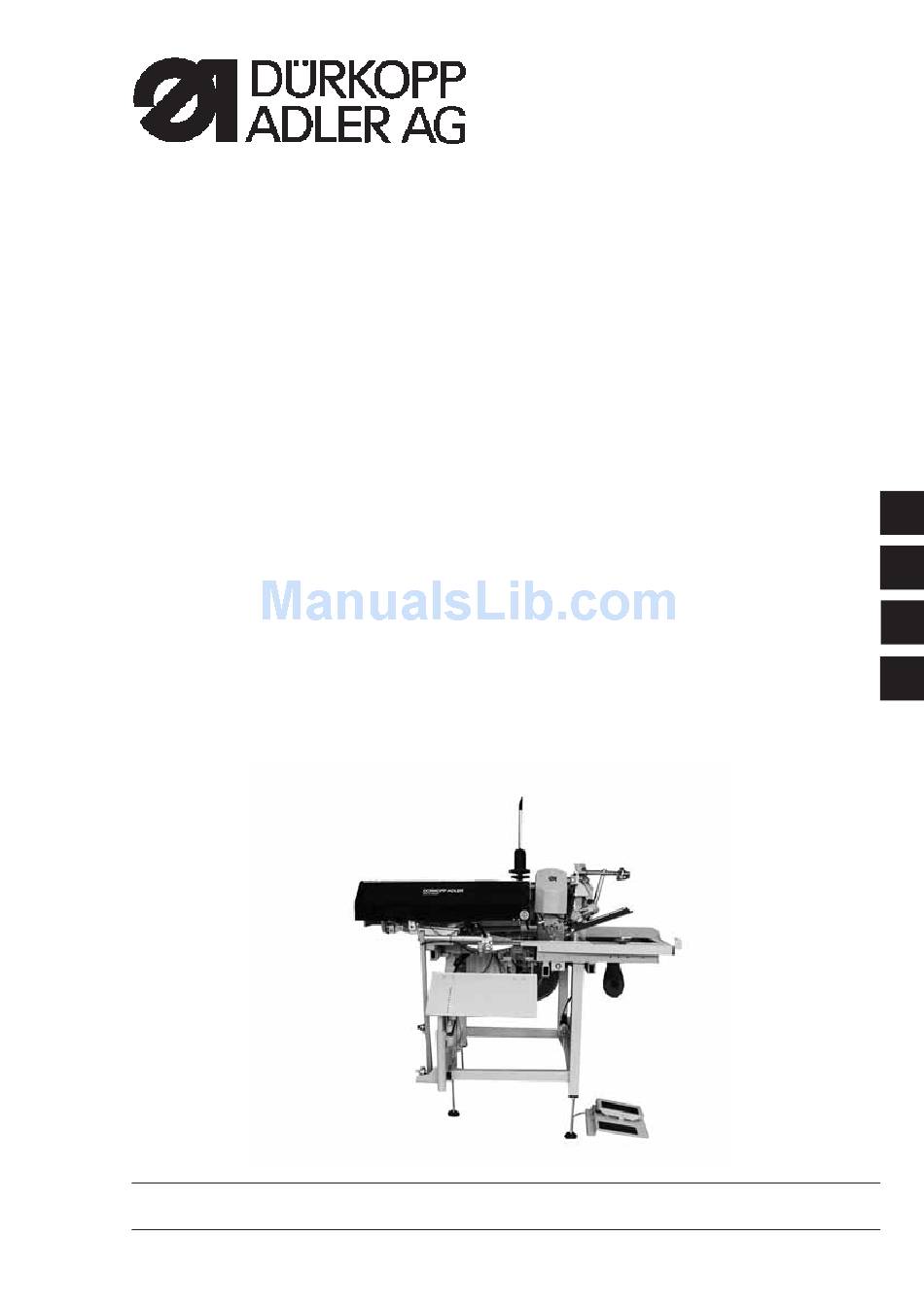

Manual, complete
745 - 34 Speedpocket
Sewing unit for runstitching
of rectangular piped pockets
Instructions for programming DAC
Printed in Federal Republic of Germany
Operating Instructions
Installation Instructions
Service Instructions
Teile-Nr./Part.-No.: 0791 745171
1
2
3
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Adler 745-34 Speedpocket
Summary of Contents for Adler 745-34 Speedpocket
- Page 1 Instructions for programming DAC Postfach 17 03 51, D-33703 Bielefeld • Potsdamer Straße 190, D-33719 Bielefeld Telefon + 49 (0) 5 21 / 9 25-00 • Telefax + 49 (0) 5 21 / 9 25 24 35 • www.duerkopp-adler.com Ausgabe / Edition: 08/2005 Printed in Federal Republic of Germany Teile-Nr./Part.-No.: 0791 745171...
- Page 2 745 - 34 Speedpocket Manual, complete Summary Operating Instructions Installation Instructions Service Instructions Instructions for programming DAC Interconnection diagram 9870 745131 B 9890 745001 B Pneumatic circuit plan 9770 745002...
-
Page 3: Table Of Contents
Page: Part 2: Installation Instructions 745-34 Speedpocket Scope of delivery .......... -
Page 5: Scope Of Delivery
Scope of delivery – Basic sewing unit for runstitching of piped pockets with rectangular pocket corners, consisting of: – Height-adjustable stand (manual) – Step motor for material feed – DC direct sewing drive – Twin needle lockstitch machine – DAC III control with control panel –... -
Page 6: Installing The Sewing Unit
Installing the sewing unit 3.1 Transport ATTENTION ! Do not lift the sewing unit at the table tops. Use an elevating platform truck or a forklift truck. ATTENTION! Before commissioning the sewing unit screw out the stand feet 1 until a secure footing is achieved. -
Page 7: Removing The Securing Devices
3.2 Removing the securing devices Before installing the sewing unit all six securing devices have to be removed. If the sewing unit has to be transported to another place, please use the securing devices again. -
Page 8: Setting The Working Height
3.3 Setting the working height The working height can be set between 79 cm and 98 cm (measured up to the upper edge of the table top). The sewing unit is set to the lowest working height of 79 cm by the manufacturer. -
Page 9: Connecting The Foot Pedal
3.4 Connecting the foot pedal – Push plug 1 of the foot pedal into the plug socket 2 at the stand. -
Page 10: Attaching The Machine Parts Removed For Shipping
Attaching the machine parts removed for shipping 4.1 Thread reel holder – Insert thread reel holder 1 in the drill-hole of the table top and fasten it underneath the table top with nut 4. – Mount and align reel plate 2 and unwinding arms 3 as shown in the illustration. -
Page 11: Fastening The Control Panel And The Bobbin Winder
4.2 Fastening the control panel and the bobbin winder The holder 1 for the control panel and the external bobbin winder is fastened on the right side of the machine head, as seen by the operator. – Fasten control panel 1 on location bolt 3 for the folding station with nut 2. -
Page 12: Pincer Stacker (Optional Equipment)
4.3 Pincer stacker (optional equipment) The pincer stacker 1 (Order No. 0745 427514) is fastened to the stand of the sewing unit with two fastening screws 2. Basic position · Stacker bow at the front, stacker tongs open. The open stacker tongs 3 should be positioned 20-25 mm in front of the table top so that the workpiece can pass by. -
Page 13: Electrical Connection
Electrical connection ATTENTION! Any work on the electrical equipment of the sewing unit must only be carried out by electricians or correspondingly instructed persons. The mains plug must be pulled out. 5.1 Connecting the control panel DAC III The control panel has been removed for shipping. –... -
Page 14: Direction Of Rotation Of The Sewing Motor
5.4 Direction of rotation of the sewing motor The sewing unit is equipped with the latest step motor technology. A check of the direction of rotation is not required because it is automatically set by the control. -
Page 15: Pneumatic Connection
Pneumatic connection For the operation of the pneumatic components the sewing unit has to be supplied with anhydrous compressed air. ATTENTION ! For a trouble-free function of the pneumatic control procedures the compressed air supply must operate as follows: Even at the moment of the highest air consumption the minimum operating pressure must not drop below 6 bar. -
Page 16: Oil Lubrication
– Viscosity at 40° C: 10 mm – Ignition point: 150° C DA-10 is available from the DÜRKOPP ADLER AG sales offices under the following parts numbers: 250 ml Container: 9047 000011 1 l Container: 9047 000012 2 l Container:... -
Page 17: Commissioning
Part 4: Programming Instructions 745-34 Speedpocket. – Positioning and operation are described in Part 1: Operating Instructions 745-34 Speedpocket. Software installation 9.1 General Loading a specific sewing software in the DACIII control unit is possible with the help of the “Programmed Dongle”. The “Programmed Dongle”... -
Page 18: Loading The Program
With the delivery of the machine only the test software (allowing the loading of sewing software) is installed in the control unit. The test software offers no further functions. If the test software gets damaged during the loading process, it is no longer possible to load a software using a dongle. -
Page 19: Dongle-Update Via Internet
Dongles can be updated with programs available from the Dürkopp Adler homepage. Please open our homepage (www.duerkopp-adler.com ) where you will find the relevant programs in the “Download” - section. Prerequisite is our auxiliary download software “ Dongle Copy ” which is available in the same section... - Page 20 Note:...
