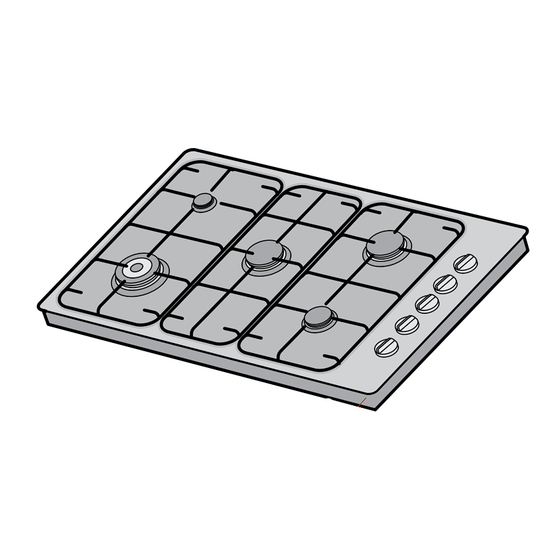

Chef GHS604 (S/W) Installation Manual

Gas cooktop
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual

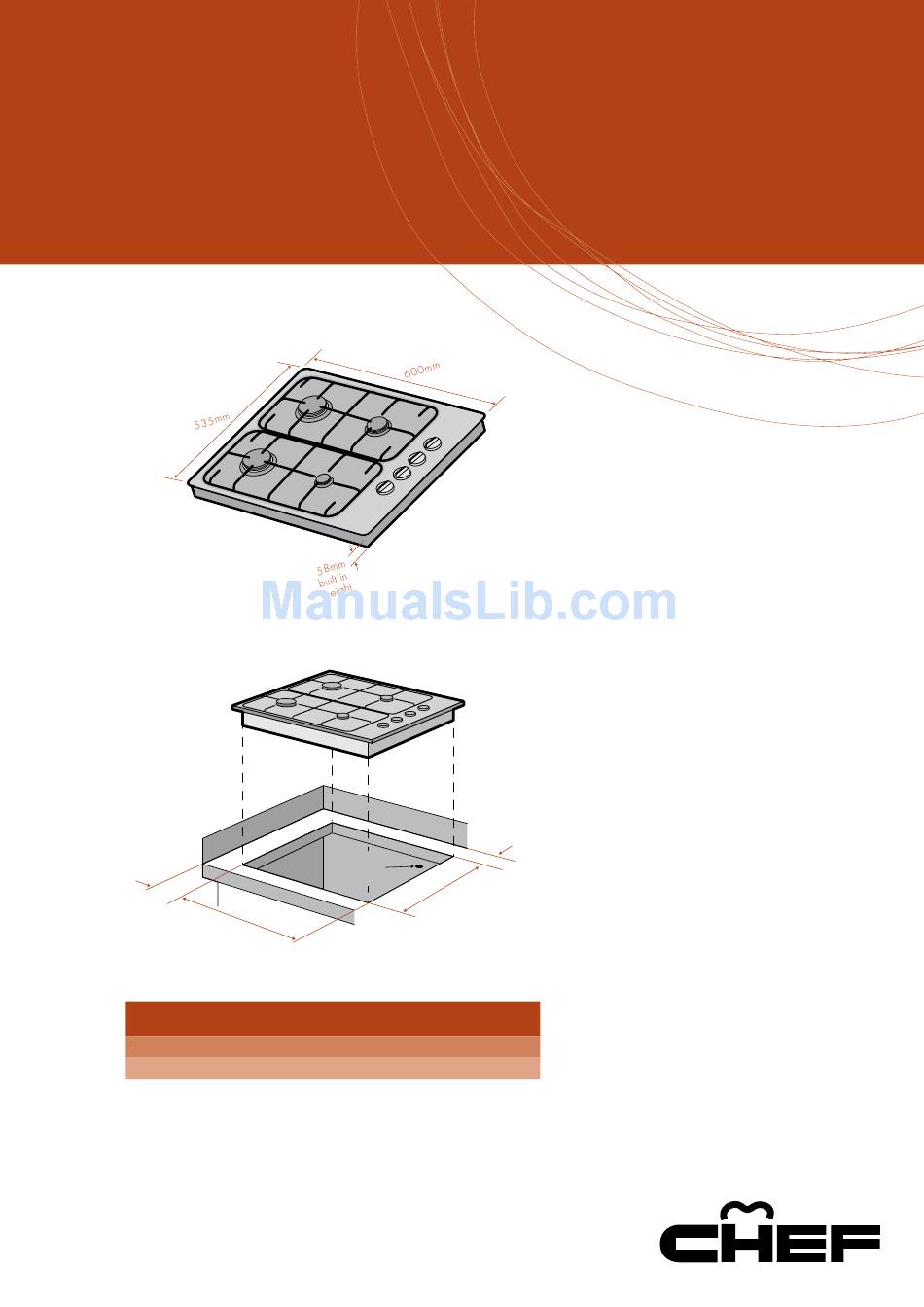

cooktop dimensions

building-in cut-out dimensions
A minimum
570mm
minimum distance to
combustible vertical surface
A
130mm
B
130mm
*
Minimum height of non-combustible surface is 150mm
NOTE: All appliances must be installed to Australian Standard AS5601
All measurements in millimetres.
Current as at Dec 2006.
© 2006 Electrolux Home Products Pty Ltd. CDIMGHS/GHC600mm
installation guide
models: GHS604 (S/W), GHC604 (S/W), GHS614 (S/W),
B minimum
Gas supply
connection
490mm
minimum distance to
non-combustible vertical surface*
50mm
50mm
chef gas cooktops
GHC614 (S/W), GHCF644S
Walls around cooktop
must be heat resistant for
temperatures up to 90°C
to a height of 150mm
above the bench top.
GHC and GHCF models
supplied with 10Amp
plug and lead.
