- Page 1 INDUCTION COOKTOPS User Manual MODELS CHI644BB, CHI944BB...
-
Page 2: Table Of Contents
CONGRATULATIONS CONTENTS Congratulations and thank you for choosing our Induction General safety ...................3 Cooktop. We are sure you will find your new appliance a Installation instructions ................4 pleasure to use and a great asset to your cooking. Before Assembly ....................5 you use the appliance, we recommend that you read through Product description ................7 the whole user manual which provides a description of the... -
Page 3: General Safety
general safety How to prevent damage to the appliance. Safety information For your safety and correct operation of the appliance, read • If objects or cookware fall on the glass, the surface can be damaged. this manual carefully before the installation and use. Always keep these instructions with the appliance if you move or sell •... -
Page 4: Installation Instructions
Seal the appliance to the worktop with no space between PNC:949163463 M M L L : : 0 0 0 0 with a correct sealant. MODEL: CHI644BB Made in China 220 - 240V • Keep the bottom of the appliance safe from steam and Induction 6.5kW... -
Page 5: Assembly
assembly min. 600mm min. 50mm min. 50mm NOTE : The clearance must meet or exceed the minimum recommended for both the rangehood and cooktop. Refer to the rangehood installation manual. Induction Cooktops ASSEMBLY 5... - Page 6 CHI644BB CHI944BB 6 ASSEMBLY Induction Cooktops...
-

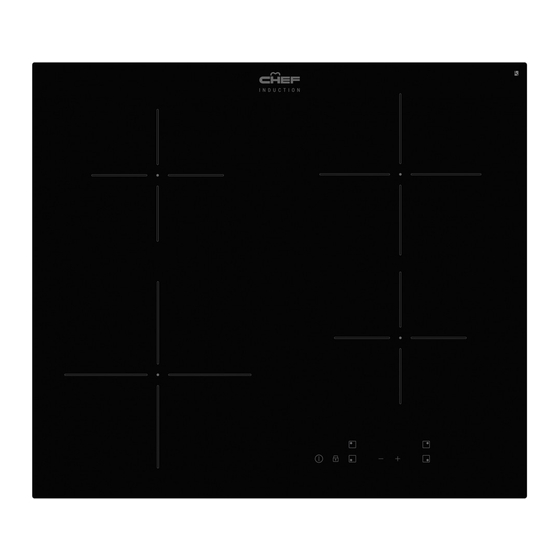

Page 7: Product Description
General overview Operating the sensor field CHI644BB CHI644BB Sensor field Function Activates and deactivates the appliance Locks/unlocks the control panel Activates the cooking zone Increases and decreases the heat settings Heat setting display Shows the heat setting Heat setting displays... - Page 8 CHI944BB Induction cooking zone 1400 W, with Power function 2500 W (minimum cookware diameter =125 mm). Induction cooking zone 1800 W, with Power function 2800 W (minimum cookware diameter =145 mm). Induction cooking zone 1400 W, with Power function 2500 W (minimum cookware diameter =125 mm). Control panel Induction cooking zone 2300 W, with Power function 3200 W (minimum cookware diameter =180 mm).
-
Page 9: Operating Instructions
operating instructions Activation and deactivation • You spill something or put something on the control panel for more than 10 seconds, (a pan, a cloth etc.) Remove the Touch for 1 second to activate or deactivate the appliance. object or clean the control panel. Automatic switch off •... - Page 10 • To see the remaining time: set the cooking zone with Automatic heat up (CHI944BB only) The indicator of the cooking zone starts to flash You can get a necessary heat setting in a shorter time if you quickly. The display shows the remaining time. When activate the Automatic Heat Up function.
- Page 11 Operating the function automatically 5. Touch of the Timer to select an automatic mode (CHI944BB only) TIPS & INFORMATION IMPORTANT The default automatic mode from the factory is H5. You can To operate the hood directly on the hood panel deactivate change the automatic mode by following the instructions the automatic mode of the function.
-
Page 12: Helpful Hints And Tips
helpful hints and tips tips & information TIPS & INFORMATION environmental tips ENVIRONMENTAL TIPS Use the correct cookware induction cooktop. Energy saving Cookware for induction cooking zones • If it is possible, always put the lids on the cookware. Important! For induction cooking zones a strong •... - Page 13 The Examples of cooking applications The data in the table is for guidance only. Heat setting Time Hint Keep food warm As required Keep cookware covered Hollandaise sauce, melt: butter, chocolate 1–2 5–25mins Stir from time to time and gelatine 1–2 Solidify: fluffy omelettes and baked eggs 10–40mins...
-
Page 14: Care And Cleaning
care and cleaning To remove the dirt: Clean the appliance after each use. Always use cookware with clean bottom. 1. • Remove immediately: melted plastic, plastic foil, and food with sugar. If not, the dirt can cause damage to the warning WARNING appliance. - Page 15 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE AND REMEDY REMEDY You cannot activate or operate the hob. The hob is not connected to an electrical supply Check if the hob is correctly connected to or it is connected incorrectly. the electrical supply. Refer to the connection diagram.
-
Page 16: Environment Concerns
environmental concerns PNC: 949163298 Model: CHI643BA The symbol 220 - 240 V AC on the product or on its packaging indicates S NO.: 50Hz 7.4 KW that this product may not be treated as household waste. Made in China By Electrolux Home Products Pty Ltd (240)949163C298(21)xxxxxxxx(20)00... - Page 17 notes...
- Page 18 notes...
-
Page 19: Warranty
(c) ‘ASC’ means Electrolux’s authorised serviced centres; the Appliance; (d) ‘Chef’ and ‘Westinghouse’ are brands controlled by Electrolux Home In addition, Electrolux is not liable under this warranty if: Products Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN... - Page 20 Contact us if you need more help Australia phone: ............... 13 13 49 email: ........ customercare@electrolux.com.au website: ............chef.com.au WE ARE PART OF THE ELECTROLUX FAMILY. TO ADD A TOUCH OF PROFESSIONAL INSPIRATION TO YOUR HOME, VISIT ELECTROLUX.COM © 2020 Electrolux Home Products Pty Ltd.
