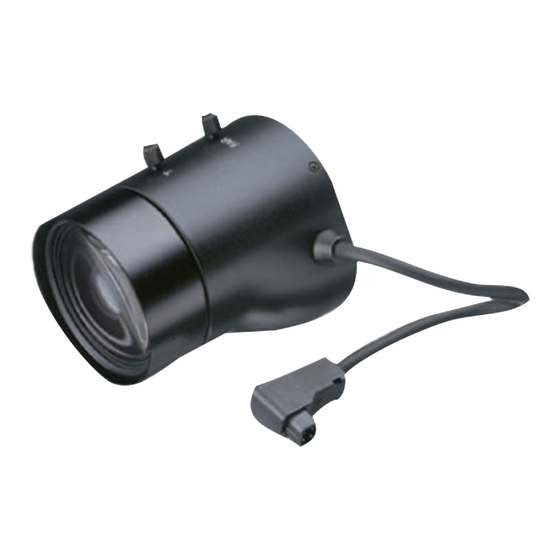

Varifocal Lenses
www.boschsecurity.com
For optimizing angular fields right on site, varifocal
lenses are the most versatile and practical solution
available. These lenses allow for setting virtually any
angle of field, which maximizes surveillance effects.
Installers do not need to carry several different focal
length lenses – and installation is more efficient
because they can find the right angles of field without
moving the camera set-up. If the field-of-view
requirements change after installation, modification is
simple by just altering the lens' focal length settings.
Functions
This series includes several DC-iris varifocal lenses.
They are compact, rugged, and available in 1/3-inch
and 1/2- inch image formats. The series is organized
by sensitivity, optical resolution, and range to match
the wide range of Dinion camera applications.
These varifocal lenses come with a standard C or CS
mount for use with a variety of cameras. The DC-iris
control connection is a four-pin standard plug that fits
directly into the camera's iris output. And the lenses
deliver impressive optical quality due to their high
standards for resolution, contrast reproduction, and
coating.
High-quality optics
u
1/3-inch and 1/2-inch formats
u
Reliable, robust construction
u
Focal length options
u
Compact design
u
The mechanical construction is designed to withstand
both frequent DC-iris control operations and the
environmental stress of security installations. For
flexible, high-quality, reliable lenses that match a
camera's performance, this varifocal series is the ideal
solution.
Certifications and approvals
Region
Certification
Europe
CE

Advertisement

loading

  Related Manuals for Bosch LTC 3364/50

  Summary of Contents for Bosch LTC 3364/50

  • Page 1 Video | Varifocal Lenses Varifocal Lenses www.boschsecurity.com High-quality optics 1/3-inch and 1/2-inch formats Reliable, robust construction Focal length options Compact design For optimizing angular fields right on site, varifocal The mechanical construction is designed to withstand lenses are the most versatile and practical solution both frequent DC-iris control operations and the available.
  • Page 2: Technical Specifications

    (1.78) (1.83) Order number LTC 3364/41 LTC 3374/50 61.5 44 (1.73) 52.2 44.4 LTC 3364/50 Varifocal Lens (2.42) (2.06) (1.75) 1/3-inch, 2.8 – 10 mm, DC-iris, CS-mount, F1.4-360, 4 pin Order number LTC3364/50 LTC 3364/60 Varifocal Lens 1/3-inch, 3.5 – 8 mm, DC-iris, CS-mount F1.4-360, 4-...
  • Page 3 3 | Varifocal Lenses LTC 3374/50 Varifocal Lens 1/3-inch, 5 – 50 mm, DC-iris, CS-mount F1.7-360, 4-pin Order number LTC3374/50 LTC 3374/21 Varifocal Lens 1/3-inch, 5 to 50 mm, DC-iris, CS-mount F1.4-360, 4- Order number LTC 3374/21 Varifocal Lens 960H, 1/3-inch, 3-8 mm, DC-iris, CS-mount F1.0, IR corrected lens Order number LTC 3664/31...
  • Page 4 4 | Varifocal Lenses Varifocal Lenses 1/3 and 1/2 inch LTC 3364/50 Varifocal LTC 3364/60 Varifocal LTC 3364/41 Varifocal LTC 3374/50 Varifocal Lens Lens Lens Lens Image format 1/3 inch 1/3 inch 1/3 inch 1/3 inch Focal length 2.8 – 10 mm 3.5 –...
  • Page 5 Fax: +65 6571 2699 Phone +86 21 22181111 Fax: +55 19 2103 2862 www.boschsecurity.us www.boschsecurity.com apr.securitysystems@bosch.com Fax: +86 21 22182398 latam.boschsecurity@bosch.com www.boschsecurity.asia www.boschsecurity.com.cn www.boschsecurity.com © Bosch Security Systems 2013 | Data subject to change without notice 2045875595 | en, V9, 04. Oct 2013...
