GE Profile PT960DPBB Dimensions And Installation Information

Cutout width
PT960DP
28-1/2'' MIN.
28-5/8'' MAX.

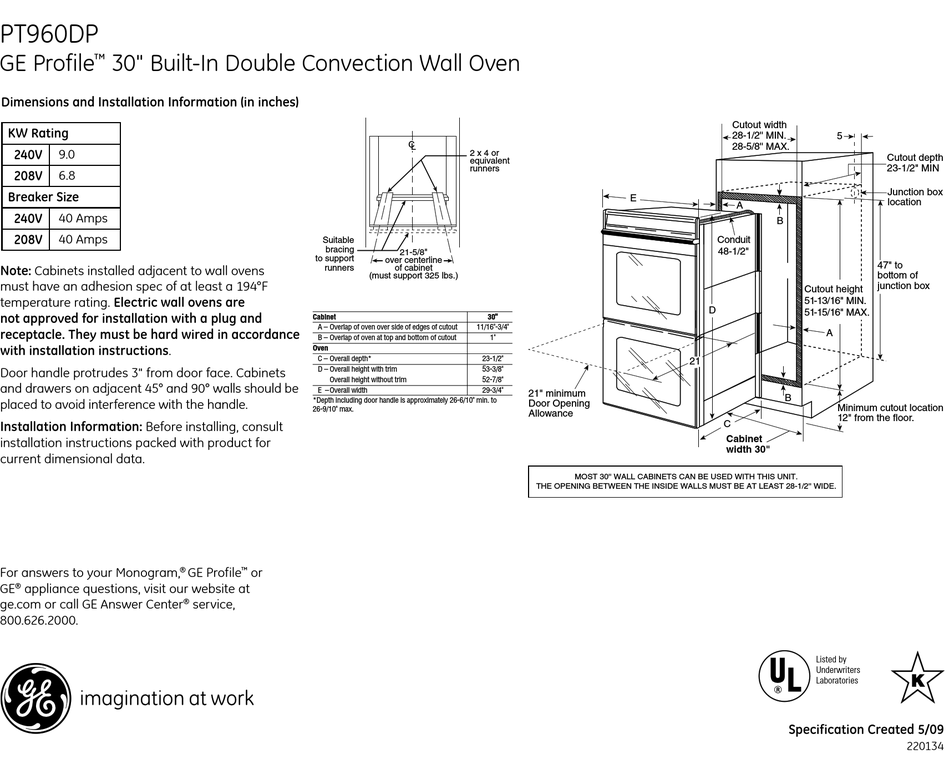

GE Profile 30" Built-In Double Convection Wall Oven
™
E
Dimensions and Installation Information (in inches)
A
B
KW Rating
Conduit
(72"
240V
9.0
long)
208V 6.8
Cutout height
Breaker Size
51-13/16" MIN.
D
240V 40 Amps 51-15/16" MAX.
208V 40 Amps
Note: Cabinets installed adjacent to wall ovens 21
must have an adhesion spec of at least a 194°F
temperature rating. Electric wall ovens are
B
not approved for installation with a plug and
receptacle. They must be hard wired in accordance
C
with installation instructions.
Cabinet
width 30"
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.
5
Cutout depth
23-1/2" MIN
Junction box
location
47" to
bottom of
junction box
A
Suitable
bracing
to support
runners
Minimum cutout location Cabinet
12" from the floor. A – Overlap of oven over side of edges of cutout
B – Overlap of oven at top and bottom of cutout
Oven
C – Overall depth*
D – Overall height with trim
Overall height without trim
E – Overall width
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
GE Profile or
® ™
service,
®
C L
2 x 4 or
equivalent
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
30"
11/16"-3/4"
1"
23-1/2"
53-3/8"
52-7/8"
29-3/4"
21" minimum
Door Opening
Allowance
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
E
A
Conduit
48-1/2"
D
21
C
Cabinet
width 30"
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
5
Cutout depth
23-1/2" MIN
Junction box
location
B
47" to
bottom of
junction box
Cutout height
51-13/16" MIN.
51-15/16" MAX.
A
Suitable
to support
B
Minimum cutout location Cabinet
12" from the floor. A – Overlap of
B – Overlap of
Oven
C – Overall de
D – Overall he
E – Overall wid
*Depth includin
26-9/10" max.
Listed by
Underwriters
Laboratories
Specification Created 5/09
220134
