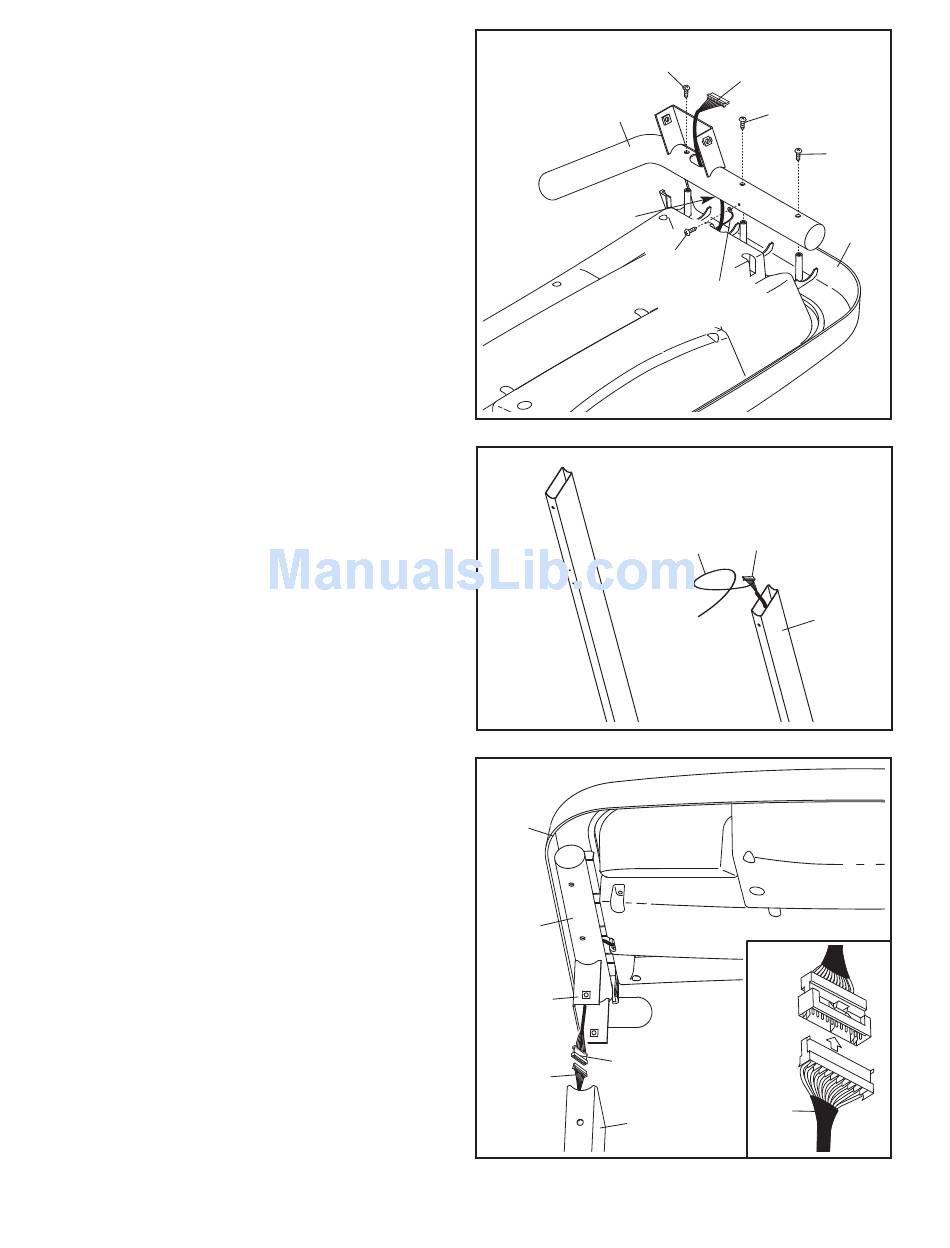

6. Set the Console (68) face down on a soft sur-
face to avoid scratching the Console. Identify the
Right Handrail (40), which has a large hole in the
location shown. Hold the Right Handrail near the
Console. Insert the console wire into the large
hole in the Right Handrail and out of the top as
shown. Next, attach the Right Handrail with
three 3/4" Screws (3). Make sure that no wires
are pinched. Start all three Screws before
tightening any of them; do not overtighten
the Screws.
Next, attach the console ground wire to the Right
Handrail (40) with a Silver Ground Screw (10).
Attach the Left Handrail (not shown) to the
Console (68) in the same way. Note: There are
no wires on the left side of the Console.
7. Locate the wire in the upper end of the Right
Upright (39). Pull the wire until the end of the
Upright Wire (69) is extending from the Right
Upright. Then, untie and discard the wire.
8. Connect the Upright Wire (69) to the console
wire. Make sure to connect the connectors
properly (see the inset drawing). The connec-
tors should slide together easily and snap
into place. If they do not, turn one connector
and try again. IF THE CONNECTORS ARE NOT
CONNECTED PROPERLY, THE CONSOLE
MAY BE DAMAGED WHEN THE POWER IS
TURNED ON. Then, insert the connectors and
the excess wire into the Right Upright (39).
Next, insert the bracket on the Right Handrail
(40) into the Right Upright (39) and insert the
bracket on the Left Handrail (not shown) into the
Left Upright (not shown). Make sure that no
wires are pinched.
