Frigidaire
P.O. BOX 212378
AUGUSTA, GA 30917
Product No.
LFUH21F7LM0
Series
Precision
Color
silver mist
Volts
115V
Wiring Diagram 297246001
Owner's Guide 297281400
Market
North America
Energy Guide
297089305

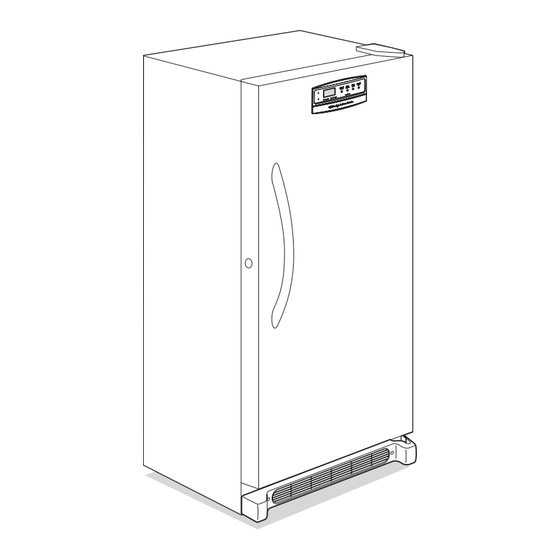

UPRIGHT FREEZER
Publication No.
5995562625
10/03/30
(EN/SERVICE/MLR)
365
Model No.
LFUH21F7LM
