Product No.
TDB210RFB5 TDB210RFS5
Series
24" Built-in
Color
black
Owner's Guide English 154648801
Owner's Guide Spanish 154648803
Owner's Guide French
154648802
Service Data Sheet
154441201
Energy Guide
154678501
Installation Instructions 154427301
Market
North America North America
Publication No.
5995519120
08/07/17
(EN/SERVICE/ECL)
821
24" Built-in
white
154648801
154648803
154648802
154441201
154678501
154427301

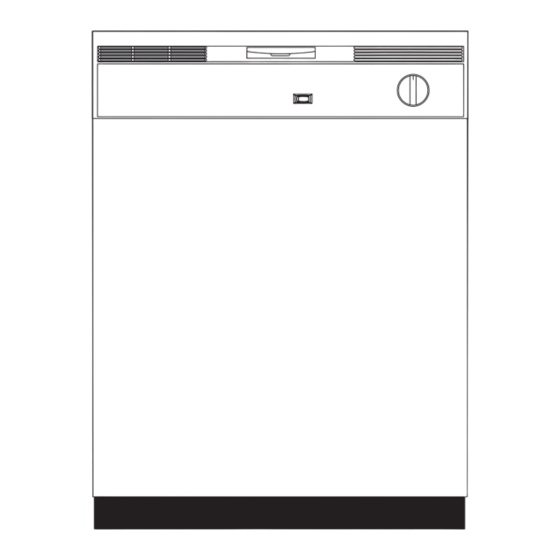

24-INCH BUILT-IN
DISHWASHER
Model No.
TDB210RF
©
Copyright
2008 Electrolux Home Products, Inc.
All rights reserved.
Advertisement
Related Manuals for Tappan TDB210RF
Summary of Contents for Tappan TDB210RF
- Page 1 24-INCH BUILT-IN P30L0080.eps P30C0159.eps P30B0045.eps P30U0024.eps P30M0030.eps P30F0022.eps DISHWASHER P30R0045.eps Electrolux Major Appliances Model No. North & Latin America TDB210RF P.O. BOX 212378 AUGUSTA, GA 30917 Publication No. 5995519120 08/07/17 (EN/SERVICE/ECL) © Copyright 2008 Electrolux Home Products, Inc. All rights reserved.
-
Page 2: Control Panel
Publication No: 5995519120 TDB210RF CONTROL PANEL 07/08... - Page 3 TDB210RF Publication No: 5995519120 CONTROL PANEL Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154667301 Panel, control, white, w/graphics 154667303 Panel, control, black, w/graphics 154437801 Timer 154095701 Screw, thread rolling, (2), timer 154131204 Shield, timer...
- Page 4 Publication No: 5995519120 TDB210RF DOOR 07/08...
- Page 5 TDB210RF Publication No: 5995519120 DOOR Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154430501 Spring, door, (2) 154325201 Linkage, door spring, (2) 154093301 Screw, arm assy, (4) 154691401 Arm Assy, LH 154691301 Arm Assy, RH...
- Page 6 Publication No: 5995519120 TDB210RF 07/08...
- Page 7 TDB210RF Publication No: 5995519120 Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154730001 Tub assy, w/frame parts, white, tower 154662601 Strike, door 154561001 Gasket, tub 154200602 Screw, 10-16 x 3/8, hex 154333902 Roller, tub 5303943103...
-
Page 8: Motor & Pump
Publication No: 5995519120 TDB210RF MOTOR & PUMP 07/08... - Page 9 TDB210RF Publication No: 5995519120 MOTOR & PUMP Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154247601 Heater 154106202 Nut, heater, (2) 154289801 Shield, heater terminal 154479601 Bracket, heater, (2) 154335301 Cover, volute 154246801 Gasket, sump...
- Page 10 Publication No: 5995519120 TDB210RF FRAME 07/08...
- Page 11 TDB210RF Publication No: 5995519120 FRAME Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154637401 Valve, water 154669301 Brace, front frame 154589401 Toeplate, adjustable, white 154589403 Toeplate, adjustable, black 154589501 Kickplate Assy, white 154589503 Kickplate Assy, black...
- Page 12 Publication No: 5995519120 TDB210RF RACKS 07/08...
- Page 13 TDB210RF Publication No: 5995519120 RACKS Model Index: A TDB210RF (TDB210RFS5) B TDB210RF (TDB210RFB5) POS. NO PART NO. DESCRIPTION 154331604 Rack assy, lower 5300808994 Basket, silverware 154331502 Rack assy, upper 154522901 Wheel & bushing assy, upper rack, (8) 5300809927 Cap, slide, (4)
