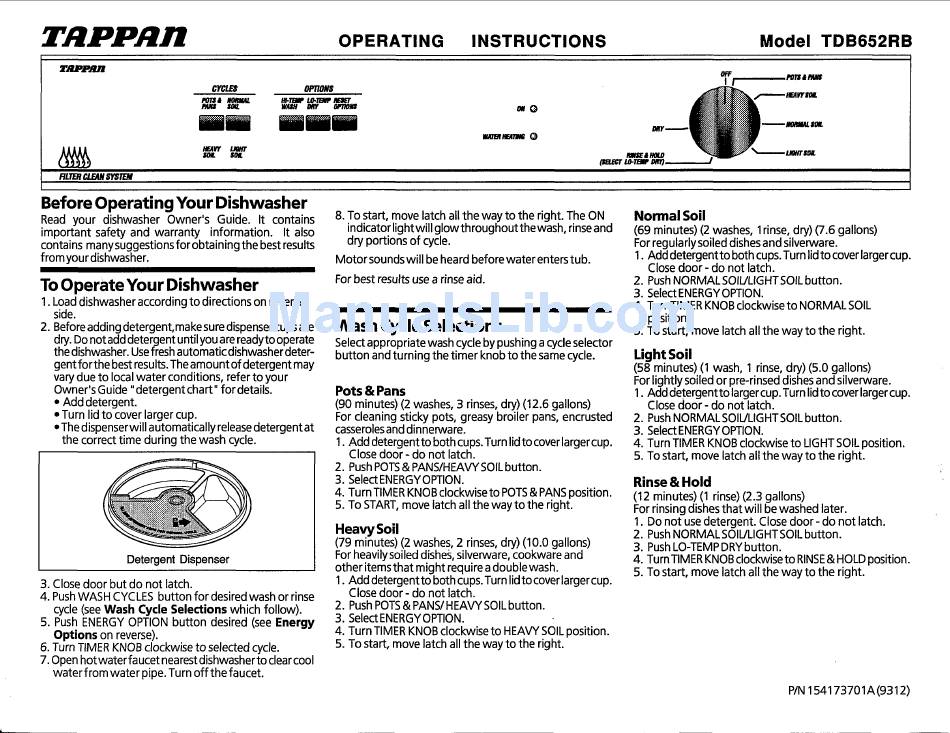

OPERATING INSTRUCTIONS Model TDB652RB
f,q.PA_ZH OFF
I I _
C_
POT841
_P_oXs
IF_.TBW LO-_IW
HF_W l..tetlT
SfML mWE dl HOI._
rm.g'r Le-ma,Kn_
RLIERCLF.MI SYSTEM
Before Operating Your Dishwasher
Read your dishwasher Owner's Guide. It contains
important safety and warranty information. It also
contains manysuggestions for obtaining the best results
from your dishwasher.
To Operate Your Dishwasher
1. Load dishwasher according to directions on reverse
side.
2. Before adding detergent, make sure dispenser cups are
dry. Do not add detergent until you are readyto operate
the dishwasher. Usefresh automatic dishwasher deter-
gent for the best results. The amount of detergent may
vary due to local water conditions, refer to you r
Owner's Guide "detergent chart" for details.
• Add detergent.
• Turn lid to cover larger cup.
• The dispenserwill automatically releasedetergent at
the correct time during the wash cycle.
Detergent Dispenser
3. Close door but do not latch.
4. PushWASH CYCLES button for desired wash or rinse
cycle (see Wash Cycle Selections which follow).
5. Push ENERGYOPTION button desired (see Energy
Options on reverse).
6. Turn TIMER KNOB clockwise to selected cycle.
7. Open hot water faucet nearest dishwasher to clearcool
water from water pipe. Turn off the faucet.
8. To start, move latch all the way to the right. The ON
indicator light will glow throughout the wash, rinseand
dry portions of cycle.
Motor sounds will be heard before water enters tub.
For best results use a rinse aid.
Wash Cycle Selections
Select appropriate wash cycle by pushing a cycleselector
button and turning the timer knob to the same cycle.
Pots & Pans
(90 minutes) (2 washes, 3 rinses, dry) (12.6 gallons)
For cleaning sticky pots, greasy broiler pans, encrusted
casserolesand dinnerware.
1. Add detergent to both cups.Turn lidto cover larger cup.
Close door - do not latch.
2. PushPOTS& PANS/HEAVYSOILbutton.
3. SelectENERGYOPTION.
4. Turn TIMERKNOB clockwise to POTS& PANSposition.
5. To START,move latch all thewayto the right.
HeavySoil
(79 minutes) (2 washes, 2 rinses, dry) (10.0 gallons)
Forheavily soiled dishes, silverware, cookware and
other items that might require a doublewash.
1. Add detergent to both cups.Turn lid to cover larger cup.
Close door - do not latch.
2. PushPOTS& PANS/HEAVY SOILbutton.
3. SelectENERGYOPTION.
4. Turn TIMER KNOB clockwise to HEAVYSOILposition.
5. To start, move latch all the way to the right.
Normal Soil
(69 minutes) (2 washes, I rinse, dry) (7.6 gallons)
For regularly soiled dishes and silverware.
I. Add detergent to both cups.Turn lid to cover larger cup.
Close door - do not latch.
2. PushNORMAL SOIL/LIGHTSOILbutton.
3. Select ENERGYOPTION.
4. TurnTIMER KNOBclockwise to NORMAL SOIL
position.
5. To start, move latch all the way to the right.
LightSoil
(58 minutes) (I wash, I rinse, dry) (5.0 gallons)
For lightly soiled or pre-rinsed dishes and silverware.
I. Add detergent to larger cup. Turn lid to cover larger cup.
Close door- do not latch.
2. PushNORMALSOILILIGHTSOILbutton.
3. Select ENERGY OPTION.
4. Turn TIMER KNOB clockwise to LIGHTSOILposition.
5. To start, move latch all the way to the right.
Rinse & Hold
(12 minutes) (1 rinse) (2.3 gallons)
For rinsing dishes that will be washed later.
1. Do not use detergent. Close door - do not latch.
2. PushNORMAL SOIL/LIG HT SOILbutton.
3. PushLO-TEMPDRY button.
4. TurnTIMER KNOBclockwise to RINSE & HOLD position.
5. To start, move latch all the way to the right.
PIN 154173701A (9312)
