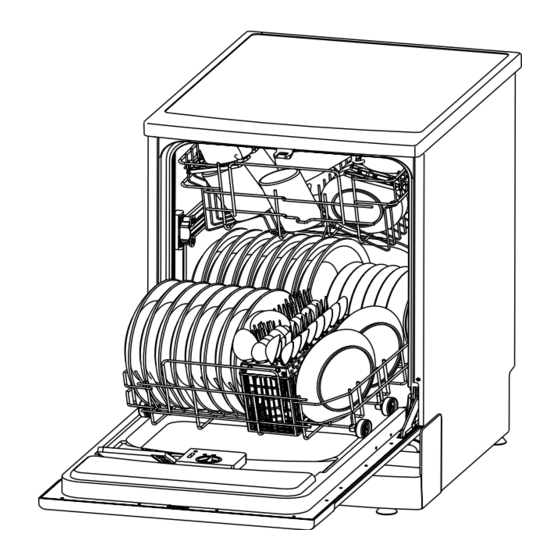

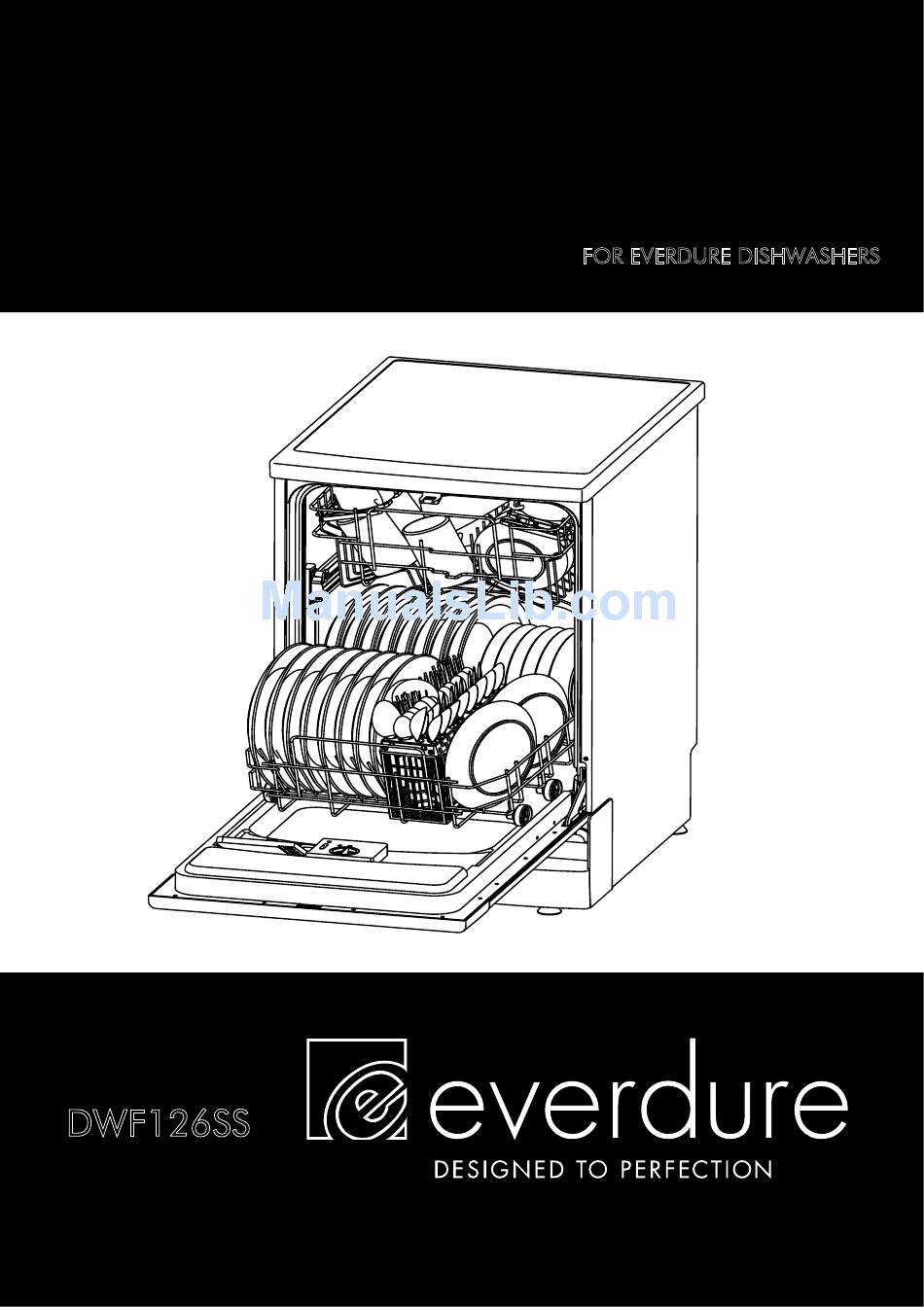

- Page 1 INSTALLATION, OPERATION & MAINTENANCE INSTRUCTIONS FOR EVERDURE DISHWASHERS Models Included: DWF126SS KIMBERLEY INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS...
-
Page 2: Quick Operation
Quick Operation Guide For detailed operating instructions, please refer to the corresponding content under “Operating Instructions” in section 2 Switch on the appliance Press the On/Off button to switch on the appliance. Open the door. Compartment A: Fill main-wash detergent. Compartment B: Fill the detergent dispenser Fill pre-wash detergent. -
Page 3: Table Of Contents
1) Technical Information............1 Read this Manual 2) Safety Information............2 Dear Customer, Please carefully read this manual before using the dishwasher, it will help you to use and maintain the 3) Operating Instructions............3 dishwasher properly. Control Panel..............3 Keep it to refer to it at a later date. Dishwasher Features............3 Pass it on to any subsequent owner of the appliance. -
Page 4: Technical Information
1. Technical Information Height : 850mm Width : 600mm Depth : 580mm Voltage connected Load : see rating label Water pressure: 0.04-1.0MPa Hot water connection : max 60 degrees Power supply: see rating label Capacity: 12 Place settings... -
Page 5: Safety Information
2.IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING! When using your dishwasher, follow the below basic precautions including the following: WARNING! HYDROGEN GAS IS EXPLOSIVE Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two weeks or more. -
Page 6: Operating Instructions
3.Operation Instruction IMPORTANT To maintain the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Power button: To turn on/off the power supply. Delay button: press the button to select desired delay time Power indicator: To show the power supply. -
Page 7: Installation Instruction
4.Installation instruction Positioning the Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. -
Page 8: Water Connection
How to Connect the safety supply hose The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Water pressure must be between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. -
Page 9: Start Of Dishwasher
Drain hose Connection Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 40 and 100cm and must not be immersed in water. -
Page 10: Prior Using For The First Time
5.Prior using irst Before using your dishwasher for the first time: A. Fill the rinse aid dispenser Fill in detergent A. Fill the Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. -
Page 11: Function Of Detergent
Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. -
Page 12: Amount Of Detergent To Use
Amount of Detergent to Use Detergent powder Detergent tablet Push latch to open NOTE: If the lid is closed: press release button. The lid will spring open. Always add the detergent just before starting each wash cycle. Only use branded detergent aid for dishwasher. WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. -
Page 13: Loading The Dishwasher Basket
6.Loading the Dishwasher Baskets Recommendation Consider buying utensils that are identified as dishwasher-proof. Use a mild detergent that is described as. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. For washing in the dishwasher the following cutlery/dishes Are not suitable Are of limited suitability... -
Page 14: Loading The Upper Basket
Loading the Upper Basket The upper basket is designed to hold more delicate and lighter dishware such as glass cups, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not overly soiled). Position the dishes and cookware so that they will not be moved by the spray of water. -
Page 15: Cutlery Basket
Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. -
Page 16: Starting A Washing Programe
7.Starting a washing program Wash Cycle Table Description Detergent Cycle Selection Running Energy Water Rinse Program of Cycle pre/main Information time(min) (Kwh) Pre-wash(50¡) For the heaviest soiled loads, such as pots, pans, Wash (65¡) casserole dishes and dishes 5/25g Rinse that have been sitting with Rinse dried food on them for a... -
Page 17: Turning On The Appliance
Turning On the Appliance Premise: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section 3(B) entitled “Function of Detergent”... -
Page 18: Maintenance And Cleaning
8.Maintenance and Cleaning Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter, a main filter, and a micro filter (Fine filter). -
Page 19: How To Maintain Your Dishwasher
How to Maintain Your Dishwasher After Every Wash When not in Use for Extended Periods or Holidays After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside. It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the Remove the Plug... -
Page 20: Caring For The Dishwasher
Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: The entire filter assembly should be cleaned once a week. Cleaning the Filter To clean the coarse filter and the fine filter, use a cleaning brush. -
Page 21: Troubleshooting Tips
9.Troubleshooting Tips Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesnt Fuse blown, or Replace fuse or reset circuit breaker. Remove any other circuit breaker appliances sharing the same circuit with the dishwasher start... -
Page 22: Error Codes
Problem Possible Causes What To Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent.
