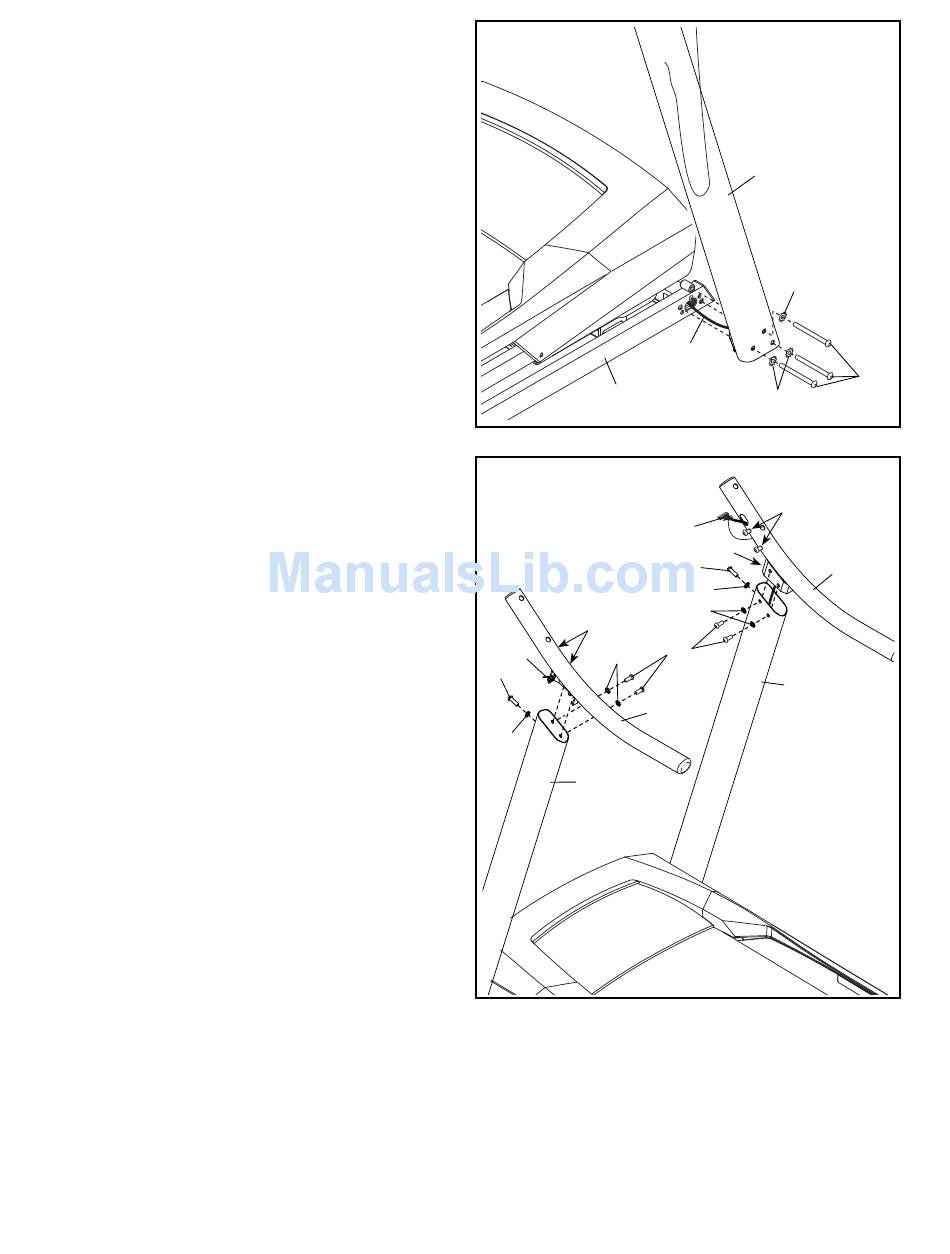

5. Hold the Right Upright (76) against the Base
(74). Be careful not to pinch the Upright
Wire (63).
Insert a 3/8" x 3 1/4" Screw (2) with a 3/8" Star
Washer (3) into the top hole in the Right Upright
(76). Then, partially tighten the Screw into the
Base (74).
Partially tighten two more 3/8" x 3 1/4" Screws
(2) with two 3/8" Star Washers (3) into the Right
Upright (76) and the Base (74); do not fully
tighten the Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
6. Identify the Left and Right Handrails (59, 64).
Remove and save the two 5/16" x 3/4" Screws
(5) in the side of each Handrail. The Screws will
be used in a later step. If there are ties in the
locations shown, remove them.
Hold the Right Handrail (64) near the Right
Upright (76). Insert the wire tie on the Upright
Wire (63) through the hole in the bottom of
the Right Handrail and pull it out of the hole in
the side as shown. Then, pull the Upright Wire
through the Right Handrail.
Attach the Right Handrail (64) to the Right
Upright (76) with an M8 x 25mm Bolt (8), two
5/16" x 5/8" Screws (56), and three M8 Star
Washers (79) as shown. Make sure not to
pinch the Upright Wire (63). Start the Bolt and
both Screws, and then tighten them.
Attach the Left Handrail (59) to the Left
Upright (66) as described above. Note: There
are no wires on the left side.
