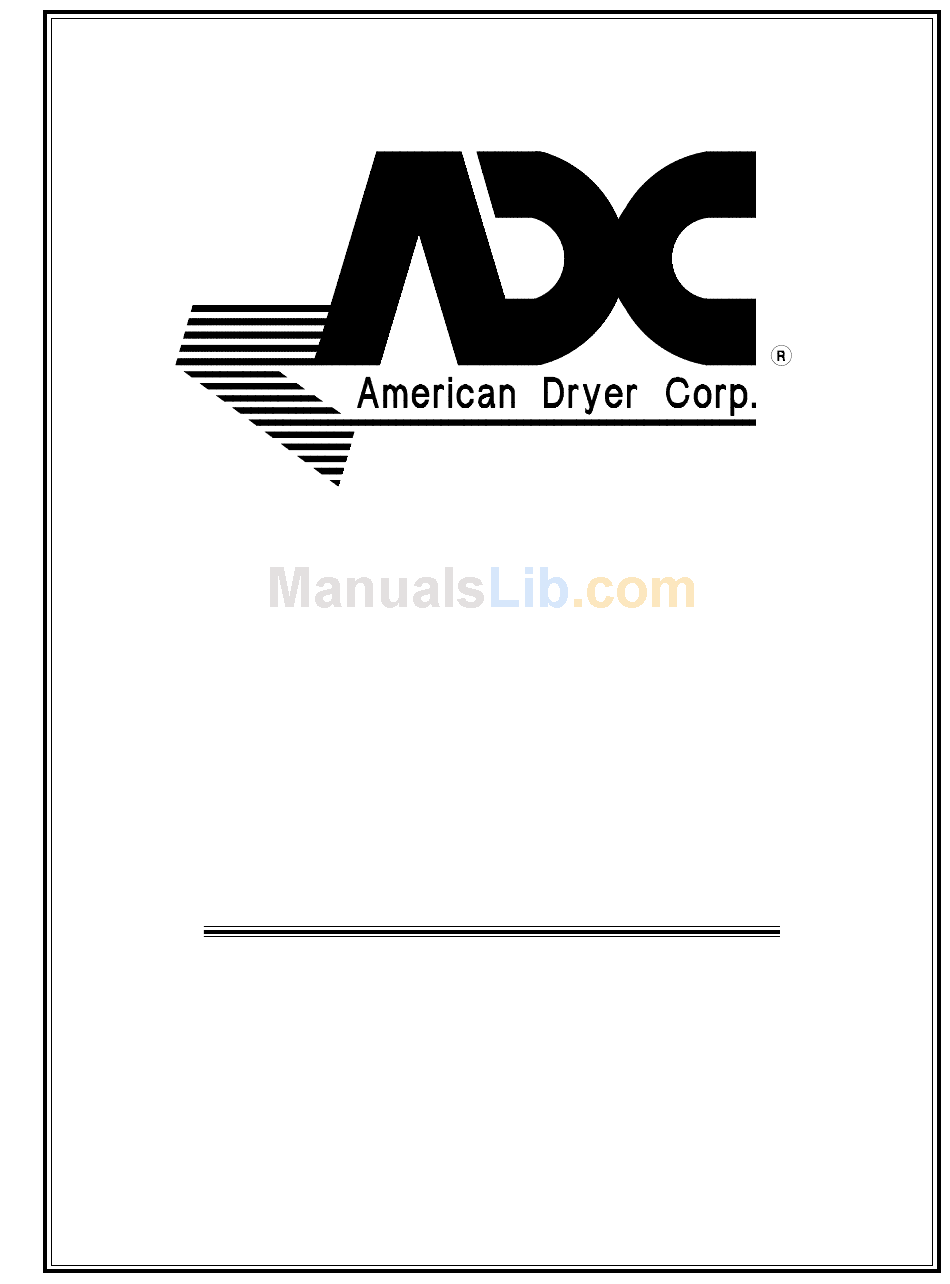

ML-75 Parts Manual
Dual Timer/Phase 7 OPL
with FSS Options
Through June 2002
American Dryer Corporation
88 Currant Road
Fall River, MA 02720-4781
Telephone: (508) 678-9000 / Fax: (508) 678-9447
E-mail: techsupport@amdry.com
www.amdry.com
ADC Part No. 450565

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML-75 Phase 7 and is the answer not in the manual?

Questions and answers

Related Manuals for American Dryer Corp. ML-75 Phase 7

Summary of Contents for American Dryer Corp. ML-75 Phase 7

  • Page 1 ML-75 Parts Manual Dual Timer/Phase 7 OPL with FSS Options Through June 2002 American Dryer Corporation 88 Currant Road Fall River, MA 02720-4781 Telephone: (508) 678-9000 / Fax: (508) 678-9447 E-mail: techsupport@amdry.com www.amdry.com ADC Part No. 450565...
  • Page 2 These instructions must be posted in a prominent location near the dryer. POUR VOTRE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil. Important MODEL NO. __________________________ ML-75 Phase 7...

  • Page 3: Table Of Contents

    Table of Contents Phase 7 OPL Microprocessor Control Door Assembly ... 3 Dual Timer Control Door Assembly ... 4 Phase 7 OPL Microprocessor Control Door Assembly ... 5 Dual Timer “Tap Touch” Controls ... 6 Phase 7 OPL Microprocessor Control Box Assembly ... 7 Dual Timer Control Box Assembly ...
  • Page 4 Fire Suppression System (FSS) Temperature Probe Assembly ... 32 Fire Suppression System (FSS) Solenoid Assembly ... 33 Single Phase (1ø) MP Rear Electric Relay Panel Assembly ... 34, 35 208-240V 3-Phase (3ø) MP Rear Electric Relay Panel Assembly ... 36 480V MP Rear Electric Relay Panel Assembly ...

  • Page 5: Phase 7 Opl Microprocessor Control Door Assembly

    Phase 7 OPL Microprocessor Control Door Assembly Illus. No. Part No. Qty. 824254 117604 150314 150318 154011 112366 Telephone: (508) 678-9000 Description Phase 7 Control Door without Hinge Noise Suppression Tape (sold by the foot) #10-32 x 1/2” TORX Screw Torx + Bit 1/4”...

  • Page 6: Dual Timer Control Door Assembly

    Illus. No. Part No. Qty. Description -------* Logo ONLY 883733 White Control Door Assembly (includes illus. nos. 2, 3, and 8) 117604 Noise Suppression Tape (sold by the foot) 150309 #10-16 x 1/2” Hex Head TEK Crimptite Screw 102603 Control Door Rod Support Catch 102601 Control Door Rod Retainer Clip 102502...

  • Page 7: Phase 7 Opl Microprocessor Control Panel Assembly

    Phase 7 OPL Microprocessor Control Panel Assembly Illus. No. Part No. Qty. 112571 850984 883749 883744 150005 153010 136016 136097 Telephone: (508) 678-9000 Description Phase 7 OPL Keyboard Phase 7 OPL Microprocessor Controller (computer) Panel ONLY Phase 7 OPL Reversing Microprocessor Controller (computer) Control Panel Assembly Complete with Fire Suppression System (FSS) (includes illus.

  • Page 8: Dual Timer "Tap Touch" Controls

    Illus. No. Part No. Qty. 124030 124025 824175 122301 131932 120730 151000 882903 850392 153010 152000 150207 150110 112563 124104 124105 American Dryer Corporation Dual Timer “Tap Touch” Controls Description 15 Minute Timer - 24 VAC 60 Minute Timer - 24 VAC Red Pilot Light - 24 VAC “Tap Touch”...

  • Page 9: Phase 7 Opl Microprocessor Control Box Assembly

    Phase 7 OPL Microprocessor Control Box Assembly Illus. No. Part No. Qty. 122681 122676 122646 122683 122640 122706 122669 As needed. Telephone: (508) 678-9000 Description 10-Pin Connector 8-Pin Connector 2-Pin Connector 6-Pin Connector 9-Pin Connector #20-16 U.M.N.L. Socket Female Crimp Terminal Fax: (508) 678-9447...

  • Page 10: Dual Timer Control Box Assembly

    Illus. No. Part No. Qty. 122601 122701 122801 315010 150300 150002 120715 151000 150300 131932 132198 150301 American Dryer Corporation Dual Timer Control Box Assembly Description 9-Pin Connector Socket Terminal ONLY Pin/Socket Extraction Tool 9-Pin Connector Bracket #10-16 x 1/2” Hex Washer TEK Screw #6-32 x 1”...

  • Page 11: Front Panel/Main Door Assemblies

    Front Panel/Main Door Assemblies Illus. No. Part No. Qty. 881871* 102214 170730 882411 170730 881689* 881684* 152014* 881740* 881688* 881685* 150120 151009 170330 154215 150445 881440* 881441* 153031 Specify color if other than white. Telephone: (508) 678-9000 Description White Front Panel Assembly (includes illus.

  • Page 12: Main Door Switch

    Illus. No. Part No. Qty. 150006 152013 153010 137005 150445 881687* 881702* 150301 881441* 881440* 153031 Specify color if other than white. American Dryer Corporation Description #6-32 x 7/8” Phillips Pan Head Machine Screw #6-32 Hex Nut #6 Star Washer Single-Pole Door Switch 1/4-20 x 3/4”...

  • Page 13: Drop Lint Door Assembly

    Drop Lint Door Assembly Illus. No. Part No. Qty. 800150 160009 150425 157000 881692* 117604 150419 150418 108120 Specify color when ordering. Telephone: (508) 678-9000 Description Knob Latch Kit Assembly (includes illus. nos. 1 through 3) Knob Latch Adjustable Cam ONLY #12-24 x 3/8”...

  • Page 14: Lint Trap Assembly

    Illus. No. Part No. Qty. 800420 800421 800422 800423 154200 304101 150300 800506 150419 150418 108120 150425 122116 323724 121400 American Dryer Corporation Description Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1 and 3 through 5) Non-Reversing Lint Trap ONLY Reversing Lint Trap Assembly Complete (includes illus.

  • Page 15: For Steam Models Only

    Lint Trap Assembly For Steam Models ONLY Illus. No. Part No. Qty. 800440 800433 800441 800434 154200 304101 150300 800506 150419 150418 108120 150425 122116 323724 121400 Telephone: (508) 678-9000 Description Non-Reversing Lint Trap Assembly Complete (includes illus. nos. 1 and 3 through 5) Non-Reversing Lint Trap ONLY Reversing Lint Trap Assembly Complete (includes illus.

  • Page 16: Basket (Tumbler)/Support Assemblies

    Basket (Tumbler)/Support Assemblies American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 17 Basket (Tumbler)/Support Assemblies Illus. No. Part No. Qty. 881780 859305 150313 150318 390074 115986 150518 800613 800615 116000 401010 153004 100905 152027 153005 Telephone: (508) 678-9000 Description Basket (tumbler) ONLY 1-3/4” Basket (tumbler)/Support Assembly Complete (includes illus. nos. 1 through 6 and 8 through 11) #10-16 x 1/2”...

  • Page 18: Sensor Bracket Assemblies

    Sensor Bracket Assemblies American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 19 Sensor Bracket Assemblies Illus. No. Part No. Qty. 880251 130103 153010 152000 121028 122701 122605 154007 150005 817046 322214 122604 122700 150301 150005 130111 130100 130103 130101 153010 152000 840065 121028 122701 122605 840062 801418 305007 122604 122700 122801 150301 Telephone: (508) 678-9000 Description 1/4”...

  • Page 21: Idler Bearing Assembly

    Idler Bearing Assembly Illus. No. Part No. Qty. 100108 100106 101140 100114 100109 154301 100705 882576 150617 153005 153004 801009 152004 150509 Telephone: (508) 678-9000 Description 5L-680 V-Belt (for non-reversing models Only) 5L-690 V-Belt (for reversing models Only) 14” x 3” Compound Pulley 4L-630 V-Belt (for all except reversing steam models) 4L-650 V-Belt (for reversing steam models Only) 5/16-18 x 1”...

  • Page 23: Basket (Tumbler) Bearing Assembly

    Basket (Tumbler) Bearing Assembly Illus. No. Part No. Qty. 880220 153025 152050 883387 882543 880779 150601 153004 153004 153005 152005 154326 152004 150621 153002 153004 150501 102120 883386 100724 100735 101100 101118 101110 100108 100106 150610 152004 Telephone: (508) 678-9000 Description 1-3/4”...

  • Page 24: Non-Reversing Motor Mount Assembly

    Illus. No. Part No. Qty. 100114 100109 100701 101133 101130 150501 153002 153001 100073* 181050 122701 122801 137030 152004 American Dryer Corporation Non-Reversing Motor Mount Assembly Description 4L-630 V-Belt (motor to idler) for Electric and Gas Models ONLY 4L-650 V-Belt (motor to idler) for Steam Models ONLY 3/16”...
  • Page 25 Non-Reversing Motor Mount Assembly (continued) Illus. No. Part No. Qty. 153002 153001 117604 154000 803561 803945 801824 803955* 803958* 153051 882670 100714 153050 152006 120200 100075* Specify voltage when ordering. Telephone: (508) 678-9000 Description 5/16” Lock Washer 5/16” Flat Washer Noise Suppressor Tape (sold by the foot) 5/16-18 Tinnerman Nut Non-Reversing Motor Mount ONLY (56Z frame)

  • Page 26: Reversing Motor Mount Assembly

    Reversing Motor Mount Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 27: Reversing Motor Mount Assembly

    Reversing Motor Mount Assembly Illus. No. Part No. Qty. 100114 100109 100701 101133 101130 120200 181003* 150501 153002 153001 100075* 120200 150501 153002 153001 154000 152004 153002 153001 803566 804029 804030 117604 153051 100714 882670 153050 152006 Specify voltage when ordering. ** As required.

  • Page 28: Direct Spark Ignition (Dsi) Burner Assembly

    Illus. No. Part No. Qty. 809716* 809717 810047 881231* 141105 141210 318714 150300 140820* 140805 150108 142707 151001 American Dryer Corporation Direct Spark Ignition (DSI) Burner Assembly Description Natural Gas Burner Assembly Complete For Models Mfd. with Natural Gas ONLY (includes illus.

  • Page 29: Direct Spark Ignition (Dsi) Burner Assembly

    Direct Spark Ignition (DSI) Burner Assembly (continued) Illus. No. Part No. Qty. 128927 880960 150309 142506 152013 810030 128935 809309 142600 319704 151000 150001 130201 318700 143000 142936 154004 802799 122200 150303 105500 319202 154002 142809 Consult factory for elevations over 2,000 feet. Telephone: (508) 678-9000 Description 1/2”...

  • Page 30: Electric Oven Assembly

    Electric Oven Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 31: Electric Oven Assembly

    Electric Oven Assembly Illus. No. Part No. Qty. 803005 ---------* ---------* 150300 802800 802801 154004 150309 802799 122200 150303 105500 319202 154002 150300 803100 320611 150207 130400 150300 154001 121012 152014 ---------* 150207 120081 120080 152008 121011* ---------* 153009 320607 Refer to Electric Oven Component Application Charts on page 48 and page 49.

  • Page 33: Air Operated Steam Damper Assembly

    Air-Operated Steam Damper Assembly Illus. No. Part No. Qty. 165009 153002 152004 152002 153007 820321 803415 153007 152002 115995 102350 151007 152007 100497 100492 152002 153007 100472 143110 100472 100496 143238 100498 150002 153010 152000 330987 152002 153007 100520 Telephone: (508) 678-9000 Description Steam Coil Assembly 5/16”...

  • Page 34: Fire Suppression System (Fss) Temperature Probe Assembly

    Fire Suppression System (FSS) Temperature Probe Assembly Illus. No. Part No. Qty. 822752 154007 390390 150301 122643 122647 American Dryer Corporation Description Fire Suppression System (FSS) Probe Assembly (includes illus. nos. 1 through 5) Push On Fastener Sensor Bracket ONLY #8-18 Phillips Pan Head TEK Screw Pins Connector ONLY...Not Illustrated...

  • Page 35: Fire Suppression System (Fss) Solenoid Assembly

    Fire Suppression System (FSS) Solenoid Assembly Illus. No. Part No. Qty. 165114 143220 143251 143208 143099* 6’ 311588 143303 143155 150430 150301 143581 142888 824828 Sold by the foot. Telephone: (508) 678-9000 Description Fire Suppression System (FSS) Solenoid Valve 24V 50/60 Hz 3/8”...

  • Page 36: Single Phase (1Ø) Mp Rear Electric Relay Panel Assembly

    Single-Phase (1ø) MP Rear Electric Relay Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...
  • Page 37 Single-Phase (1ø) MP Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 151000 150300 150009 120716 322812 822796 830153 822798 830273 830131 830151 822799 822792 136008 136057 150301 150297 152004 121010 153002 132495 121300 131932 Quantity is 1 for 115v and 2 for 208-240v. Telephone: (508) 678-9000 Description #6-32 Pal Nut...

  • Page 38: 208-240V 3-Phase (3Ø) Mp Rear Electric Relay Panel Assembly

    208-240V 3-Phase (3ø) MP Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 151000 150300 150008 120701 322812 830154 830322 830157 822799 822792 136008 136057 150301 150297 152004 121010 153002 132495 121300 131932 American Dryer Corporation Description #6-32 Pal Nut #10-16 x 1/2”...

  • Page 39: 480V Mp Rear Electric Relay Panel Assembly

    480V MP Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 150300 150008 120701 135501 824221 120768 120765 150301 150297 152004 121010 153002 132495 322812 830263 830137 830199 151000 131932 112075 Telephone: (508) 678-9000 Description #10-16 x 1/2” Hex Washer TEK Screw #6-32 x 1-1/4”...
  • Page 40 208-240V MP Reversing Rear Electric Relay Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 41: 208-240V Mp Reversing Rear Electric Relay Panel Assembly

    208-240V MP Reversing Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 150300 150008 120701 132497 822799 822792 136008 136057 150301 150297 152004 121010 153002 132495 322812 822771 830167 822789 151000 120765 131932 Telephone: (508) 678-9000 Description #10-16 x 1/2” Hex Washer TEK Screw #6-32 x 1-1/4”...
  • Page 42 460-480V MP Reversing Rear Electric Relay Panel Assembly American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781...

  • Page 43: 460-480V Mp Reversing Rear Electric Relay Panel Assembly

    460-480V MP Reversing Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 150300 150009 120701 135501 824221 120768 120765 150301 150297 152004 121010 153002 132495 322812 830147 830103 824371 151000 132497 112075 131932 Telephone: (508) 678-9000 Description #10-16 x 1/2” Hex Washer TEK Screw #6-32 x 1-1/2”...

  • Page 44: Single Phase (1Ø) D.t. Rear Electric Relay Panel Assembly

    Single-Phase (1ø) D.T. Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 150300 830247 132449 132445 132447 132383 150301 136008 136057 153002 152004 150297 121010 150300 353258 306304 830245 150009 120716 151000 121300 Quantity is 1 for 115v and 2 for 208-240v. ** Not available at time of printing.

  • Page 45: 460-480V D.t. Rear Electric Relay Panel Assembly

    460-480V D.T. Rear Electric Relay Panel Assembly For Gas Models Only Illus. No. Part No. Qty. 150300 150009 120701 835143 135501 120768 150297 152004 121010 153002 132447 322812 824231 151000 120765 132449 Telephone: (508) 678-9000 Description #10-16 x 1/2” Hex Washer TEK Screw #6-32 x 1-1/2”...

  • Page 46: 208-240V D.t. Reversing Rear Electric Relay Panel Assembly

    208-240V D.T. Reversing Rear Electric Relay Panel Assembly Illus. No. Part No. Qty. 150009 120701 150300 353258 132448 132447 152004 153002 322812 830236 151000 132449 830238 136008 136057 150301 121010 150297 American Dryer Corporation Description #6-32 x 1-1/2” Phillips Round Head Machine Screw 4-Position Terminal Block #10-16 x 1/2”...

  • Page 47: Sail Switch Assembly

    Sail Switch Assembly Illus. No. Part No. Qty. 319203 319202 319201 319200 154004 154002 150309 150303 122200 881706 105500 Telephone: (508) 678-9000 Description Sail Switch Mounting Bracket Sail Switch Damper (flat) Sail Switch Box Cover Sail Switch Box Twin Speed Nut 1/8”...

  • Page 48: Back Guard Assemblies

    Illus. No. Part No. Qty. 314518 150301 322809 150301 103500 150301 150300 323738 320008 312527 320007 American Dryer Corporation Description Bottom Back Guard #8-18 x 7/16” Phillips Pan Head TEK Screw Rear Electrical Box Cover #8-18 x 7/16” Phillips Pan Head TEK Screw Leveling Leg #8-18 x 7/16”...

  • Page 49: Back Guard Assembly

    Back Guard Assembly For Steam Models ONLY Illus. No. Part No. Qty. 314511 150300 150301 322809 150301 103500 Telephone: (508) 678-9000 Description Bottom Back Guard #10-16 x 1/2” Hex Washer TEK Screw #8-18 x 7/16” Phillips Pan Head TEK Screw Rear Electrical Box Cover #8-18 x 7/16”...
  • Page 50 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 ø 3 Consult factory for oven assemblies not listed. MLE-75 Phase 7 MP . y t t r a . y t e z i t r a .
  • Page 51 ø ø ø ø ø ø ø ø ø ø ø ø When ordering Oven Assembly Complete, specify 3 wire or 4 wire when applicable, as well as if dryer has microprocessor controller (computer) or non-microprocessor controls. MLE-75 Dual Timer...

  • Page 52: Additional Parts Available

    Part No. Description 112280 “Clean Lint Screen” Label 114001 “CAUTION - Exhaust/Lint Screen” Label 114006 “WARNING - Fire Hazards” Label 114533 “120v Electric Service” Label 120100 3/8” Straight (BX) Connector 120300 3/8” x 45° (BX) Connector 120400 3/8” Red Jacket (BX) Insulator 120500 3/8”...
