GE PROFILE ADVANTIUM SCB2001K Dimensions And Installation Information page 2

SCB2001K
GE Profile Advantium
Dimensions and Installation Information (in inches)
Order a 30" wide single oven cabinet or cut the
opening in a wall to dimensions shown.
Note: The rough opening must be:
• Depth – 19" Min.
• Width – 28-1/2" Min.
• Height – 21" Min.
• 36-3/4" from the floor to the cutout is required.
• These ovens require 3/4" overlap on each side,
top and bottom of the cutout.
• Oven overlaps will conceal cut edges on all sides
of the opening.
Note: For installation above a warming drawer
additional clearance between the two cutouts
may be required. Check to be sure the oven
supports above the Warming Drawer location
do not obstruct the required interior 23-1/2" depth
and 9-1/4" height.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.

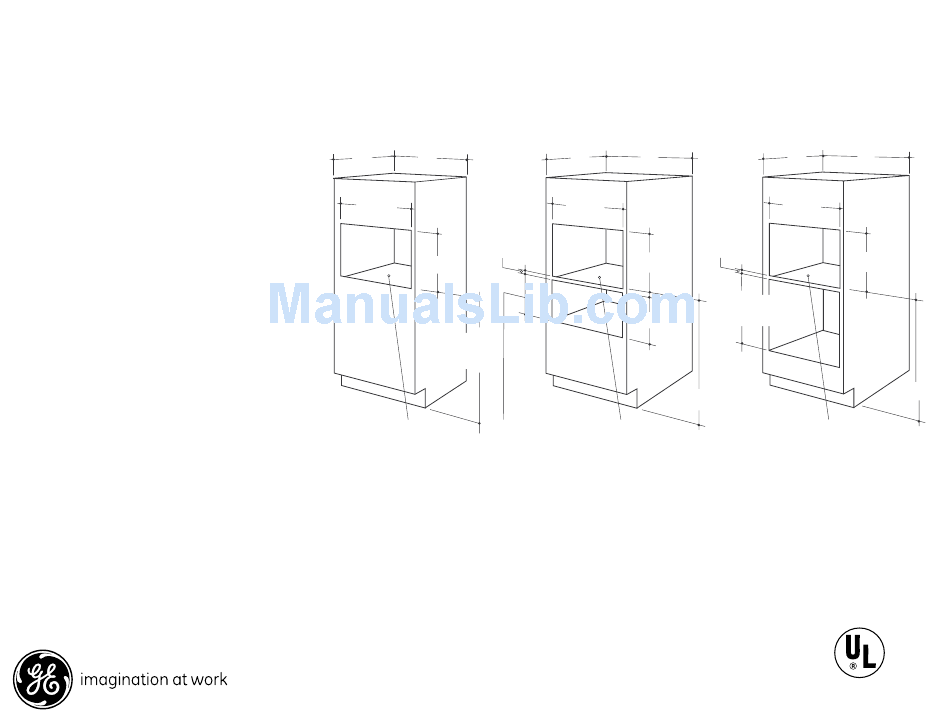

Wall Oven
®
Single
Speedcook Installation
19
Min
28-1/2
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
GE Profile ™ or
service,
®
530Dia3
Speedcook Oven Installation
above a GE Warming Drawer
24
30
Min.
28-1/2
2 Min.
21
36-3/4 Min.
Required
Construct Solid
Install
Bottom Min. 3/8"
2 x 4 or 2 x 2
Plywood
Runners or
Supported by
Solid Bottom,
2 x 4 or 1 x 2
Must Support
Runners, all
100 lbs.
Four Sides
530Dia13
Speedcook Oven Installation
above a single GE Built-In Wall Oven
24
30
Min.
28-1/2
2 Min.
21
Per Oven
Requirement
9-1/4
36-3/4 Min.
Construct Solid
Bottom Min. 3/8"
Plywood
Supported by
2 x 4 or 1 x 2
Runners, all
Four Sides
530Dia4
Specification Revised 2/07
30
21
*45-1/4
