GE PROFILE ADVANTIUM SCB2001K Dimensions And Installation Information

SCB2001K
GE Profile Advantium
Dimensions and Installation Information (in inches)
A Allow 1" overlap of oven over top and bottom edges of cutout
B Allow 11/16"-3/4" for overlap of oven over side edges of cutout
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Most 30" Wall Cabinets can be used with this unit.
Note: 2" minimum between cutouts when installed above
warming drawer or single wall oven.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
For answers to your Monogram, ®
GE appliance questions, visit our website at
®
ge.com or call GE Answer Center
800.626.2000.

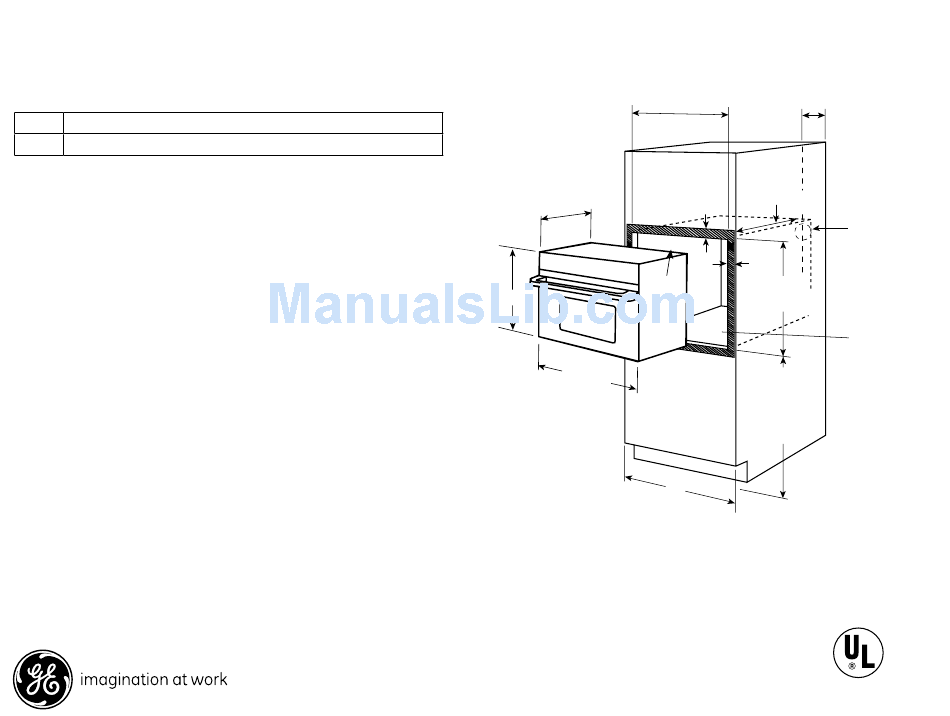

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)

Wall Oven

®
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
GE Profile ™ or
service,
®
Cutout width
28-1/2"
15-27/32"
Excluding
Handle
Conduit
21-7/8
(48-1/2"
long)
29-25/32
30
A=Allow 1" overlap of oven over top and bottom edges of cutout.
B=Allow 11/16"-3/4" for overlap of oven over side edges of cutout.
4-3/16
19"
Cutout depth
Junction
box
location
A
B
21"
Cutout height
Construct Solid
Bottom Min.
3/8" Plywood
Required
Supported by
cutout location
2 x 4 or 1 x 2
36-3/4"
Runners, all
minimum
Four Sides.
from floor
(Must Support
150 lbs.)
Specification Revised 2/07
Listed by
Underwriters
Laboratories
