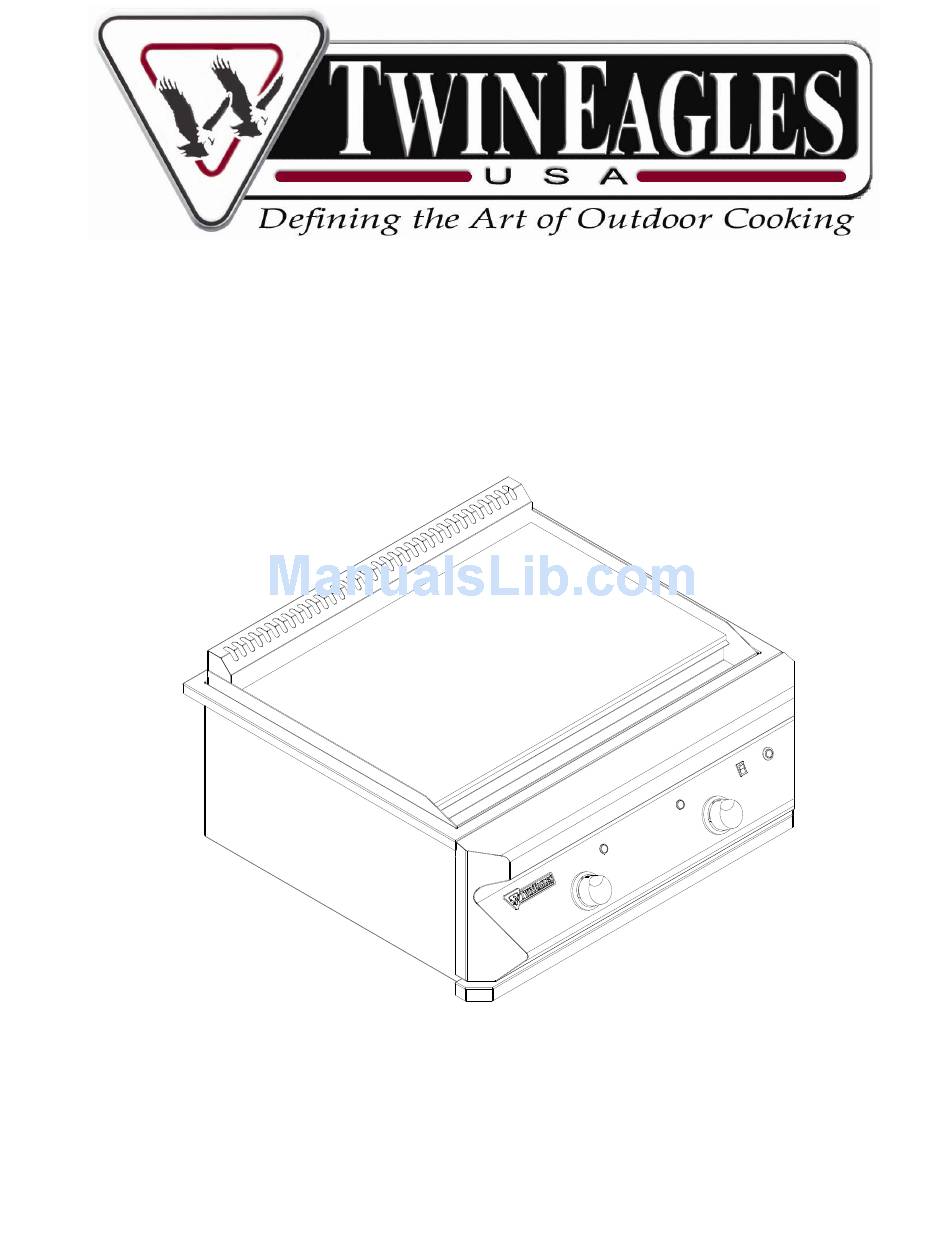

- Page 1 TEPPANYAKI GRIDDLE USE AND CARE MANUAL Models: TETG30-B PN: 18613C 07/10...
- Page 2 A special message… AGLES Teppanyaki Griddle. In Congratulations on your purchase of addition to its Unique Style, Superb Performance and High Quality, this appliance is built with pride in the U.S.A. Twin Eagles is committed to making outdoor cooking products you’ll be proud to own for years. This manual gives you easy to follow instructions for installing, operating and AGLES Teppanyaki Griddle.
- Page 3 IMPORTANT SAFETY INFORMATION – T AGLES EPPANYAKI RIDDLE Warning Read this manual carefully and completely before using your Teppanyaki Griddle to ensure proper operation, installation, servicing and to reduce the risk of fire, burn hazard and/ or other injury. Improper installation, adjustment alteration, service or maintenance can cause property damage, injury or death. Do not operate this appliance without having carefully read this manual.
- Page 4 GENERAL SAFETY REQUIREMENTS: 1. The installation of this outdoor cooking gas appliance, Teppanyaki Griddle, must conform with local codes or, in the absence of local codes, either the National Fuel Gas Code, ANZI Z223.1/NFPA 54, or CAN/CGA- B149.1, Natural Gas Installation Code or CAN/CGA-B149.2, Propane Installation Code. 2.
-
Page 5: Table Of Contents
TABLE OF CONTENTS – T AGLES EPPANYAKI RIDDLE GETTING STARTED o ELECTRICAL SPECIFICATIONS……………………………………………..……. o LIQUID PROPANE GAS REQUIREMENTS………………………………………… o NATURAL GAS REQUIREMENTS…………………………………………………. o SHIPMENT……………………………………………………………………………. o UNPACKING…….……………………………………………………………………. DETERMINE LOCATION……...………………………………………………………………….… o NON-COMBUSTIBLE MATERIAL ENCLOSURE.…………………………..…..o CUT-OUT DIMENSIONS FOR BUILT-IN………………………..………………….. GAS REQUIREMENTS ………………………………………………………………….…..……….. o NATURAL GAS HOOK-UP………………………….…………………….……..……... -
Page 6: Getting Started
GETTING STARTED – T AGLES EPPANYAKI RIDDLE Safe and satisfactory operation of the Teppanyaki Griddle depends upon its proper installation. The installation, adjustments and service of the Griddle must be performed only by a qualified installer and service technician. Proper location and proper use is essential to insure safe and continued trouble-free operation. Any alterations made to the appliance will void the product’s warranty. -
Page 7: Determine Location
Location Determine When determining a suitable location take into account concerns such as exposure to wind, proximity to traffic paths and keeping any gas supply lines as short as possible. Locate the griddle only in a well ventilated area. For free standing configurations allow 12”... -
Page 8: Cut-Out Dimensions For Built-In
CUT OUT DIMENSIONS FOR BUILT-IN APPLICATIONS – T AGLES EPPANYAKI RIDDLE 24-1/4" 28-1/2" 11-1/2" 30-1/8" Freestanding Applications: The Twin Eagles Teppanyaki Griddle may be installed into the Twin Eagles 30” freestanding grill base (TEGB30-B). The freestanding configurations allow 12” from the sides and rear to combustible construction while in operation. -
Page 9: Gas Requirements
GAS REQUIREMENTS – T AGLES EPPANYAKI RIDDLE Each appliance is set and tested at the factory for the type of gas supply to be used. Identify the type of gas, either natural gas or LP gas and make sure that the marking on the rating/serial plate matches the gas being supplied to the griddle. -
Page 10: Natural Gas Hook-Up
NATURAL GAS CONNECTION – T AGLES EPPANYAKI RIDDLE • The regulator supplied is set for 4” water column and is for use with Natural gas only. • The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psi (3.5 kPa). -
Page 11: Lp Gas Hose
LIQUID PROPANE GAS CONNECTION – T AGLES EPPANYAKI RIDDLE If your Teppanyaki Griddle is for Liquid Propane application, a factory supplied L.P regulator is set for 11” WC and is for use with L.P. gas only. The factory-supplied regulator and hose must be used with a 20 lb. L.P. cylinder. LP Gas Hose •... -
Page 12: Bottled Lp Gas Hook-Up
LIQUID PROPANE GAS CONNECTION – T AGLES EPPANYAKI RIDDLE Procedure for LP Gas Cylinder Connection (20 lbs) 1. Turn Hand Wheel on cylinder clockwise until it stops to ensure the Cylinder Valve is fully closed. 2. Turn all of the burner knobs to the OFF position. 3. -
Page 13: Gas Leak Test
Warning On Gas Leak Finding and/or fixing a gas leak is NOT a “DO-IT-YOURSELF” procedure. NEVER USE THE GRIDDLE WITHOUT FIRST LEAK TESTING THE GAS CONNECTIONS. WARNING: DO NOT USE OPEN FLAME TO CHECK FOR LEAKS. USE OF AN OPEN FLAME COULD RESULT IN A FIRE, EXPLOSION AND BODILY HARM. -
Page 14: Operating Instructions
OPERATING INSTRUCTIONS – T AGLES EPPANYAKI RIDDLE Lighting Instructions (Griddle Plate) 1. Remove the cover from the Griddle Plate. 2. Ensure the Gas supply valve is closed and the burner knob is set to the OFF position. 3. Open the valve on the gas supply. 4. -
Page 15: Grease Tray
Griddle Plate • After every use, thoroughly wipe it with a rough cloth to remove food particles and other residue. • You may use hot soapy water to remove the cooked-in food and seasoning. • Special griddle cleaners are commercially available which may be used to remove heavy soil build-up. •... -
Page 16: Exploded View Drawing
EXPLODED VIEW – T AGLES EPPANYAKI RIDDLE See Detail Detail... -
Page 17: Replacement Parts List
REPLACEMENT PARTS LIST – T AGLES EPPANYAKI RIDDLE Item TE Part Description TETG30-B Number S20963 Cover Panel S20959Y Grease Tray S11904Y Teppanyaki Griddle Plate Assembly S20960Y Flue Cover Assembly S16139 Hot Surface Igniter S13301 Stainless Steel U6-burner (0.75 in. wall) -
Page 18: Warranty
TWIN EAGLES WARRANTY ONE-YEAR FULL WARRANTY: Twin Eagles warrants the outdoor Teppanyaki Griddle and all of their component parts, to be free from defects in materials and workmanship under normal residential use for a period of one year from the original date of purchase. Twin Eagles will repair or replace, at its option, any part, which fail or is found to be defective during the warranty period, at no cost to the original purchaser. -
Page 19: Warranty Registration
HOW TO OBTAIN SERVICE For service, please contact your TWIN EAGLES dealer or call TWIN EAGLES direct at (800) 789-2206 or (562) 802-3488 or fax (562) 802-3391 Mailing address: Twin Eagles, Inc. 13231 East 166 Street Cerritos, CA 90703 Visit us at www.twineaglesbbq.com Please provide: ... - Page 20 Here Place Postage Here ATTN: Warranty Department 13231 East 166 Street Cerritos, CA 90703 Fax no. (562) 802-3391...
