Part Identification Chart - ProForm 1200 Interactive Trainer Treadmill User Manual

Key No. Qty. Description
101 1 Console Base
102 1 iFIT.com Wire
103 8 Ground Screw/Choke Screw
104 1 Key Clip
105 1 Optic Disk
106 1 Fan
107 1 Console
108 44 Screw
109 1 Left Tray
110 1 CD Console
111 1 Right Tray
112 1 iFIT.com Wire
3/4" Tek Screw
113 1 iFIT.com Jack
(58)–8
114 2 Motor Bracket Bolt
115 1 Photo Switch Screw
116 1 Console Base Frame
117 1 Left Handgrip
118 1 Photo Switch Nut
119 1 Left Bottom Handgrip
120 1 Right Handgrip
121 1 Right Bottom Handgrip

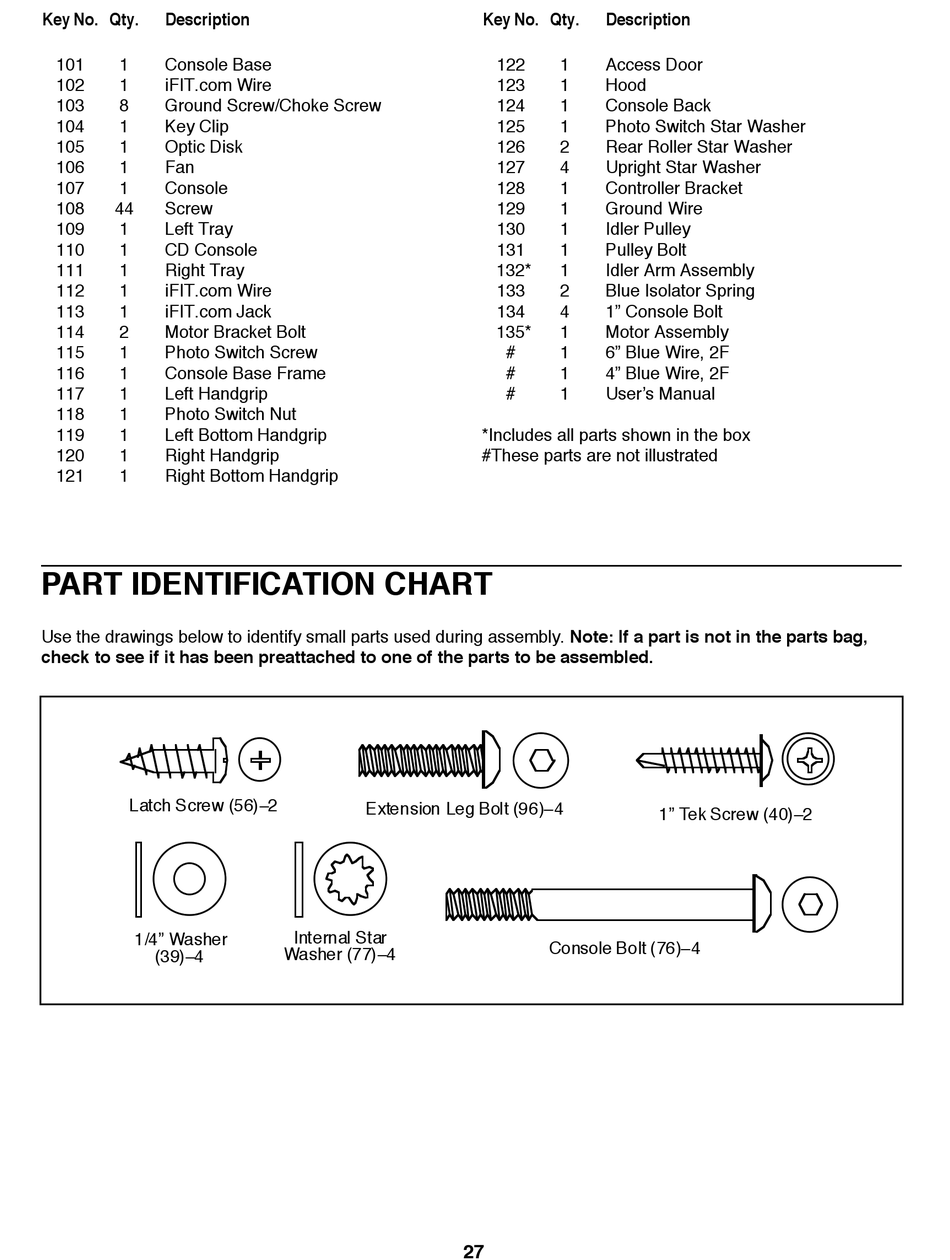

PART IDENTIFICATION CHART

Use the drawings below to identify small parts used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled.
Latch Screw (56)–2
1/4" Washer
(39)–4
Wheel Nut (13)–2
Extension Leg Bolt (96)–4
Internal Star
Washer (77)–4
Key No. Qty. Description
122 1 Access Door
123 1 Hood
124 1 Console Back
125 1 Photo Switch Star Washer
126 2 Rear Roller Star Washer
127 4 Upright Star Washer
128 1 Controller Bracket
129 1 Ground Wire
130 1 Idler Pulley
131 1 Pulley Bolt
132* 1 Idler Arm Assembly
133 2 Blue Isolator Spring
1" Latch Screw (123)–2
134 4 1" Console Bolt
135* 1 Motor Assembly
# 1 6" Blue Wire, 2F
# 1 4" Blue Wire, 2F
# 1 User's Manual
*Includes all parts shown in the box
#These parts are not illustrated
Console Bolt (76)–4
27
1" Tek Screw (40)–2
