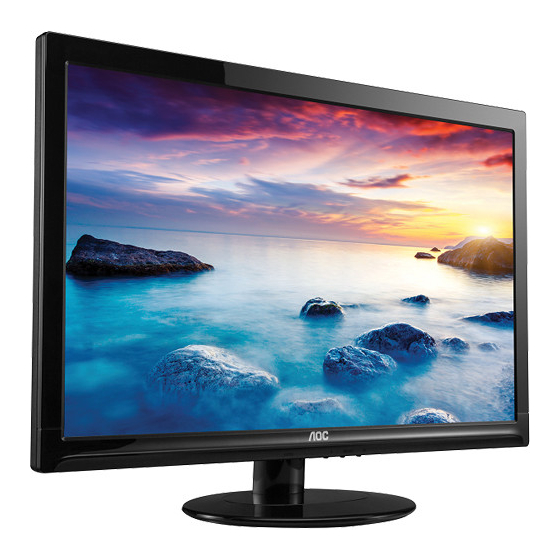

Summary of Contents for AOC e2425Swd
-
Page 2: Table Of Contents
Safety ..................................4 National Conventions ............................4 Power ................................5 Installation................................6 Cleaning ................................7 Other .................................. 8 Setup ..................................9 Contents in Box ..............................9 Setup Stand & Base ............................10 Adjusting Viewing Angle ........................... 11 Connecting the Monitor ............................ 12 Wall Mounting .............................. - Page 3 FCC Notice ..............................51 WEEE Declaration ............................52 EPA Energy Star .............................. 53 Service ..................................54 EU WARRANTY FOR AOC MONITORS ......................54 Warranty Statement for North & South America (excluding Brazil) ............56 EASE PROGRAME ............................58...
-
Page 4: Safety
Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system. -
Page 5: Power
Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. -
Page 6: Installation
Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product. -
Page 7: Cleaning
Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface. -
Page 8: Other
Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation. -
Page 9: Setup
Contents in Box Monitor CD Manual Stand Monitor Base Power Cable Analog Cable DVI Cable Not all signal cables (Analog, DVI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation. -
Page 10: Setup Stand & Base
Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:... -
Page 11: Adjusting Viewing Angle
Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. You are able to adjust the monitor's angle from -3°... -
Page 12: Connecting The Monitor
Connecting the Monitor Cable Connections In Back of Monitor and Computer: Power D-Sub To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port. -
Page 13: Wall Mounting
Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC. -
Page 14: Adjusting
Adjusting Setting Optimal Resolution Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization... - Page 15 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to 1920 by 1080.
-
Page 16: Windows Xp
Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY. -
Page 17: Windows Me/2000
6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to 1920 by 1080. Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to 1920 by 1080. -
Page 18: Windows 8
Windows 8 For Windows 8: Right click and click All apps at the bottom-right of the screen. Set the “View by” to “Category”. Click Appearance and Personalization. - Page 19 Click DISPLAY. Set the resolution SLIDE-BAR to 1920x1080.
-
Page 20: Hotkeys
Hotkeys Source/Auto/Exit Eco (DCR) / - 4:3 or Wide / + Menu/Enter Power Power Press the Power button to turn on/off the monitor. Menu/Enter Press to display the OSD or confirm the selection. Eco (DCR)/- Press the Eco key continuously to select the Eco mode of brightness and DCR on when there is no OSD. (Eco mode hot key may not be available in all models). -
Page 21: Osd Setting
OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press - or + to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it . press - or + to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it. -
Page 22: Luminance
Luminance Press MENU to display menu. Press - or + to select (Luminance), and press MENU to enter. Press - or +to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit Brightness 0-100 Backlight Adjustment Contrast... -
Page 23: Image Setup
Image Setup Press MENU to display menu. Press - or + to select (Image Setup), and press MENU to enter. Press - or + to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. -
Page 24: Color Setup
Color Setup Press MENU to display menu. Press - or + to select (Color Setup), and press MENU to enter. Press - or + to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit Warm Recall Warm Color Temperature from EEPROM. -
Page 25: Picture Boost
Picture Boost Press MENU to display menu. Press - or + to select (Picture Boost), and press MENU to enter. Press - or + to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit Frame Size 14-100 Adjust Frame Size... -
Page 26: Osd Setup
OSD Setup Press MENU to display menu. Press - or + to select (OSD Setup), and press MENU to enter. Press - or + to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit H.Position 0-100 Adjust the horizontal position of OSD... -
Page 27: Extra
Extra Press MENU to display menu. Press - or + to select (Extra), and press MENU to enter. Press - or + to select submenu, and press MENU to enter. Press - or + to adjust. Press AUTO to exit Input Select AUTO/D-SUB/DVI Select input signal source. -
Page 28: Exit
Exit Press MENU to display menu. Press - or + to select (Exit), and press MENU to enter. Press AUTO to exit Exit Exit the main OSD LED Indicator Status LED Color Full Power Mode Blue Flickering Blue Active-off Mode... -
Page 29: Driver
Driver Monitor Driver Windows 8 Start Windows® 8 Right click and click All apps at the bottom-right of the screen. Click on the “Control panel” icon Set the “View by” to “Large icons” or “Small icons”. Click on the “Display” icon. - Page 30 Click on the “Change display settings” button. “ Advanced Settings” button. Click the...
- Page 31 Click the “Monitor” tab and then click the “Properties” button Click the “Driver” tab. 10. Open the “Update Driver Software-Generic PnP Monitor” window by clicking on “Update Driver... “ and then click the "Browse my computer for driver software" button.
- Page 32 11. Select "Let me pick from a list of device drivers on my computer". 12. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 13.
-
Page 33: Windows 7
Windows 7 1.Start Windows® 7 2.Click on the 'Start' button and then click on 'Control Panel'. 3. Click on the 'Display' icon. - Page 34 4.Ckick on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button.
- Page 35 7.Click the “Driver” tab. 8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then click the "Browse my computer for driver software" button. 9. Select "Let me pick from a list of device drivers on my computer".
- Page 36 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.
-
Page 37: Windows Vista
Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...". - Page 38 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.
-
Page 39: Windows Xp
Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category „Appearance and Themes‟ 4. Click on the 'Display' Item. - Page 40 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
- Page 41 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.
-
Page 42: Windows 2000
Windows 2000 Start Windows® 2000 Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. Double click on the 'Display' Icon. Select the 'Settings' tab then click on 'Advanced...'. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active. -
Page 43: I-Menu
Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide. -
Page 44: E-Saver
Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below). -
Page 45: Screen
Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the... -
Page 46: Troubleshoot
Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust. -
Page 47: Specification
Specification General Specification Model name E2425S Driving system TFT Color LCD Viewable Image Size 59.8 cm diagonal Pixel pitch 0. 2715(H)mm x 0. 2715(V)mm Panel Video R, G, B Analog Interface & Digital Interface Separate Sync. H/V TTL Display Color 16.7M Colors Dot Clock 165 MHz... -
Page 48: Preset Display Modes
Preset Display Modes HORIZONTAL VERTICAL STAND RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480 @60Hz 31.469 59.94 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.5 800×600 @56Hz 35.156 56.25 800×600 @60Hz 37.879 60.317 SVGA 800×600 @72Hz 48.077 72.188 800×600 @75Hz 46.875 1024×768 @60Hz 48.363 60.004 1024×768 @70Hz 56.476 70.069... -
Page 49: Pin Assignments
Pin Assignments Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Video-Blue N.C. Detect Cable GND-R GND-G GND-B Ground N.C. DDC-Serial data H-sync V-sync DDC-Serial clock Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2- TMDS Data 1- TMDS Data 0- TMDS Data 2+... -
Page 50: Plug And Play
Plug and Play Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 51: Regulation
Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 52: Weee Declaration
WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. -
Page 53: Epa Energy Star
EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency. -
Page 54: Service
Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product. - Page 55 OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
-
Page 56: Warranty Statement For North & South America (Excluding Brazil)
In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:... - Page 57 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...
-
Page 58: Ease Programe
Tube & LCD Panel) *AOC will need to obtain a credit card number if you would like to get a new AOC monitor advanced shipped to your location, prior to the defective unit arriving at AOC‟s service center. If you do not wish to supply a credit card, AOC will only ship the new monitor, once the defective unit arrives at the AOC service center.
