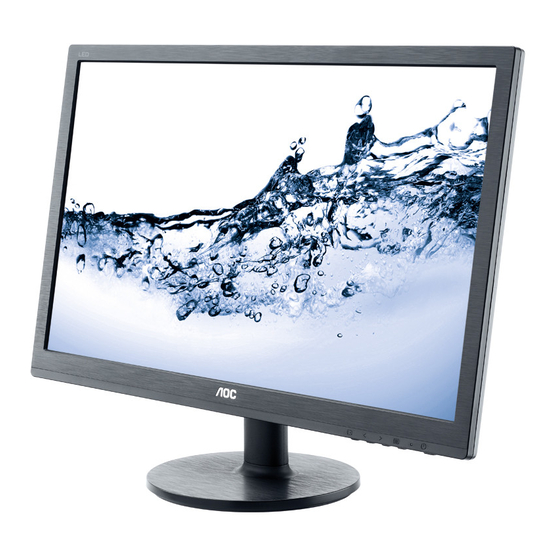

AOC e2460Swhu Manual

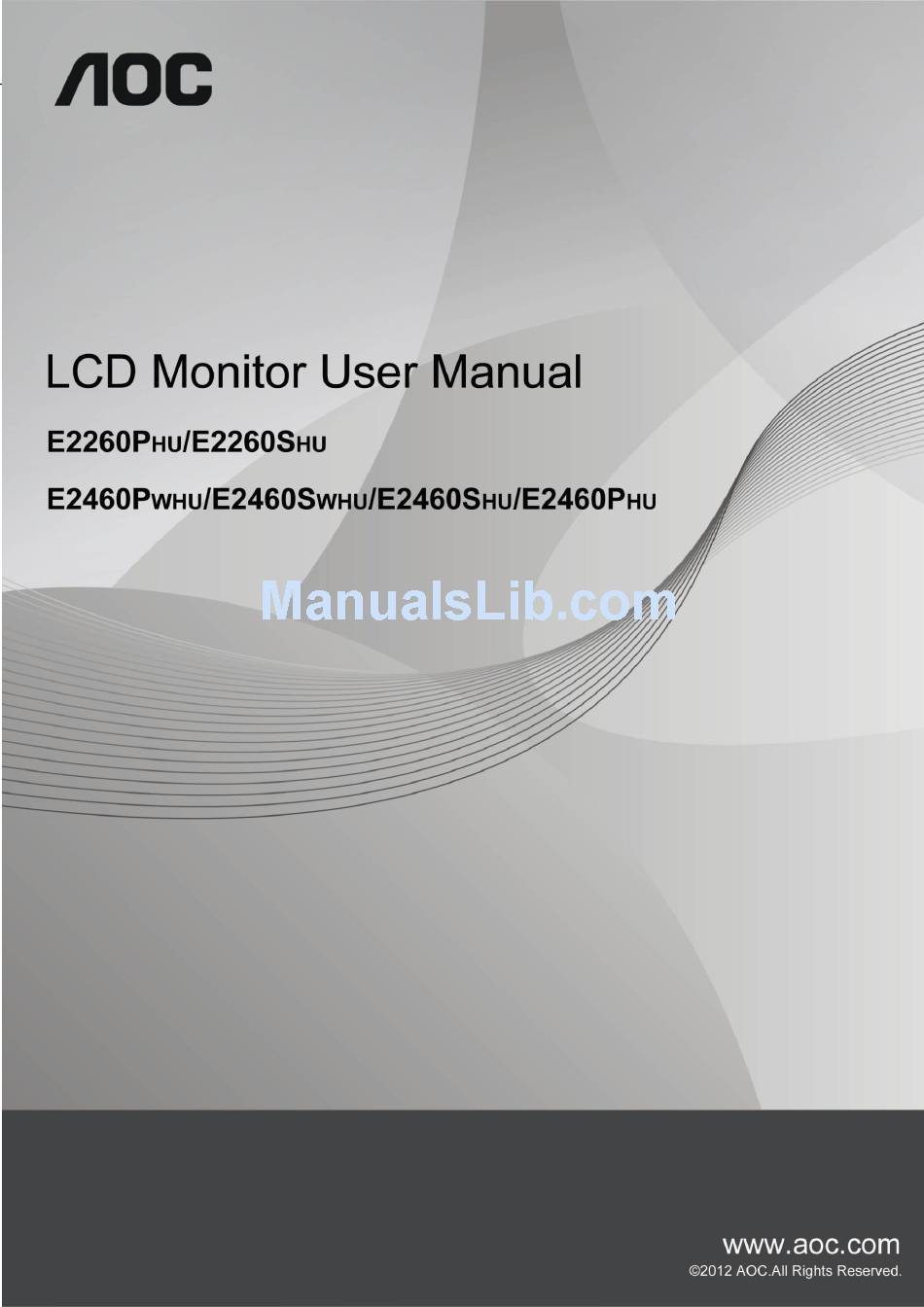

User's manual_e2460swhu
Hide thumbs Also See for e2460Swhu:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the e2460Swhu and is the answer not in the manual?

Questions and answers

Related Manuals for AOC e2460Swhu

Summary of Contents for AOC e2460Swhu

  • Page 2: Table Of Contents

    FCC Notice ..............................54 WEEE Declaration ............................55 EPA Energy Star .............................. 56 EPEAT Declaration ............................57 Service ................................58 EU WARRANTY FOR AOC MONITORS ......................58 Warranty Statement for North & South America (excluding Brazil) ............60 TCO DOCUMENT ............................62...

  • Page 3: Safety

    Safety National Conventions The following subsections describe notational conventions used in this document. Notes, Cautions, and Warnings Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type. These blocks are notes, cautions, and warnings, and they are used as follows: NOTE: A NOTE indicates important information that helps you make better use of your computer system.

  • Page 4: Power

    Power The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company. The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature.

  • Page 5: Installation

    Installation Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with this product.

  • Page 6: Cleaning

    Cleaning Clean the cabinet regularly with cloth. You can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet. When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

  • Page 7: Other

    Other If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and contact a Service Center. Make sure that the ventilating openings are not blocked by a table or curtain. Do not engage the LCD monitor in severe vibration or high impact conditions during operation. Do not knock or drop the monitor during operation or transportation.

  • Page 8: Setup

    DVI Cable Analog Cable Audio Cable HDMI Cable USB Cable Not all signal cables (Audio,Analog, DVI, USB and HDMI cables) will be provided for all countries and regions. Please check with the local dealer or AOC branch office for confirmation.

  • Page 9: Setup Stand & Base

    Setup Stand & Base Please setup or remove the base following the steps as below. Setup: Remove:...
  • Page 10 Setup: Remove:...

  • Page 11: Adjusting Viewing Angle

    Adjusting Viewing Angle For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you will not topple the monitor when you change the monitor's angle. 1>...

  • Page 12: Connecting The Monitor

    Connecting the Monitor Cable Connections In Back of Monitor and Computer: Power HDMI Analog (DB-15 VGA cable) Line in To protect equipment, always turn off the PC and LCD monitor before connecting. Connect the power cable to the AC port on the back of the monitor. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer's D-Sub port.

  • Page 13: Wall Mounting

    Reconnect the cables. Refer to the user's manual that came with the optional wall mounting arm for instructions on attaching it to the wall. Noted : VESA mounting screw holes are not available for all models, please check with the dealer or official department of AOC.

  • Page 14: Adjusting

    Adjusting Setting Optimal Resolution Windows Vista For Windows Vista: 1 Click START. 2 Click CONTROL PANEL. 3 Click Appearance and Personalization. 4 Click Personalization...
  • Page 15 5 Click Display Settings. 6 Set the resolution SLIDE-BAR to Optimal preset resolution.

  • Page 16: Windows Xp

    Windows XP For Windows XP: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Click Appearance and Themes. 5 Double click DISPLAY.

  • Page 17: Windows Me/2000

    6 Click SETTINGS. 7 Set the resolution SLIDE-BAR to Optimal preset resolution. Windows ME/2000 For Windows ME/2000: 1 Click START. 2 Click SETTINGS. 3 Click CONTROL PANEL. 4 Double click DISPLAY. 5 Click SETTINGS. 6 Set the resolution SLIDE-BAR to Optimal preset resolution.

  • Page 18: Hotkeys

    Hotkeys Source / Auto / Exit Eco (DCR / i-Care) / < Volume / > Menu / Enter Power Power Press the Power button to turn on/off the monitor. Menu/Enter Press to display the OSD or confirm the selection. > Volume When there is no OSD,Press Volume button to active volume adjustment bar,Press <...

  • Page 19: Osd Setting

    OSD Setting Basic and simple instruction on the control keys. Press the MENU-button to activate the OSD window. Press < or > to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it . press < or > to navigate through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.

  • Page 20: Luminance

    Luminance Press (Menu) to display menu. Press < or > to select (Luminance), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 21 Press < or > to adjust. Press to exit Brightness 0-100 Backlight Adjustment Contrast 0-100 Contrast from Digital-register. Standard Standard Mode Text Text Mode Internet Internet Mode Eco mode Game Game Mode Movie Movie Mode Sports Sports Mode Gamma1 Adjust to Gamma1 Gamma Gamma2 Adjust to Gamma 2...

  • Page 22: Image Setup

    Image Setup Press (Menu) to display menu. Press < or > to select (Image Setup), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 23 Press < or > to adjust. Press to exit Clock 0-100 Adjust picture Clock to reduce Vertical-Line noise. Phase 0-100 Adjust Picture Phase to reduce Horizontal-Line noise Sharpness 0-100 Adjust picture sharpness H.Position 0-100 Adjust the horizontal position of the picture. V.Position 0-100 Adjust the vertical position of the picture.

  • Page 24: Color Setup

    Color Setup Press (Menu) to display menu. Press < or > to select (Color Setup), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 25 Press < or > to adjust. Press to exit Warm Recall Warm Color Temperature from EEPROM. Normal Recall Normal Color Temperature from EEPROM. Cool Recall Cool Color Temperature from EEPROM. Color Temp. sRGB Recall SRGB Color Temperature from EEPROM. Red Gain from Digital-register User Green Green Gain Digital-register.

  • Page 26: Picture Boost

    Picture Boost Press (Menu) to display menu. Press < or > to select (Picture Boost), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 27 Press < or > to adjust. Press to exit Frame Size 14-100 Adjust Frame Size Brightness 0-100 Adjust Frame Brightness Contrast 0-100 Adjust Frame Contrast H. position 0-100 Adjust Frame horizontal Position V.position 0-100 Adjust Frame vertical Position Bright Frame on or off Disable or Enable Bright Frame...

  • Page 28: Osd Setup

    OSD Setup Press (Menu) to display menu. Press < or > to select (OSD Setup), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 29 Press < or > to adjust. Press to exit H.Position 0-100 Adjust the horizontal position of OSD V.Position 0-100 Adjust the vertical position of OSD Timeout 5-120 Adjust the OSD Timeout Transparence 0-100 Adjust the transparence of OSD Language Select the OSD language...

  • Page 30: Extra

    Extra Press (Menu) to display menu. Press < or > to select (Extra), and press to enter. Press < or > to select submenu, and press to enter.
  • Page 31 Press < or > to adjust. Press to exit Input Select Auto / Analog / DVI / HDMI Select Input Signal Source Auto Config yes or no Auto adjust the picture to default Off timer 0-24hrs Select DC off time Image Ratio wide or 4:3 Select wide or 4:3 format for display...

  • Page 32: Exit

    Exit Press (Menu) to display menu. Press < or > to select (Exit), and press to enter. Press to exit Exit Exit the main OSD LED Indicator Status LED Color Full Power Mode Green or Blue Active-off Mode Orange or red...

  • Page 33: Driver

    Driver Monitor Driver Windows 7 1.Start Windows® 7 2.Click on the 'Start' button and then click on 'Control Panel'. 3. Click on the 'Display' icon.
  • Page 34 4.Ckick on the “Change display settings” button. “ Advanced Settings” button. Click the Click the “Monitor” tab and then click the “Properties” button.
  • Page 35 7.Click the “Driver” tab. 8. Open the "Update Driver Software-Generic PnP Monitor" window by clicking on “Update Driver... “and then click the "Browse my computer for driver software" button. 9. Select "Let me pick from a list of device drivers on my computer".
  • Page 36 10. Click the “Have Disk” button. Click on the “Browse” button and navigate to the following directory: X:\Driver\module name (where X is the drive letter designator for the CD-ROM drive). 11. Select the "xxx.inf" file and click the “Open” button. Click the “OK” button. 12.

  • Page 37: Windows Vista

    Windows Vista 1. Click "Start " and "Control Panel". Then, double-click on "Appearance and Personalization". 2. Click "Personalization" and then "Display Settings". 3. Click "Advanced Settings...".
  • Page 38 4. Click "Properties" in the "Monitor" tab. If the "Properties" button is deactivated, it means the configuration for your monitor is completed. The monitor can be used as is. If the message "Windows needs..." is displayed, as shown in the figure below, click "Continue". 5.

  • Page 39: Windows Xp

    Windows XP 1. Start Windows® XP 2. Click on the 'Start' button and then click on 'Control Panel'. 3. Select and click on the category „Appearance and Themes‟ 4. Click on the 'Display' Item.
  • Page 40 5. Select the 'Settings' tab then click on the 'Advanced' button. 6. Select 'Monitor' tab - If the 'Properties' button is inactive, it means your monitor is properly configured. Please stop installation. - If the 'Properties' button is active, click on 'Properties' button. Please follow the steps below.
  • Page 41 8. Select the 'Install from a list or specific location [advanced]' radio button and then click on the 'Next' button. 9. Select the 'Don't Search. I will choose the driver to install' radio button. Then click on the 'Next' button. 10.

  • Page 42: Windows 2000

    Windows 2000 1. Start Windows® 2000 2. Click on the 'Start' button, point to 'Settings', and then click on 'Control Panel'. 3. Double click on the 'Display' Icon. 4. Select the 'Settings' tab then click on 'Advanced...'. 5. Select 'Monitor' - If the 'Properties' button is inactive, it means your monitor is properly configured.

  • Page 43: I-Menu

    Welcome to “i-Menu” software by AOC. i-Menu makes it easy to adjust your monitor display setting by using on screen menus instead of the OSD button on the monitor. To complete installation, please follow the installation guide.

  • Page 44: E-Saver

    Welcome to use AOC e-Saver monitor power management software! The AOC e-Saver features Smart Shutdown functions for your monitors, allows your monitor to timely shutdown when PC unit is at any status (On, Off, Sleep or Screen Saver); the actual shutdown time depends on your preferences (see example below).

  • Page 45: Screen

    Screen+ Welcome to "Screen+" software by AOC, Screen+ software is a desktop screen splitting tool, it splits the desktop into different panes, each pane displays a different window. You only need to drag the window to a corresponding pane, when you want to access it. It supports multiple monitor display to make your task easier. Please follow the...

  • Page 46: Troubleshoot

    Adjust the maximum resolution and frequency that the monitor can handle properly. Make sure the AOC Monitor Drivers are installed. Adjust the Contrast and Brightness Controls. Press to auto adjust.

  • Page 47: Specification

    Specification General Specification Model name E2260P /E2260S Driving system TFT Color LCD Viewable Image Size 55.86 cm diagonal Pixel pitch 0. 282 mm(H) x 0. 282 mm(V) Panel Video R, G, B Analog lnterface & Digital Interface & HDMI lnterface Separate Sync.
  • Page 48 Model name E2460P / E2460S Driving system TFT Color LCD Viewable Image Size 59.8 cm diagonal Pixel pitch 0. 2715 mm(H) x 0. 2715 mm(V) Panel Video R, G, B Analog lnterface & Digital Interface & HDMI lnterface Separate Sync. H/V TTL Display Color 16.7M Colors...
  • Page 49 Model name E2460S E2460P HU / Driving system TFT Color LCD Viewable Image Size 61.0 cm diagonal Pixel pitch 0. 27675 mm(H) x 0. 27675 mm(V) Panel Video R, G, B Analog lnterface & Digital Interface & HDMI lnterface Separate Sync. H/V TTL Display Color 16.7M Colors...

  • Page 50: Preset Display Modes

    Preset Display Modes 1>.E2260P /E2260S HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480@60Hz 31.469 59.940 640×480@72Hz 37.861 72.809 640×480@75Hz 37.500 75.000 SVGA 800×600@56Hz 35.156 56.250 SVGA 800×600@60Hz 37.879 60.317 SVGA 800×600@72Hz 48.077 72.188 SVGA 800×600@75Hz 46.875 75.000 1024×768@60Hz 48.363 60.004 1024×768@75Hz 60.023 75.029 SXGA...
  • Page 51 2>.E2460P /E2460S E2460P /E2460S WHU/ HORIZONTAL VERTICAL STANDARD RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640×480 @60Hz 31.469 59.940 640×480 @67Hz 35.000 66.667 640×480 @72Hz 37.861 72.809 640×480 @75Hz 37.500 75.000 Dos-mode 720×400 @70Hz 31.469 70.087 SVGA 800×600 @56Hz 35.156 56.250 SVGA 800×600 @60Hz 37.879 60.317 SVGA...

  • Page 52: Pin Assignments

    Pin Assignments Pin Number 15-Pin Side of the Signal Cable Video-Red Video-Green Video-Blue N.C. Detect Cable GND-R GND-G GND-B Ground N.C. DDC-Serial data H-sync V-sync DDC-Serial clock Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2- TMDS Data 1- TMDS Data 0- TMDS Data 2+...

  • Page 53: Plug And Play

    Pin No. Signal Name Pin No. Signal Name Pin No. Signal Name TMDS Data 2+ TMDS Data 0- DDC/CEC Ground TMDS Data 2 Shield TMDS Clock + +5V Power TMDS Data 2- TMDS Clock Shield Hot Plug Detect TMDS Data 1+ TMDS Clock- TMDS Data 1Shield TMDS Data 1-...

  • Page 54: Regulation

    Regulation FCC Notice FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 55: Weee Declaration

    WEEE Declaration Disposal of Waste Equipment by Users in Private Household in the European Union. This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste.Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment.

  • Page 56: Epa Energy Star

    EPA Energy Star ENERGY STAR® is a U.S. registered mark. As an ENERGY STAR® Partner, AOC International (Europe) BV and Envision Peripherals, Inc. have determined that this product meets the ENERGY STAR® guidelines for energy efficiency.

  • Page 57: Epeat Declaration

    AOC believes in protecting the environment. With a key concern for the conservation of natural resources, as well as landfill protection, AOC announces the launch of AOC monitor‟s packaging recycling program. This program is designed to help you discard of your monitor carton and filler materials properly.

  • Page 58: Service

    Three (3) years after the original date of consumer purchase. During this period, AOC International (Europe) B.V. will, at its option, either repair the defective product with new or rebuilt parts, or replace it with a new or rebuilt product at no charge except as *stated below. In the absent of the proof of purchase, the warranty will start 3 months after the date of manufacturing indicated on the product.
  • Page 59 OF THE INDIVIDUAL UNIT WHOSE DEFECT OR DAMAGE IS THE BASIS OF THE CLAIM. IN NO EVENT SHALL AOC INTERNATIONAL (EUROPE) B.V. BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE OR FACILITIES OR EQUIPMENT, OR OTHER INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

  • Page 60: Warranty Statement For North & South America (Excluding Brazil)

    In the United States and Canada contact your Dealer or EPI Customer Service, RMA Department at the toll free number (888) 662-9888. Or you can request an RMA Number online at www.aoc.com/na-warranty. * This limited warranty does not cover any losses or damages that occur as a result of:...
  • Page 61 ARGENTINA: http://ar.aoc.com/support/warranty BOLIVIA: http://bo.aoc.com/support/warranty CHILE: http://cl.aoc.com/support/warranty COLOMBIA: http://co.aoc.com/warranty COSTA RICA: http://cr.aoc.com/support/warranty DOMINICAN REPUBLIC: http://do.aoc.com/support/warranty ECUADOR: http://ec.aoc.com/support/warranty EL SALVADOR: http://sv.aoc.com/support/warranty GUATEMALA: http://gt.aoc.com/support/warranty HONDURAS: http://hn.aoc.com/support/warranty NICARAGUA: http://ni.aoc.com/support/warranty PANAMA: http://pa.aoc.com/support/warranty PARAGUAY: http://py.aoc.com/support/warranty PERU: http://pe.aoc.com/support/warranty URUGUAY: http://pe.aoc.com/warranty VENEZUELA: http://ve.aoc.com/support/warranty IF COUNTRY NOT LISTED: http://latin.aoc.com/warranty...

  • Page 62: Tco Document

    TCO DOCUMENT...

This manual is also suitable for:

E2260phuE2260shuE2460pwhuE2460shuE2460phu
