Swann PTZ INTERNAL Speed Dome Specification

Dome camera with 27xoptical, 10xdigital zoom

Download this manual

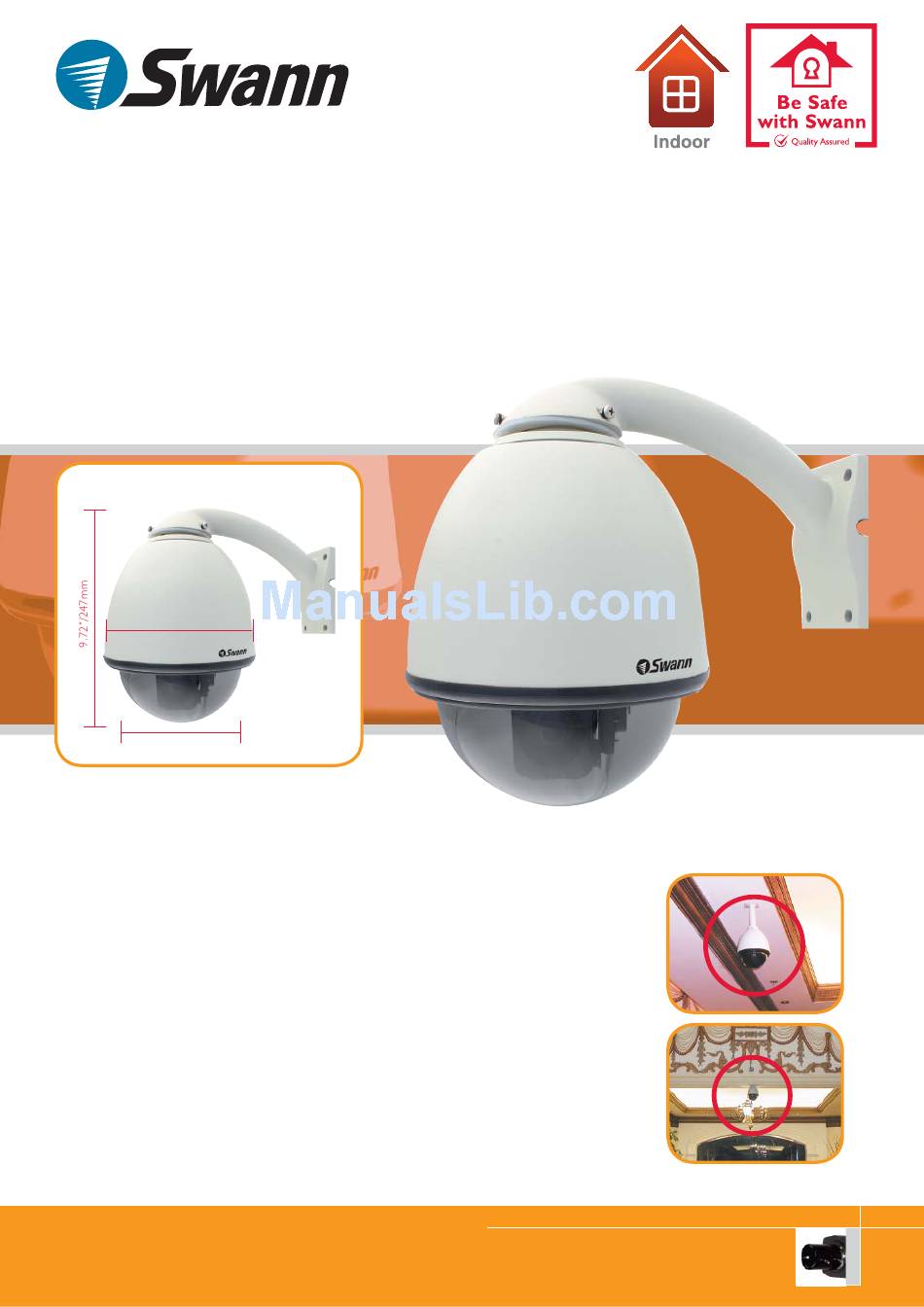

PTZ INTERNAL Speed Dome

Dome Camera with 27x Optical,

10x Digital Zoom

The ideal solution for high performance surveillance with

480 TVL & 0.01 lux

Dimension:

8.26"/210mm

7.08"/180mm

• 1/4" Sony SUPERHAD CCD with minimum illumination of 0.01 lux

• Built-in 27X Optical Zoom /10X Digital Zoom color camera

• Continuous 360 degrees Pan Rotation

• Continuous auto focus to target subject accurately

• 64 presets available

• RS-485 Communication Protocol and fully compatible with all DVR systems

• On Screen Display for camera control

• Auto protection function when there is a power failure

• Outdoor Wall mounting support bracket included

• Support Auto Cruise and Cruise between two presets

• Auto Flip dome rotation

• Focusing System: Auto-Sensing, manually, interval AF, Zoom trigger AF

• Auto white balance, backlight compensation, auto iris control, electronic shuttle

• No IP Rating (for indoor use)

• No heater/fan inside

• Temperature of 0°C~50°C

www.swannsecurity.com

Enquiries: info@swann.com.au

Product Code: S281-SDI

Optional straight mounting

High Resolution CCD Cameras

bracket for ceilings

Need help?

Do you have a question about the PTZ INTERNAL Speed Dome and is the answer not in the manual?

Page 1 PTZ INTERNAL Speed Dome Dome Camera with 27x Optical, 10x Digital Zoom The ideal solution for high performance surveillance with 480 TVL & 0.01 lux Dimension: 8.26”/210mm 7.08”/180mm • 1/4” Sony SUPERHAD CCD with minimum illumination of 0.01 lux Optional straight mounting •...
Page 2: Product Highlights
Video Remote PC RS-485 RS-485 RS-485 Application Uses: Swann offers a full line of PTZ cameras that deliver extraordinary capabili- Video Video ties in both image quality, and day-to-day performance for banks, petrol PC DVR Video stations, casinos, parking lots, supermarkets, hotels, restaurants, offices,...
