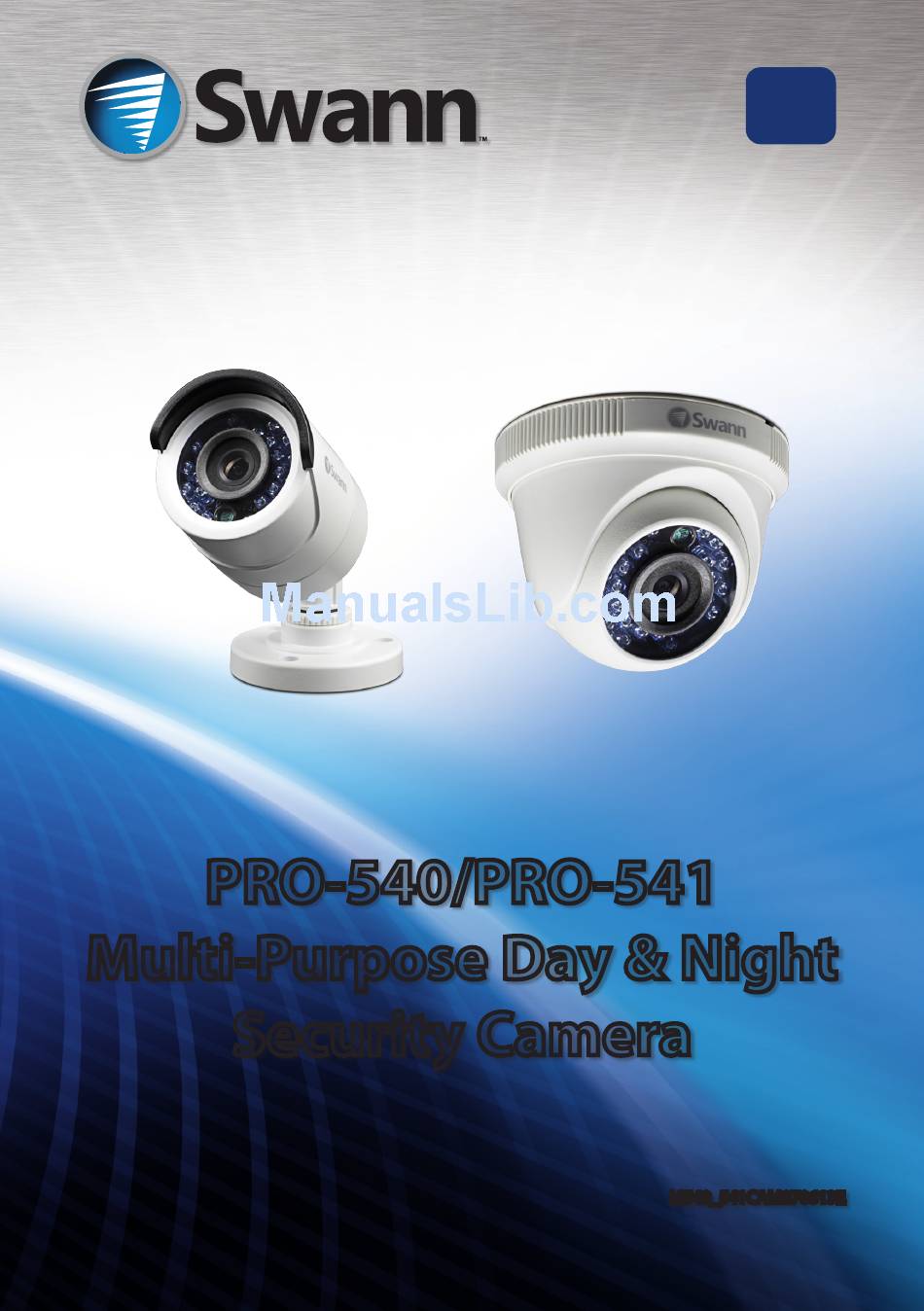

- Page 1 PRO-540/PRO-541 Multi-Purpose Day & Night Security Camera M540_541CAM070613E...
-
Page 2: Warranty Information, Verifications & Warnings
Any unit which proves defective during the stated period will be repaired without charge for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight charges incurred to send the product to a Swann repair centre. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin. - Page 3 • Operating Instructions The PRO-540/PRO-541 Camera is very sensitive to light and therefore can make use of even the smallest amount of light to provide an image of what it sees. In low light, this comes through as a black and white image.
-
Page 4: Connection Diagram
Connection Diagram For a single camera: Connect the camera’s DC and Connect the extension BNC socket cable to the extension cable’s DC socket to the cable’s DC and BNC plugs. Then DC plug on the power connect the BNC extension cable adapter. - Page 5 Choosing a Location for Your Camera(s) There are a number of factors you will need to consider when choosing where to mount your camera - not least of which is what you will want to see. Weather & Tampering The camera’s casing is resistant to water, different weather conditions and tampering. It would take an overwhelming event of this kind to damage the housing of the camera.
-
Page 6: Mounting Guide
Mounting Guide • Position the camera in the location you want to mount it, and mark the position on the surface to position the screws. • If you’re mounting to a wooden surface, then screw the camera directly to the surface. •... -
Page 7: Troubleshooting
Troubleshooting Q: On my Swann DVR, ‘Video Loss’ appears where the image from my camera should A: Check the extension cable (power and video) is securely connected to the camera. Check the video output from the camera is securely connected to a video input channel on the DVR. -
Page 8: Helpdesk/Technical Support Details
Helpdesk/Technical Support Details Swann Technical Support All Countries E-mail ~ tech@swann.com Telephone Helpdesk USA toll free AUSTRALIA toll free 1-800-627-2799 1300 138 324 USA Exchange & Repairs NEW ZEALAND toll free 1-800-627-2799 (Option 1) 0800 479 266 (M-F, 9am-5pm US PT) 0203 027 0979 ©...
