Summary of Contents for Trident Trident LGR 10079000

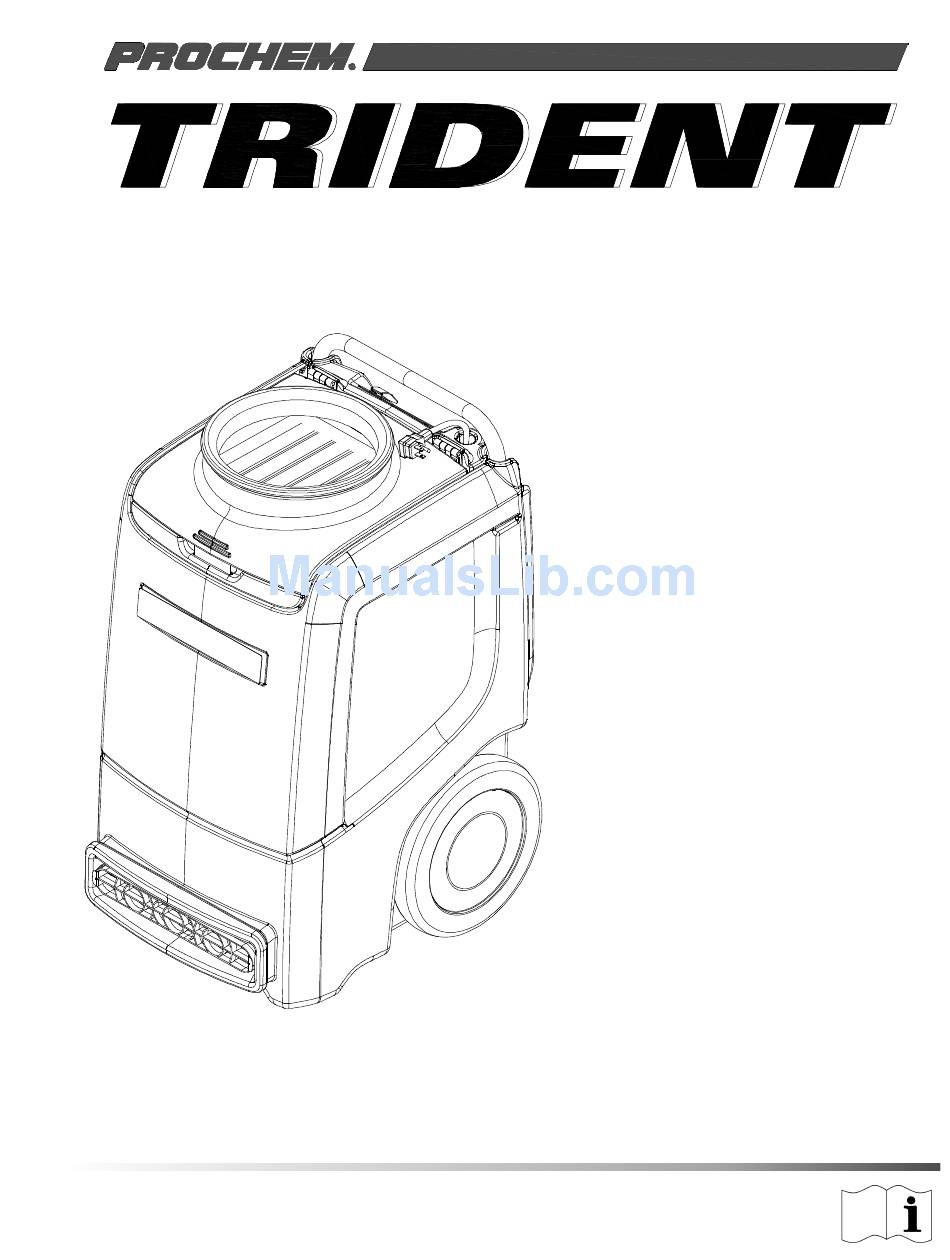

- Page 1 LGR DEHUMIDIFIER Operating instructions (ENG) MODEL: 10079000 Read these instructions before using the machine. 86352290-J 05/14/13...
-
Page 2: Machine Data Label
/ sanitation or other professionals needing to control humidity in an area. Warranty Registration Thank you for purchasing a Prochem product. Warranty registration is quick and easy. Your registration will allow us to serve you better over the lifetime of the product. -
Page 3: Table Of Contents
Table of Contents Maintenance Machine Data Label ......2 Overview ........2 Service Schedule . -
Page 4: How To Use This Manual
How To Use This Manual This manual contains the following sections: The SAFETY section contains important information regarding hazardous or unsafe practices of the • How to Use This Manual machine. Levels of hazards are identified that could • Safety result in product damage, personal injury, or severe •... -
Page 5: Safety
Safety IMPORTANT SAFETY INSTRUCTIONS When using this machine, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain or water. Use only as described in this manual. -
Page 6: Consignes Importantes De Sécurité
Safety CONSIGNES IMPORTANTES DE SÉCURITÉ Lors de l'utilisation d'un appareil électrique, il faut toujours observer des précautions élémentaires, qui comprennent parmi celles-ci: LISEZ BIEN L'ENSEMBLE DES CONSIGNES AVANT D'UTILISER CET APPAREIL. Utilisez-le exclusivement dans des endroits fermés. Ne l'utilisez pas en plein air et ne le laissez pas sous la pluie. Utilisez-le exclusivement de la manière décrite dans ce manuel. -
Page 7: Hazard Intensity Level
Safety The following symbols are used throughout this guide as indicated in their descriptions: HAZARD INTENSITY LEVEL There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR SAFETY. The level of hazard intensity is determined by the following definitions: WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. -
Page 8: Degrés De Risques En Cas De Danger
Safety Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions: DEGRÉS DE RISQUES EN CAS DE DANGER Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante: AVERTISSEMENT: AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou entraîner la mort. -
Page 9: 115V Grounding Instructions
Safety 115V Grounding Instructions ELECTRICAL: Grounding Pin In the USA this machine operates on a standard 15 GROUNDING CONNECTION amp 115V, 60 hz, A.C. power circuit. The amp, hertz, USING AN ADAPTOR and voltage are listed on the data label found on each Grounded machine. -
Page 10: Safety Label Location
Safety Safety Label Location NOTE: These drawings indicate the location of safety labels on the Machine. If, at any time, the labels become illegible contact your authorized representative for prompt replacement. Emplacement De L'étiquette De Sécurité REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment, les étiquettes deviennent illisibles, contactez votre représentant autorisé... -
Page 11: Operations
Operations Technical Specifications ITEM MEASURE Height 35 In (89 cm) Length 23 In (58 cm) Width 20.5 In (52 cm) Cord 25’ X 14 Gauge / 3 Wire Black Body Construction Rotationally Molded Polyethylene Frame Construction Powder Coated Steel Refrigerant R410A / 630 grams Water extraction / Day 110 pints @ 80°F/60% RH... -
Page 12: Components
Operations Components 1. Power Cord 2. Handle 3. Intake Nozzle/Cord Storage 4. Filter 5. Housing Lid 6. Ducting Flanges 7. Exhaust Nozzle 8. Wheels 9. Power Switch 10. Hour Meter 86352290 Trident LGR Dehumidifier... -
Page 13: How To Transport Dehumidifier
Operations How to Transport Dehumidifier Storing in Warehouse and in Delivery Truck: 1. Wrap the power cord around intake nozzle. Dehumidifiers should always be stored and transported 2. Tilt on back wheels with exhaust outlet pointing up. in an upright position. If the dehumidifier is transported 3. -
Page 14: Operating Dehumidifier
Operations Operating Dehumidifier Ducting Switch off and unplug machine from its power Never allow anything to block intake airflow. Be source before connecting ducting. careful of objects which could be drawn against intake. The fan must sit on a level surface. Always AVERTISSEMENT: position and orient machine before turning on. - Page 15 Operations Exhaust Ducting Intake Ducting 1. Place quick-ducting band over lay-flat duct 1. Unwrap cord from cord storage area. approximately 1 foot from end. 2. Place a quick-ducting band over ridged spiral duct 2. Slide ducting 3 or 4 inches over front exhaust about 1 foot from end.
-
Page 16: Back Draft Prevention
Operations Back Draft Prevention Purging Dehumidifier 1. After space reaches desired humidity level, press switch to Purge. This manually empties water from the condensate pump reservoir. Exhausting too much air from a space with Open Combustion Devices (e.g. furnace, fireplace or 2. -
Page 17: Maintenance
Maintenance Service Schedule Power Cord Daily Inspect for wear, fraying or cuts. Filter Daily Inspect, vacuum up to 3 times, replace as needed Coils Monthly Inspect, clean when visibly dirty Heat Exchange Block Monthly Inspect, clean with compressed air only when needed. Condensate Pump Monthly Inspect, clean when needed. -
Page 18: Fan Replacement
Maintenance Fan Replacement Thermistor Replacement The motorized impeller has internal thermal overload The defrost thermistor is attached to the refrigerant protection. If defective, the complete assembly must be suction line between the accumulator and the evapo- replaced. rator. 1. Unplug power cord. 1. -
Page 19: Troubleshooting
Maintenance Troubleshooting PROBLEM CAUSE SOLUTION Defective switch Replace switch. Nothing runs Defective control board Replace control board. Loose connection in internal wiring Find and repair loose connection. Compressor is not running. See compressor doesn’t run. Coils don’t get hot and cold Leak in system / refrigerant gone. - Page 20 Notes: 86352290 Trident LGR Dehumidifier...
-
Page 21: Parts
Parts PARTS 86352290 Trident LGR Dehumidifier... -
Page 22: Air Mover
Air Mover 86352290 Trident LGR Dehumidifier... - Page 23 Air Mover SERIAL NO. PART NO. QTY DESCRIPTION NOTES FROM 86349360 SCR, PHMS M6 X 25 SS 86341580 SPACER, DEHU IMPELLER 86337710 PLATE, AIR MOVER MOUNT 86337700 FAN ASM, DEHU 250MM 86264920 CABLE TIE, .19 X 7 86173320 WASHER, M4, FL, ISO7089, SST 86173310 WASHER,SPRING LK,6MM,DIN127B,SS 86172870...
-
Page 24: Compressor
Compressor 86352290 Trident LGR Dehumidifier... - Page 25 Compressor SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86350050 DISCHARGE TUBE 86172650 NUT, M6, LK, ISO7040, SST 86337650 AIR TO AIR HEAT EXCHANGER 86337630 BRKT, COMPRESSOR MOUNT 86337530 ACCUMULATOR, SUPPLEMENTAL 86337510 COMPRESSOR, R410-A, 8200 86013850 WASHER, M6, FNDR, ISO7093, SS 86352290 Trident LGR Dehumidifier...
-
Page 26: Electronics
Electronics 86352290 Trident LGR Dehumidifier... - Page 27 Electronics SERIAL PART NO. QTY DESCRIPTION NOTES NO. FROM 86349620 CORD ASSY, 14/3 SJT X 30' BLK 86346210 CASE, CAPACITOR 86343660 CAPACITOR, 45 µF 86374070 COVER, DEHU ELECTRICAL *(1) 86343250 NUT, HEX M3 86343240 SPACER, M3 X 5mm 86343220 FRAME, DEHU ELECTRICAL 86342910 CLAMP 40MM ID 86341930...
-
Page 28: Frame & Wheels
Frame & Wheels 86352290 Trident LGR Dehumidifier... - Page 29 Frame & Wheels SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86341010 BRKT, ATTACHMENT 86001660 HUBCAP, 5/8 SHAFT 86337600 BRKT, REAR ATAXH SUPPORT 86337540 FRAME ASSY, DEHU 86337480 BUSHING, 5/8" AXLE 86337470 BRKT, AXLE MOUNT 86337450 AXLE, DEHU 86331810 WASHER, M5 SPLIT LOCK SS 86331700 SCR, M5 X 25 PPHMS SS 86331680...
-
Page 30: Housing
Housing 86352290 Trident LGR Dehumidifier... - Page 31 Housing SERIAL PART NO. DESCRIPTION NOTES NO. FROM 86349360 SCR, PHMS M6 X 25 SS 86013850 WASHER, M6, FNDR, ISO7039,SS 86341780 BRKT, GUARD 86341770 GUARD, FRONT, DEHU 86340860 SCR, M6 X 50 PHMS SS 86350540 PLATE, BACK PANEL WITH GASKET 86337440 HANDLE, DEHU 86333040...
-
Page 32: Housing-Upper
Housing-Upper 86352290 Trident LGR Dehumidifier... - Page 33 Housing-Upper SERIAL PART NO. DESCRIPTION NOTES NO. FROM 86349400 SCR, M4 X 20 FHMS SS 86349360 SCR, M4 X 25 PHMS SS 86349230 FAIRING W/ SEALS 86337460 FILTER, 14 X 14 X 1 MIRV 86337430 CATCH LEVER 86337420 HINGE, 2 X 1.2 PLASTIC 86173330 WASHER, M5, FLAT, ISO7093, SS 86173320...
-
Page 34: Condensate Pump
Condensate Pump 86352290 Trident LGR Dehumidifier... - Page 35 Condensate Pump SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86351420 FITTING, QUICK DISCONNECT 86341910 TUBE, CONDENSATE PUMP 86341900 PUMP ASSY, DEHU 86341710 HOSE, .5" ID X 5.25" LONG 86337720 PLATE, BACK PLATE 86350040 BRKT, PUMP MOUNT 86302700 SCR, M6 X 16 PH, SS 86173310 WASHER,SPRING LK,6MM,DIN127B,SS 86172640...
-
Page 36: Refrigeration
Refrigeration 86352290 Trident LGR Dehumidifier... - Page 37 Refrigeration SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86349390 THERMISTOR ASSY 86349270 FAN SHROUD W/SEALS 86349250 RIGHT CAP W/SEAL 86349240 LEFT CAP W/SEAL 86349190 GASKET, EVAP COIL 86172950 SCR, M5X12, SHCS, ISO4762, SS 86340990 TRAY, CONDENSATE LINER 86337520 CAPILLARY TUBE .049 X 48 IN 86337500 EVAPORATOR 110 PINT 86337490...
-
Page 38: Wiring Diagram
Wiring Diagram sw/1 ws/2 ge/3 120V/60Hz -HOUR -MAIN SWITCH 10 2 1.116 bn/4 sw/1 1.141 -PCB -SENSOR sw/9 +PUMP +FAN sw/10 ws/18 1.107 1.134 bn/14 rt/6 bl/5 ge/13 bn/4 bl/11 bl/12 bn/8 bl/7 ge/15 vi/17 bl/21 bl/16 bn/20 -PUMP -FAN -COMPRESSOR ge/19 86352290 Trident LGR Dehumidifier... - Page 39 Wiring Diagram SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86337830 HARNESS, DEHU 110 PINT 86351670 HARNESS, DEHU HOUR METER 86352290 Trident LGR Dehumidifier...
- Page 40 Suggested Spare Parts SERIAL NO. PART NO. DESCRIPTION NOTES FROM 86349620 CORD ASSY, 14/3 SJT X 30' BLK 86343660 CAPACITOR, 45 µF 86341930 CAPACITOR, 25 µF 86256940 SWITCH SPOT ROCKER 86315470 METER, HOUR ICD 86309790 WHEEL, 12" X 2.25" 86219480 HUBCAP, 9.75"...
-
Page 41: Serial Numbers
Serial Numbers REF. MODEL: SERIAL # 10079000000471 86352290 Trident LGR Dehumidifier...
