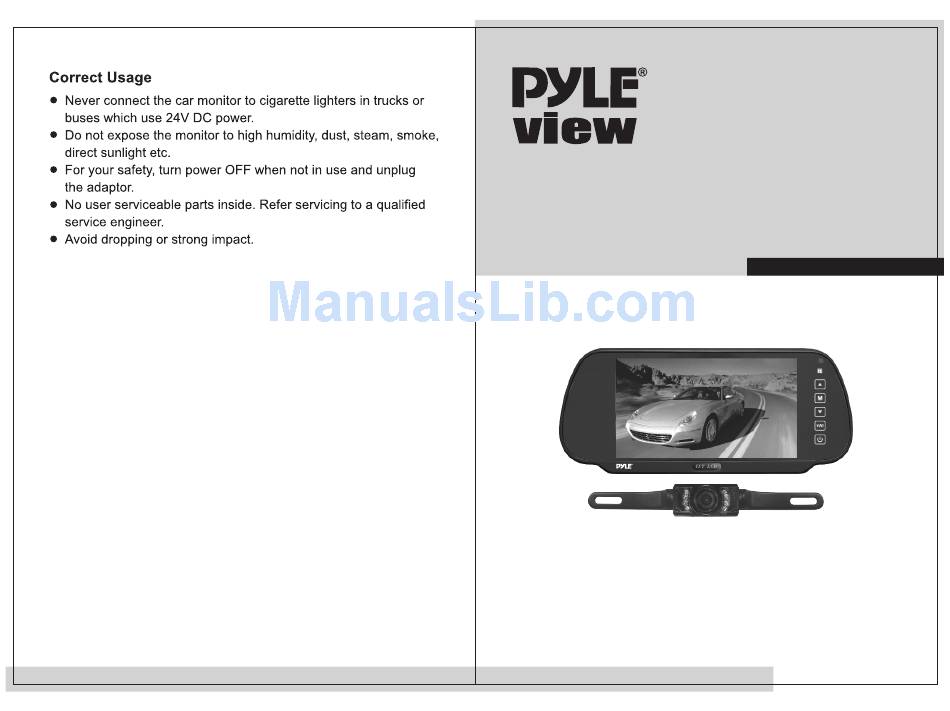

- Page 1 Instruction Manual PLCM7200 PLCM7200 7" TFT Mirror Monitor w/ Rear-View Night Vision Camera W W W . P Y L E A U D I O . C O M...
- Page 2 Function keys panel Wire diagram PLCM7200 PLCM7200 (Green)reverse car (Red)battery+12v (Black)grounding 1. Remote window (Yellow)video 1 input 2. Analog variable increase 3. Menu (Yellow)video 2 input 4. Analog variable decrease 5. Exchange between V1/V2 6. Power on/off Press MENU to display the adjustments in this order.
