SPECIFICATIONS
GENERAL
Supply Voltage
DC 12V. Negative Ground
Current Consumption
Max.7A
Power Output
4 X 7Watts.
Number of channels
2 STEREO channels.
Unit Dimensions
178[W] X 154[D] X 50[H] mm.
FM SECTION
Frequency range
88MHz -108MHz
Effective sensitivity
10uV.
I.F Frequency
10.7MHz.
AM(MW) SECTION
Frequency range
530KHz - 1700KHz
RCA LINE OUT
Output
CD Max. 800mV.
CD PLAYER
System
Compact Disc Audio System.
Suitable CDs
CD, CD-R, CD-RW Disc.
Frequency characteristics
40Hz-100Hz < 5dB
10KHz-20KHz < 5dB.
S/N Ratio to CD
60dB [1KHz]
Specifications subject to change, forgive without notification.

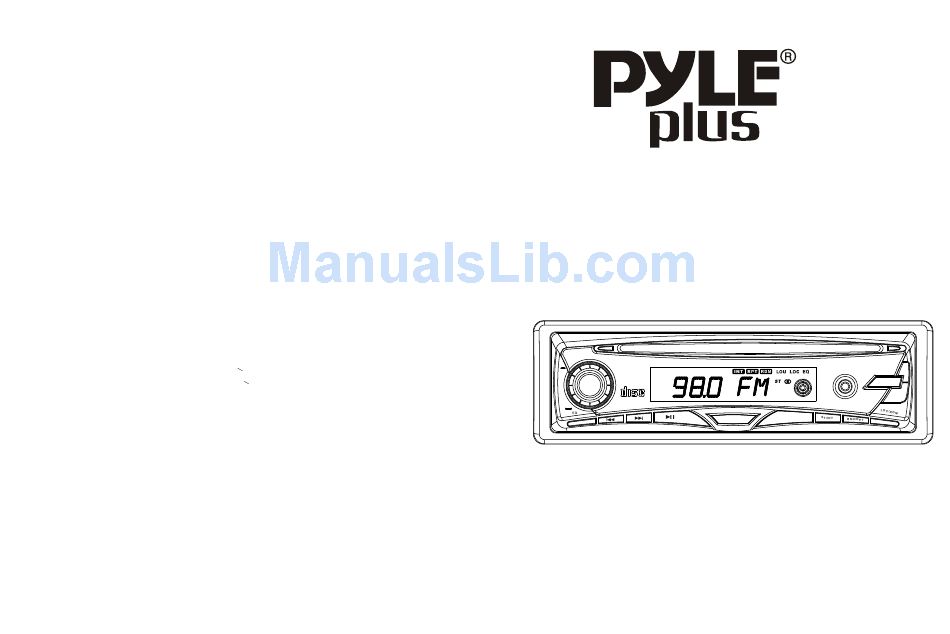

INSTRUCTION MANUAL
OPEN
Detachable Front Panel CAR Radio & CD Player
FM
TUNE
COMPACT
DIGITAL AUDIO
/MUTE
THEFT DETERRENT DETACHABLE SYSTEM
AUTO-LOADING DISC COMPACT DISC PLAYER
AM/FM STEREO 2-BAND TUNING RECEIVER
www.pyleaudio.com
PLCD23A
EJECT
+
SEL
MHz
_
AUX IN
MODE/LOUD
POWER
Advertisement
Related Manuals for Pyle Plus PLCD23A
Summary of Contents for Pyle Plus PLCD23A
- Page 1 DC 12V. Negative Ground Current Consumption Max.7A Power Output 4 X 7Watts. Number of channels 2 STEREO channels. Unit Dimensions 178[W] X 154[D] X 50[H] mm. PLCD23A FM SECTION Frequency range 88MHz -108MHz Effective sensitivity 10uV. I.F Frequency 10.7MHz. INSTRUCTION MANUAL...
- Page 2 Preface INSTALLATION METHOD Thank you for purchasing this car audio product. Please read this manual carefully before operating this car audio product. This is an anti-theft installation method. The main unit wears a METAL MOUNTING SLEEVE. Please keep this manual for future use. It will be helpful to you if you are encounter any Please connect the wiring, eg, the Power supply, the Speakers and the Antenna operational problem.
-
Page 3: Wiring Diagram
WIRING DIAGRAM LOCATION AND FUNCTION OF CONTROLS ANTENNA PLUG FUSE 7A YELLOW CONSTANT B+ RCA OUTPUT LINE RED R BLACK(GND) WHITE L OPEN EJECT Detachable Front Panel CAR Radio & CD Player FUSE 0.5A IGNITION SWITCH FUSE 0.5A TUNE RED (B+) BLUE AUTO ANT COMPACT FRONT... -
Page 4: Troubleshooting
TROUBLE SHOOTING General Controls 1. OPEN BUTTON Before using the check list please make all the connections first. To remove the front panel from the main body, press the OPEN key. And the If you still have questions after going through the checklist, please consult anti-theft LED indicator will be flashed all the time till the front panel be refixed your local customer service representative. - Page 5 CARE FOR USING CD'S: 9. MODE BUTTON Ò É Ä Ñ ½ â ³ ý Press the MODE(MOD) button to select the CDP (if disc is loaded into the disc slot), RADIO or AUX mode. About CD-R/CD-R/W discs: In addition to commercially-recorded audio CD's, this unit can play CD-R and CD-R/W discs.
- Page 6 Disc Playback Controls PRECAUTIONS AND MAINTENANCE 1. TO LOAD/UNLOAD DISC CAUTION: Do not install the detachable panel before connecting the wire. Insert a disc into the disc slot with label surface up, it will automatically play the 1. The unit is designed for negative terminal of the battery which is connected to the vehicle metal. first track in the disc several seconds later.
