INSTALLATION
PRECAUTIONS
1. Choose the mounting location carefully so that the unit will not interfere with the
normal driving functions of the driver.
2. Avoid installing the unit where it would be subject to high temperatures, such as
from direct sunlight or hot air from the heater, or where it would be subject to
damp, dust, dirt or excessive vibration.
3. Use only the supplied mounting hardware for a safe and secure installation.

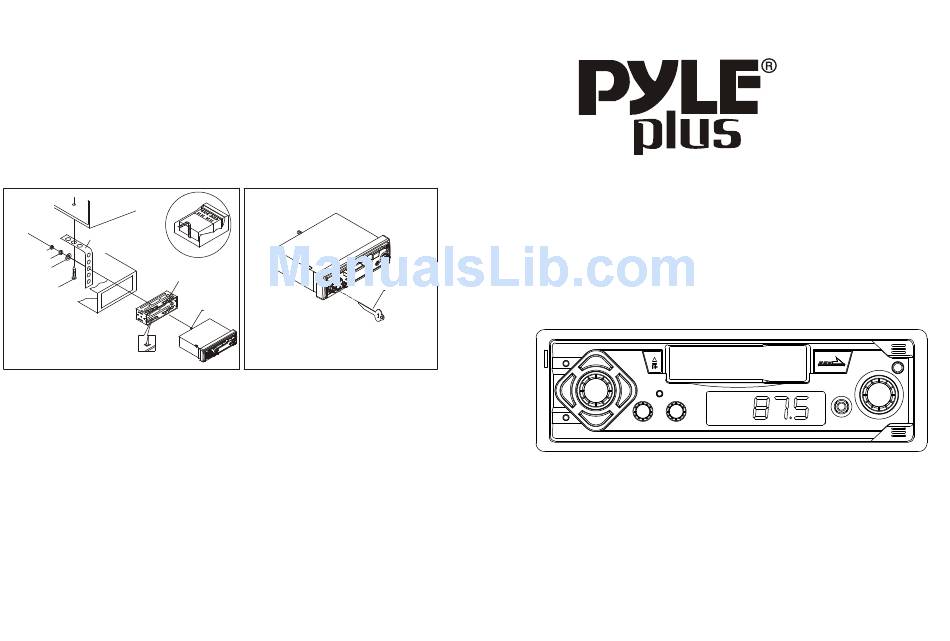

DASH BOARD
METAL MOUNTING STRAP
HEX NUT
SPRING WASHER
CONSOLE
PLAIN WASHER
SLIDE BRACKET HOUSING
TAPPING SCREW
SPECIFICATION
GENERAL
Power Supply Requirements
Unit Dimensions
FM SECTION
Frequency Range
AM SECTION
Frequency Range
HEX BOLT
To remove the player from the Cage, insert the supplied key
into the slot of the chassis then pull the chassis out of the
cage as shown.
DC 12Volts. Negative Ground.
178[W]X150[D]X50[H] mm.
88MHz - 108MHz.
530KHz - 1700KHz.
KEY PLATE
H
BD
M
THEFT DETERRENT DETACHABLE SYSTEM
AUTO-STOP CAR CASSETTE PLAYER
AM/FM 2 BAND LCD DISPLAY TUNING RADIO
INSTRUCTION MANUAL
PWR
F/C
VOL
ST
BAL
TONE
FM
MHz
LOC
www.pyleaudio.com
AT-3040
AUTO STOP
REL
TUNE
CD IN
Advertisement
Related Manuals for Pyle Plus AT-3040
Summary of Contents for Pyle Plus AT-3040
-
Page 1: Instruction Manual
FM SECTION Frequency Range 88MHz - 108MHz. AM SECTION Frequency Range 530KHz - 1700KHz. INSTRUCTION MANUAL KEY PLATE THEFT DETERRENT DETACHABLE SYSTEM AUTO-STOP CAR CASSETTE PLAYER AM/FM 2 BAND LCD DISPLAY TUNING RADIO AT-3040 AUTO STOP TUNE TONE CD IN www.pyleaudio.com... -
Page 2: Location And Function Of Controls
LOCATION AND FUNCTION OF CONTROLS TONE 1. POWER ON/OFF BUTTON Press this button to turn the power supply on or off. 2. VOLUME CONTROL Slide this control up or down to increase or decrease the volume level. 3. CASSETTE TAPE DOOR In RADIO mode, insert a cassette into this slot, the tape playback starts automatically.
