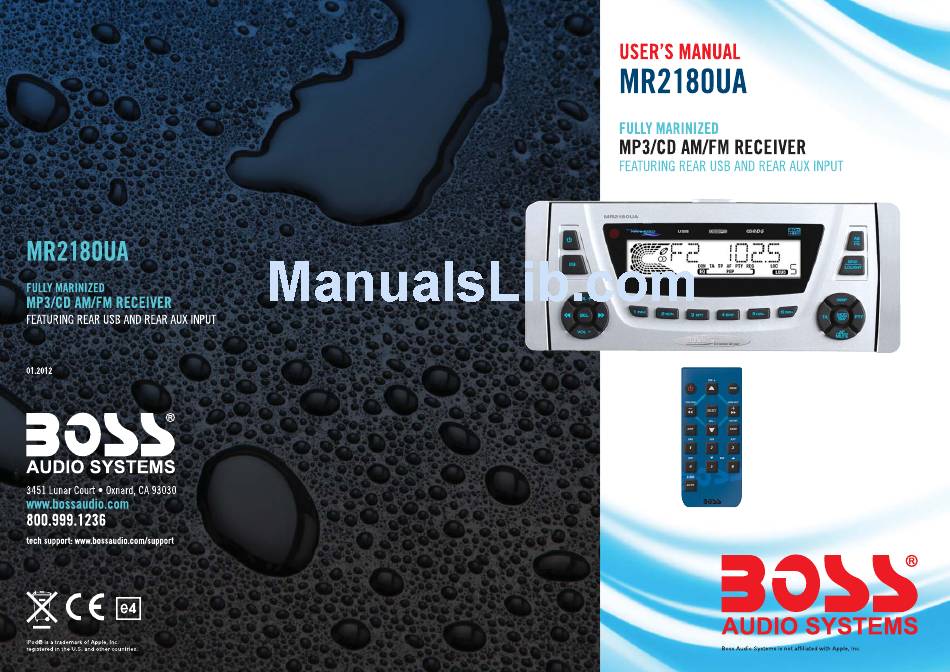

  • Page 2 MR2180UA OWNER’S MANUAL Mobile Audio System PLL Synthesizer Stereo Radio CD/MP3/WMA Player RBDS Operation Automatic Memory Storing Preset Equalization Electronic Shockproof (ESP) Function USB Interface Auxiliary Input Function Remote Control...

  • Page 3: Table Of Contents

    CONTENTS Installation ........... 3 USB operation ........9 Take out screw before installation ..3 Disc notes..........10 Wiring Connection ......4 Remote control........11 Specification........12 Operation..........5 Location of keys........5 Trouble shooting.........13 Basic operation ........6 Switching on/off the unit ....6 Sound adjustment ......

  • Page 4: Installation

    INSTALLATION Notes: seal the two holes after remove the screws. Choose the mounting location where And this will be waterproof. the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect Installation Opening the wiring temporarily and make sure it You can select the installation area and the is all connected up properly and the...

  • Page 5: Wiring Connection

    WIRING CONNECTION Connector A 1. N.C. 2. N.C. 3. N.C. 4. MEMORY +12V (YELLOW) 5. AUTO ANTENNA OUTPUT (BLUE) 6. N.C. 7. +12V (TO IGNITION KEY) (RED) 8. GROUND (BLACK) Connector B 1. REAR RIGHT SPEAKER (+) (VIOLET) 2. REAR RIGHT SPEAKER (-) (VIOLET/BLACK) 3.

  • Page 6: Operation

    OPERATION LOCATION OF KEYS 1. EQ button 14. 1-6 preset buttons (power) button 15. 4 SHF button 3. Remote sensor 16. 3 RPT button 4. Liquid crystal display 17. 2 SCN button 5. BND/LOUD/ENT button 18. 1 PAU button 6. AS/PS button tune/seek/track up button 7.

  • Page 7: Basic Operation

    OPERATION BASIC OPERATION 3) TA SEEK/ALARM Use the VOL+/- buttons (23&20) to SWITCHING ON/OFF THE UNIT Switch on the unit by pressing any button set TA SEEK or TA ALARM. (except button (26)). When system is Traffic announcements on, press button (2) to turn off the unit.

  • Page 8: Esp Function

    OPERATION “MANUAL” appears on the display, the ESP FUNCTION manual tuning mode is selected. If both The unit can be shockproof about ten buttons have not been pressed for several seconds. seconds, it will return to seek tuning mode and “AUTO” appears on the display. REMOTE SENSOR Point the remote control handset to the AUTOMATIC MEMORY STORING &...

  • Page 9: Cd/Mp3/Wma Operation

    OPERATION REPEATING TRACKS Then press button (22&19), the Press RPT button (16) to continuously unit will search program repeat the same track. Press it again to automatically. there stop repeat. corresponding program searched, the When playing MP3/WMA disc, press and unit will play the program.

  • Page 10: Usb Operation

    OPERATION played by pressing BND/LOU/ENT BND/LOU/ENT button (5) to start button. playing the track. 3) DISPLAY INFORMATION Searching Directory or File Name Press DISP button (7) to show the Press AS/PS button (6) for two times. It following information, such as the clock, enters into “Searching Directory or ID3 TAG (if available: song title, directory File Name”...

  • Page 11: Disc Notes

    OPERATION operation may cause file loss. And our C. Notes on MP3 files (MP3 Version company assumes no responsibility for Only): this. 1. The disc must be in the ISO9660 level 1 or level 2 format, or Joliet or Romeo in DISC NOTES the expansion format.

  • Page 12: Remote Control

    REMOTE CONTROL 1. VOL+: Volume Up Button (Character Select (A, B~8,9,0, _,-,+) For MP3/WMA Operation) : Power ON/OFF Button 3. SEL: Sound Mode Select Button (Character Shift Right For MP3/WMA Operation) 4. TUNE/SKIP : Tune/Seek Down Button 5. DISP: Display Button 6.

  • Page 13: Specification

    SPECIFICATION GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 178 (W) x 160 (D) x 50 (H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power : 4x80 watts Current Drain : 15 Ampere (max.)

  • Page 14: Trouble Shooting

    TROUBLE SHOOTING Before going through the checklist, check wiring connection. If any of the problems persist after checklist has been made, consult your nearest service dealer. Symptom Cause Solution The ignition switch is not If the power supply is No power. connected to the car accessory circuits, but the engine is not moving, switch the ignition key...
