P16-M

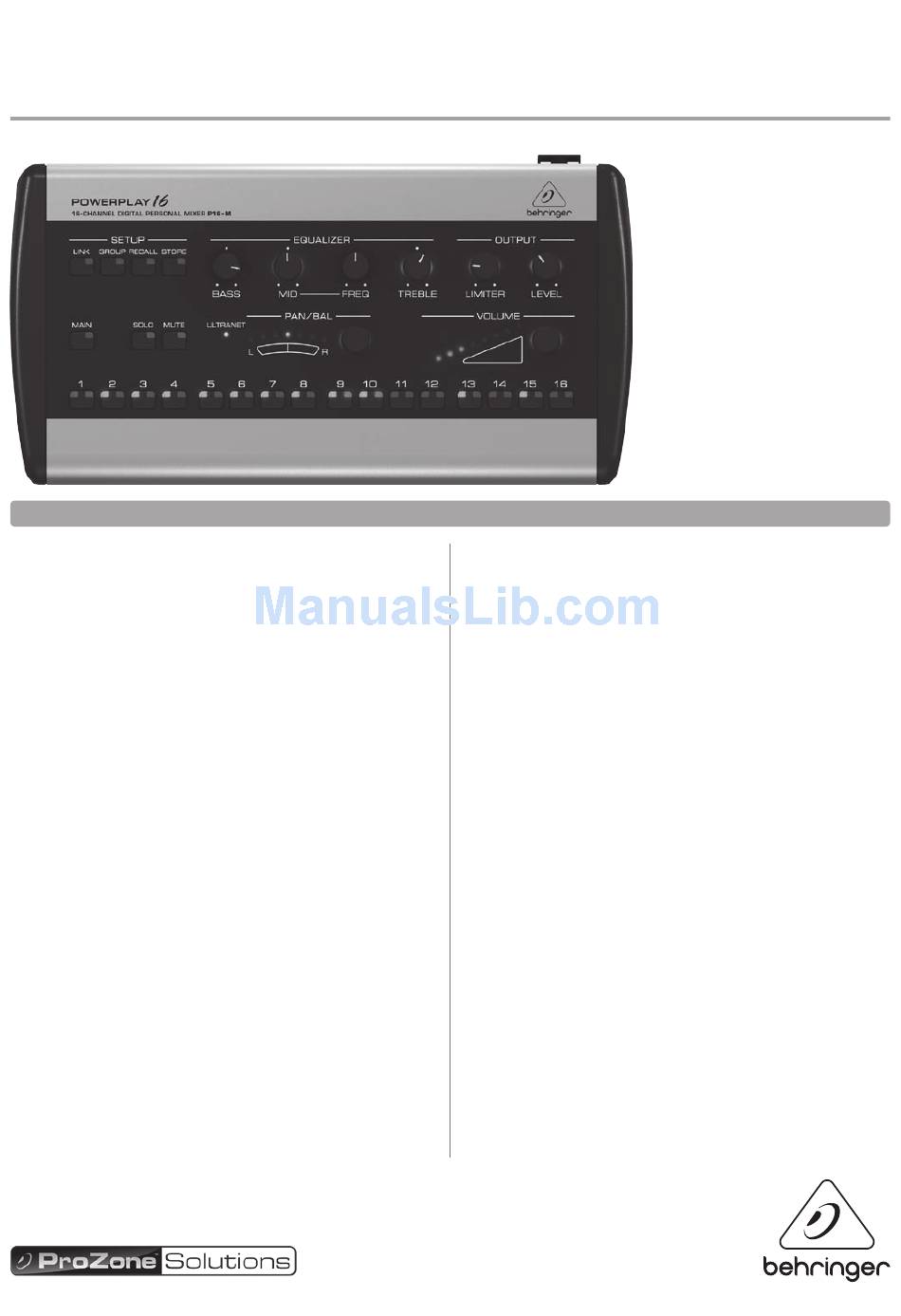

16-Channel Digital Personal Mixer
Features
• 16-channel digital stereo mixer to create your personal
monitor mix
• Ultra-intuitive "analog" operation with total recall and
16 presets for custom mixes
• State-of-the-art 24-bit D/A converters for premium
audio quality
• 16 Channel Select buttons with dual LEDs for
perfect overview
• Level and Pan/Balance control per channel with
LED meter
• 3-band EQ per channel with mid-band frequency
control
• Solo and Mute functions per channel
• Global Level and EQ controls plus Panic Mute function
• High power and "drummer proof" headphones output
• Fully adjustable limiter protects your ears
and headphones
• Additional mono/stereo line output to connect your
powered monitor
• MIDI IN port for real-time remote control of all
channels by external MIDI device such as BEHRINGER
BCF2000, BCR2000, etc.
• Standard CAT5e connection delivers power and 16
signals to each Personal Mixer
• ULTRANET connector to daisy-chain up to forty-eight
P16-M mixers for large systems (in conjunction with
P16-D)
• Ultra-low system latency of less than 1 millisecond
• Powered via external power supply (included) or
P16-I / P16-D
• Mounts easily on a mic stand with the P16-MB mic
stand mount (not included)
• Extremely rugged construction ensures long life even
under the most demanding conditions
• Conceived and designed by BEHRINGER Germany
Advertisement
Related Manuals for Behringer POWERPLAY 16 P16-M
Summary of Contents for Behringer POWERPLAY 16 P16-M
- Page 1 • State-of-the-art 24-bit D/A converters for premium audio quality • ULTRANET connector to daisy-chain up to forty-eight P16-M mixers for large systems (in conjunction with • 16 Channel Select buttons with dual LEDs for P16-D) perfect overview • Ultra-low system latency of less than 1 millisecond • Level and Pan/Balance control per channel with LED meter • Powered via external power supply (included) or P16-I / P16-D • 3-band EQ per channel with mid-band frequency control • Mounts easily on a mic stand with the P16-MB mic stand mount (not included) • Solo and Mute functions per channel • Extremely rugged construction ensures long life even • Global Level and EQ controls plus Panic Mute function under the most demanding conditions • High power and "drummer proof" headphones output • Conceived and designed by BEHRINGER Germany • Fully adjustable limiter protects your ears and headphones • Additional mono/stereo line output to connect your powered monitor...
-
Page 2: Product Overview
P16-M 16-Channel Digital Personal Mixer Product Overview The POWERPLAY P16-M digital monitoring mixer is the In the OUTPUT section of controls, the LEVEL knob controls heart of the POWERPLAY 16 personal monitor system. the final output volume, while the LIMITER knob allows the The P16-M's user interface offers individual mix control user to set the limiter threshold and protect their hearing over 16 channels of 24-bit digital audio delivered over the from sudden volume spikes. In the event the volume level proprietary BEHRINGER ULTRANET digital audio system. does become threatening, the unit includes an emergency The ULTRANET system deploys CAT5e cable to connect MUTE function easily accessible from a button on the the P16-M to a variety of devices, such as the P16-I Input top panel. Module and P16-D ULTRANET Distributor, as well as For analog audio output, the back panel features a 1/4" TRS providing a direct, seamless digital connection to the X32 headphone output, as well as unbalanced 1/4" LINE OUT Digital Mixer. jacks for use with powered monitors. All functions may 24-bit digital audio first enters the P16-M through the also be controlled remotely via the dedicated MIDI IN CAT5e ULTRANET IN connection on the back panel. Once connection. inside the P16-M, the digital audio passes to the digital The ULTRANET system also provides useful additional mixer section, where individual channels can be selected functions. If an outlet is unavailable for the power adapter, and tweaked using top-panel controls. For each channel, the ULTRANET IN jack can also be used to provide remote the controls include CHANNEL SELECT, VOLUME (with bus power from power-equipped ULTRANET devices to the level LEDs), stereo PAN/BAL(ance), and a set of EQUALIZER P16-M, in addition to digital audio. Digital audio may also... -
Page 3: Technical Specifications
P16-M 16-Channel Digital Personal Mixer Technical Specifications Personal Mixer Ultranet Digital Network Connections Digital Processing • Phones 1/4" TRS, stereo • D/A conversion 24-bit, 44.1 / 48 kHz sample rate • Line out 2 x 1/4" TS, unbalanced • Converter type 24-bit, delta-sigma • Ultranet Thru / In 2 x RJ45 System • MIDI in 5-pin MIDI connector • Signal 1 6 channels, plus bus-power for P16-M Controls • Latency <0.9 ms (from P16-I to P16-M) • Equalizer • Frequency response... -
Page 4: Block Diagram
P16-M 16-Channel Digital Personal Mixer Block Diagram P16-I INPUT MODULE DIGITAL 16-CHANNEL P16-M DIGITAL ULTRANET IN SIGNAL PERSONAL MIXER P16-D DIGITAL ULTRANET HUB P16-M DIGITAL ULTRANET THRU PERSONAL MIXER MAIN BUS VOLUME BASS FREQ TREBLE SELECT 16-CHANNEL DIGITAL PERSONAL MIXER VOLUME BASS FREQ... -
Page 5: Dimensional Drawings
127.00 mm [5.0000 in] Copyright © 2012 MUSIC Group IP Ltd. All rights reserved. MIDAS, KLARK TEKNIK, BEHRINGER and BUGERA are part of the MUSIC Group (music-group.com). The information contained herein is correct at the time of printing. Technical specifications and appearance are subject to change without notice.
