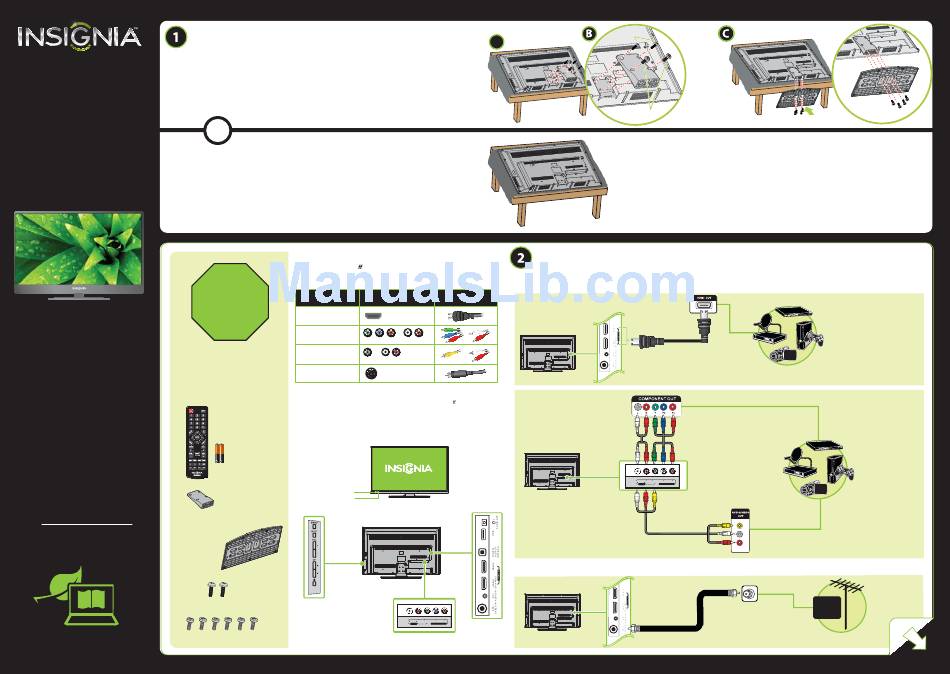

QUICK SETUP
GUIDE
37" LED TV
NS-37D20SNA14/LE-37MY83
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Stand column
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface
to protect the screen from damages and scratches.
B Align the stand column with the TV, then secure the stand column
to the TV using two M4 and two T4 screws (All screws are provided.)
C Align the TV stand with the stand column, then secure the TV stand
to the column with four provided T4 screws.
- OR -
How do I prepare my TV for wall mounting?
A Carefully place your TV face-down on a cushioned, clean surface to protect the screen from
damages and scratches.
B See the instructions that came with your wall mount for more information about how
to correctly mount your TV.
Which cables do you have?
Your TV has several di erent jacks for connecting devices. For the
best video quality, use the best available connection. Use the cables
STOP!
that came with your devices.
Do not plug your
VIDEO QUALITY
power cord in until all
other devices have
BEST
been connected.
BETTER
Component video and analog audio
GOOD
Composite video and analog audio
GOOD
Note: You can use the HDMI1(DVI+ARC) jack to connect a DVI device to your TV. Attach
an HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
device's jack. See your online User Guide for more information about di erent types of
HDMI (ARC and DVI).
Features
Front view
Remote control
and two AAA batteries
Remote control sensor
Power indicator
Back view
TV stand
M4 screws (12 mm length) (2 pcs. )
T4 screws (12 mm length) (6 pcs.)
Note: Images do not necessarily represent the exact design of your television.
Before using your new product, please read these instructions to prevent any damage.
A
(not for use with a TV stand)
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) or connect a device such as a DVD or
Blu-ray Disc player, game console, or camcorder?
JACK TYPE
CABLE CONNECTOR
Using an HDMI cable (BEST)
HDMI video/audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
How do I connect my TV to an antenna or cable wall jack?
L
AUDIO
R
Y/VIDEO
P
B
P
R
AV IN
COMPONENT IN
M4 screws
T4 screws
Component cable option
L
AUDIO
R
Y/VIDEO
P
P
B
R
COMPONENT IN
AV IN
AV cable option
T4 screws
Front
Multipurpose jacks: You can plug any
device that uses HDMI into either HDMI
jack. However, an ARC or DVI device must
be connected to the HDMI1 (DVI+ARC)
jack. See the instructions that came
with your DVI device for more
information.
Note: The HDMI1 (DVI +ARC) jack is a
shared jack. This means that you can
connect only one ARC or DVI device at
a time.
Note: The component video and AV
jacks are shared. This means you can
connect only one component video or
AV device at a time. We suggest using
HDMI if your device supports it.
Note: Connect the yellow video cable
connector to the green Y/VIDEO jack
on the back of your TV.
CABLE
OVER
