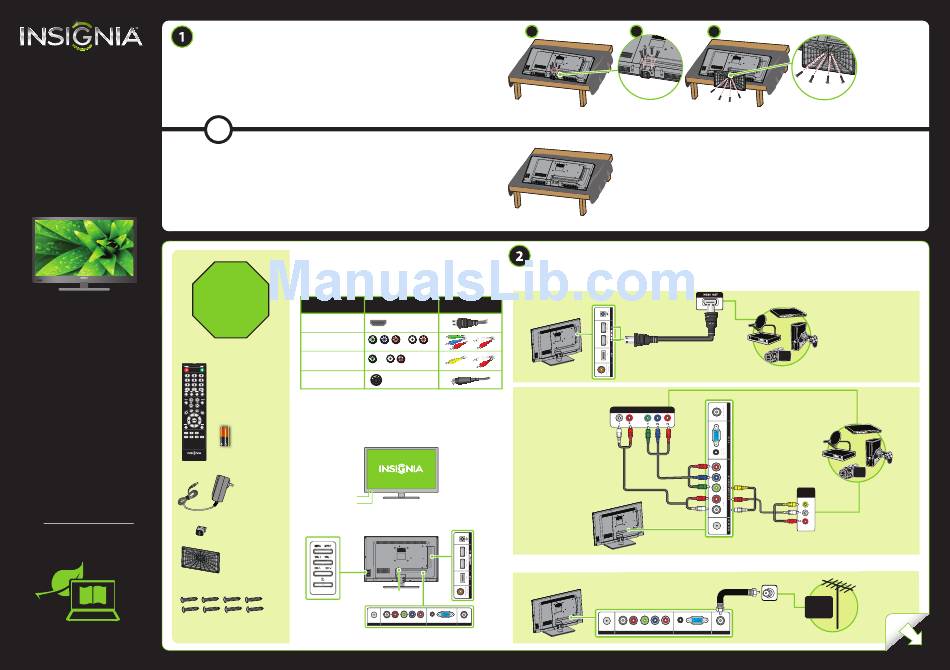

Insignia NS-24E40SNA14 Quick Setup Manual

QUICK
SETUP GUIDE
24" LED TV
NS-24E40SNA14
Thank you
for purchasing this state-of-the-art
Insignia television. We hope you enjoy
the quality and reliability of this
television for years to come.
Included accessories
FIND YOUR
USER GUIDE ONLINE!
We are going green so a copy of your
User Guide is not provided in the box
but is available online.
Go to www.insigniaproducts.com,
then click Support & Service. Enter your
model number in the box under Manual,
Firmware, Drivers & Product Information,
then click .
M4 screws
(12 mm length) (8 pcs.)
START HERE
How do I attach the stand to my TV?
(not for wall mounting)
You'll need: A Phillips screwdriver and a soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect the
screen from damages and scratches.
B Attach the stand column to the TV using the four of the provided M4 screws.
C Attach the stand to the stand column using the four of the provided M4 screws.
- OR -
How do I prepare my TV for wall mounting?
You'll need: A soft surface to lay the TV on.
A Carefully place your TV face-down on a cushioned, clean surface to protect
the screen from damages and scratches.
B Attach the wall-mount bracket to your TV using the mounting holes on the
back of your TV. See the instructions that came with the wall-mount bracket
for information about how to correctly hang your TV.
Which cables do you have?
Your TV has several different jacks for connecting devices. For the
STOP!
best video quality, use the best available connection. Use the cables
Do not plug your
that came with your devices.
power adapter in until
all other devices have
VIDEO QUALITY
been connected.
BEST
BETTER
Component video and analog audio
GOOD
GOOD
Note: You can use the HDMI 1/DVI jack to connect a DVI device to your TV. Attach an
Remote control
HDMI-to-DVI adapter to the end of the HDMI cable. The adapter connects to the DVI
and two AAA batteries device's jack. See your online User Guide for more information about different types of
HDMI (ARC, DVI).
Features
Front view
NS-RC6NA-14
Power indicator
Remote control sensor
Power adapter
Back view
Stand column
TV stand
Note: Images do not necessarily represent the exact design of your television.
A
(not for use with a TV stand)
MAKING CONNECTIONS
How do I watch TV (cable or satellite receiver) and/or connect a device such as
a DVD or Blu-ray Disc player, game station, or camcorder?
Using an HDMI cable (BEST)
JACK TYPE CABLE CONNECTOR
HDMI video/audio
Composite video and analog audio
Coaxial video/audio
Using component cables (BETTER)
- OR -
Using an AV cable (GOOD)
Note: Connect the yellow video
cable to the green Y/VIDEO jack on
the back of your TV.
How do I connect my TV to an antenna or cable wall jack?
Power connector
PC / DVI
VGA
DC 12V L AUDIO R VIDEO / Y P B P R AUDIO IN ANT / CABLE IN
POWER IN AV / COMPONENT IN PC IN
Before using your new product, please read these instructions to prevent any damage.
B C
M4 screws (12 mm)
Component cable option
AUDIO/VIDEO OUT
PC / DVI
VGA
DC 12V L AUDIO R VIDEO / Y P B P R ANT / CABLE IN
AUDIO IN
POWER IN AV / COMPONENT IN PC IN
M4 screws (12 mm)
Multi-purpose jacks: You can plug
any device that uses HDMI into
either of the HDMI jacks. However,
certain devices must be connected to
HDMI1/DVI or HDMI2/ARC. See the
instructions that came with your ARC
or DVI device for more information.
AUDIO/VIDEO
OUT
AV cable option
Note: The component and AV jacks
are shared. This means you can
connect only one component or AV
device at a time. We suggest using
HDMI if your device supports it.
CABLE
OVER
