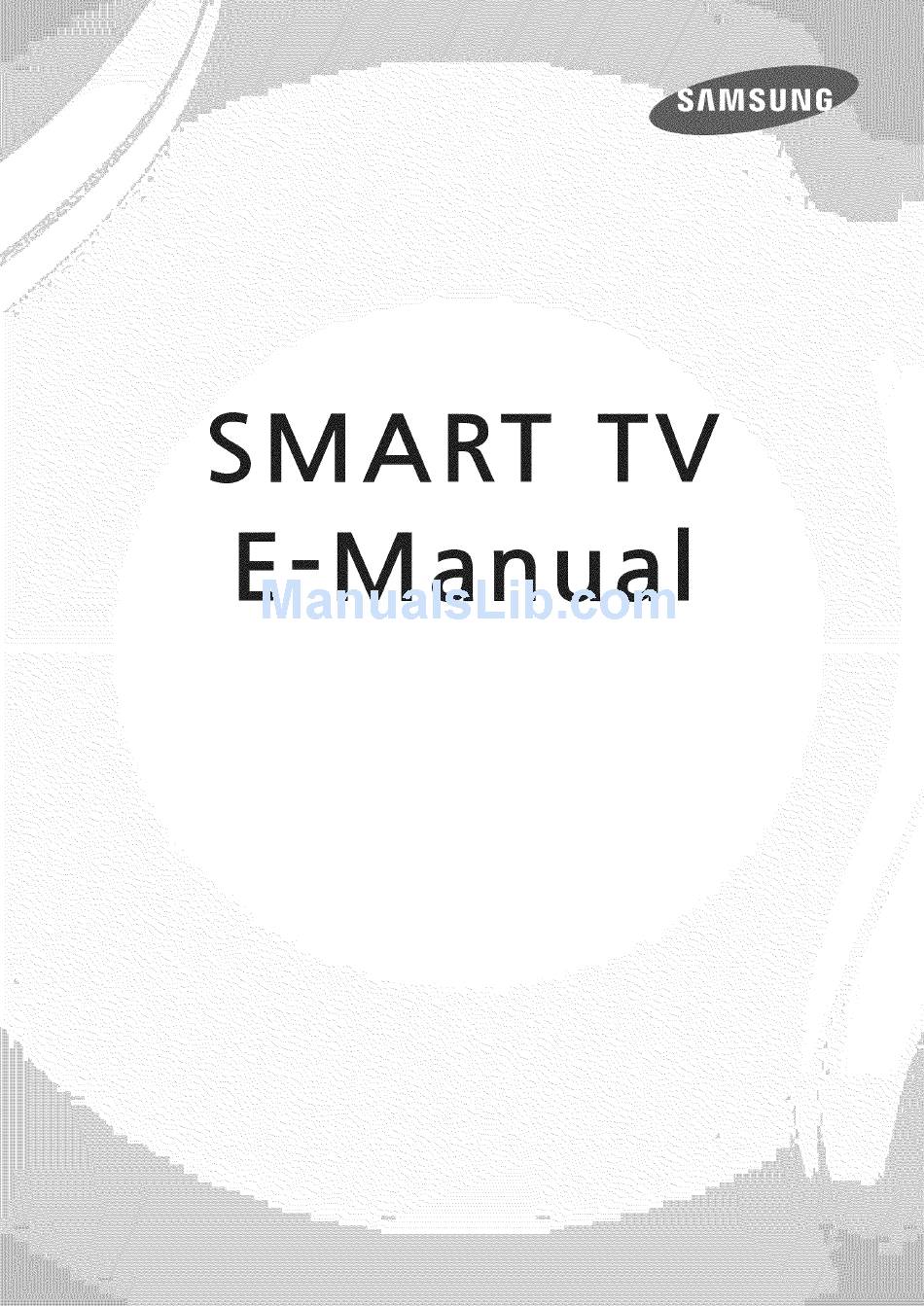

  • Page 1 E-Manual...
  • Page 2 e-Manual Guide ARC (Audio Return Channel) LED 7400, 7500, 8000, 8200, 8500 series models LED 9000 and UHD $9 series models Viewing the e-Manual Scrolling a Page Computer Connection Using Icons HDMI Connection rn ng to the Home Page LED 7400 7500, 8000, 8200 8500 series models Search ng the Endex LED 9000 aJ_dUI--_D $9 seres modes...
  • Page 3 Virtual Remote Control Wireless Network Setup Automatic Wireless Network Setup Changing the Virtual Remote Control Panel Manual Wireless Network Setup Change a position of the Virtual Remote Panel Using the WPS Button Adjusting the virtual remote panel size Failed Wireless Connection Using the Number Panel...
  • Page 4 Cancel the Schedule Recording function Face Recognition Edit Schedule List Operating Environment Face Registration Recorded Program Playback Face RegistratioJ_ from the Smart Hub account i _formation screen Changing the Viewing Mode Face Registrat oJ_ for the Smart Hub account usng face Filtered View...

  • Page 5: Reset

    107 Auto Social 107 Mar_uaJ Social Settings Sleep Timer 119 Checkng the/\pp catios On Timer 119 Col_secting a Service to a Samsung Account Off Timer Watching Videos Friend Profile Screen Protection and Maintenance Video Calling a Friend 109 Eco Solution...
  • Page 6 Photos, Videos & Music Apps Precautions Restrictions installing Standard Applications Supported File Formats USB Device Connection Launching an Application USB Devce Removal Samsung Apps Playing Media Files Stored on USB storage devices Searchiq9 fop Apps nstal iJ_9 Appl cations Clearing the Recent Playlist...
  • Page 7 Other Information Troubleshooting Picture Support Remote Management Sound 146 e-Manual 3D TV Self Diagnosis 147 Pct retest Antenna (Air/Cable) Connection 147 Sound 'r_'st 147 Voice & Motion Control Env ronment Check PC Connection 147 Signa nformation 147 Reset Networking Software Update 148 Update now Miscellaneous...
  • Page 8 (Troubleshooting)) from the screen menu. Alternatively, you can download a copy of the e-manual from Samsung's website and read it on your computer or print it out. Select a category from the left side of the screen. Select an item. The e-Manual...
  • Page 9 Searching Pages Press the _{_ button or select on the top of the screen to access the search screen. Enter a search phrase and select Done. Select an item from the search results list to navigate to the relevant page. C_osing the e-Manua_ To close the e-Manual,...
  • Page 10 Antenna Connection Refer to the diagram and connect the antenna cable to the antenna input connector. Make sure that you do not bend the cable. The number of connectors and their names and locations may vary depending on the model. Connect the correct antenna...
  • Page 11 Video Device Connections This TV has a wide range of connectors for video input from video devices such as Blu-ray players, DVD players, camcorders and gaming consoles. Below is a list of featured connectors shown descending order of picture quality. HDMI Component Connect...
  • Page 12 HDM[ Connection LED 7400, 7500, 8000, 8200, 8500 series models Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the TV's HDMI input connector. One of the following HDMI cable types is recommended: High-Speed HDMI Cable High-Speed...
  • Page 13 LED 9000 and UHD 89 series models Refer to the diagram and connect the HDMI cable to the video device's HDMI output connector and the One Connect HDMI input connector. One of the following HDMI cable types is recommended: High-Speed HDMI Cable High-Speed HDMI Cable with...
  • Page 14 Component Connection LED 7400, 7500 series models Refer to the diagram and connect the component cable to the TV's component input connectors the device's component output connectors. Make sure the cable colors match the connector colors.
  • Page 15 LED 8000_ 8200_ 8500 series models Refer to the diagram and connect the component video and audio cables to the component adapter (accessory) and to the TV's component input connectors. Make sure the cable colors match the connector colors.
  • Page 16 LED 9000 and UHD 89 series models Refer to the diagram and connect the component video and audio cables to the component adapter (accessory) and to the One Connect component input connectors. Make sure the cable colors match the connector colors.
  • Page 17 AV Connection LED 7400, 7500 series models Refer to the diagram and connect the AV cable to the TV's external input connectors and the device's AV output connectors. If you are using the TV's external input 1 connectors, connect the video cable to the Y connector. If the TV's external input 2 connectors are being used, use the enclosed...
  • Page 18 LED 8000_ 8200_ 8500 series models Connect a composite cable to the provided jack-to-RCA extension cable, so that the connectors the same color connect to each other. Plug the jack into the TV's composite video and audio input connector, and plug the three connectors on the other end into the external device's composite...
  • Page 19 LED 9000 and UHD 89 series models Refer to the diagram and connect the video and audio cables to the A/V adapter (included) and the adapter to One Connect's external input 1 or 2 connector.
  • Page 20 Audio Device Connections This TV has a wide range of connectors for audio input from devices such as amplifiers, Blu-ray players and DVD players. For better audio quality, it is a good idea to use an AV receiver. Digital Audio (Optical) Audio ARC (Audio...
  • Page 21 LED 7400_ 7500_ 8000_ 8200_ 8500 series models Refer to the diagram and connect the opticaJ cabJe to the TV's digitaJ audio output connector and the device's digital audio input connector. LED g000 and UHD 8g series models Refer to the diagram and connect the opticaJ cabJe to the One Connect digitaJ audio output...
  • Page 22 Audio Output Connection LED 7400, 7500, 8000, 8200, 8500 series models Refer to the diagram and connect the audio cable to the TV's audio output connector and the device's audio input connector. LED 9000 and UHD $9 series models Refer to the diagram and connect the audio cable to the One Connect audio output...
  • Page 23 ARC (Audio Return Channel) LED 7400, 7500, 8000, 8200, 8500 series models This TV supports 3D and ARC (Audio Return Channel) functions via an HDMI cable. ARC enables digital sound to be output using just an HDMI cable. However, ARC is only available through the HDMI (ARC) port and only when the TV is connected...
  • Page 24 LED 9000 and UHD 89 series models This TV supports 3D and ARC (Audio Return Channel) functions via an HDMI cable. ARC enables digital sound to be output using just an HDMI cable. However, ARC is only available through the HDMI (ARC) port and only when the One Connect is connected to an ARC-enabled...
  • Page 25 Computer Connection This TV supports the HDMI/DVI port for connect the computer. Not all computers are HDMI-enabled. In this case, use an HDMI-to-DVl cable to connect the computer to the TV. Refer to the "Display Resolution" for information on the resolution settings supported to the TV.
  • Page 26 LEI[) 9000 and U_ID 89 sedes mode_s Refer to the diagram and connect the HDMI cable to the One Connect HDMI input port and the computer's HDMI output port. HDMI-to-DVm Connection LED 7400_ 7500_ 8000_ 8200_ 8500 series mode_s Refer to the diagram and connect the HDMI-to-DVI cable to the TV's HDMI (DVI) port and the...
  • Page 27 LED 9000 and UHD 89 sedes mode_s Refer to the diagram and connect the HDMI-to-DVI cable to the One Connect HDMI (DVI) port and the computer's DVl output port. The HDMI-to-DVl connection is available through the HDMI (DVl) port only. DVI cannot carry audio.
  • Page 28 Smartphone Connection This TV supports MHL (Mobile High-definition Link) via an MHL cable. MHL makes it possible to enjoy video, image, and audio files from mobile devices on your TV. However, MHL is only available through the TV's HDMI (MHL) port and only when used in conjunction with an MHL-enabled mobile device.
  • Page 29 LED 9000 and UHD 89 series models Refer to the diagram and connect the MHL cable to One Connect's HDMI (MHL) connector and the mobile device's USB port. Switching Between Video Press the o_ _:s owa_ button to switch between devices connected to the TV.
  • Page 30 Programming Scan and index available channels. The dispIayed image may differ depending on the modet, Users can also remove channels from the index, restore removed channels and designate favorite channels for a more convenient TV viewing experience. Programming is not necessary if you are connected to a cable or satellite...
  • Page 31 Channel 2__ __2_:_ > Menu_ > Broadcasting > Edit: Channel The displayed image may differ depending on the modet. Remove channels from the index, restore removed channels, and rename analog channels. The Edit Channel screen icons indicate the following: : An analog channel : A favorite channel...
  • Page 32 Remove Channels Remove registered channels from the index. Removing channels appearing in the Recently Viewed MostNy Viewed list clears the channels from the list only and does not remove them from the index. From the screen, select the channels you wish to remove. Unselect channels by choosing...
  • Page 33 Favorite Channels ?_2_ > Menu@ > Broadcasting > Edit Favorites The displayed image may differ depending on the model, Users can designate frequently watched channels as favorites. The channels assigned as a favorite displayed with the _7 symbol on the Edit Channel and channel list screens.
  • Page 34 Rearrange the Favorite Channels List Rearrange the order of the channels in a Favorite Channels List. Press the [_ button to bring up the a favorite channels list and select the channel you wish to move. Press the [] button to rearrange the order of the selected channel.

  • Page 35: Software Update

    Network Configuration Connecting the TV to a network gives you access to online services such as the Smart Hub as well as software updates. Wired Network LEI[} 7400_ 7500_ 8000_ 8200_ 8500 series mode_s There are three ways to connect the TV to a Local Area Network (LAN).
  • Page 36 Wall-mounted LAN Outlet LED 9000 and U_ID 89 series mode_s There are three ways to connect the TV to a Local Area Network (LAN). External Modem (_ IP Router + @ External Modem ®...
  • Page 37 Wireless Network P_ecautions This TV supports the IEEE 802.11a/b/g/n communication protocols. Samsung recommends using IEEE 802.11n. Otherwise when you play video over a network connection, the video may not play smoothly. To use a wireless...
  • Page 38 WEE TKIP, AES If the wireless router has been set to Pure High-throughput (Greenfield) 802.11n mode and the Encryption Type to WEP or TKIP, Samsung SMART TVs will not support the connection in compliance with the new Wi-Fi certification specifications.
  • Page 39 Manua Wired Network Setup If the network requires a static IP address, enter the IP address, subnet mask, gateway and DNS values to connect to the network manually. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider...
  • Page 40 From the JP Settings screen, set JP Setting to Enter manually, enter JP Address, Subnet Mask, Gateway, and the DNS Server values, and then select OK. Use one of the two methods below to enter the numerical values. Use the on-screen QWERTY keypad.
  • Page 41 Connected to a Ioca_ network_ but not to the _ntenset Make sure that the Internet LAN cable is connected to the router's external LAN port. Check the DNS settings under JP Settings. If the problem persists, contact your Internet Service Provider.
  • Page 42 Manua Wireless Network Setup If the network requires a static IP address, enter the IP address, subnet mask, gateway and DNS values to connect to the network manually. To get the IP address, subnet mask, gateway and DNS values, contact your Internet Service Provider...
  • Page 43 Fromthe JPSettings screen,set JPSetting to Enter manually,enter JPAddress,SubnetMask, Gateway,andthe DNSServervalues,andthen selectOK. Useoneof the two methodsbelow to enterthe numericalvalues. Usethe on-screenQWERTY keypad. Pressthe _7_!_o _ andusethe keyson the numberpanel. The TV attemptsto connectto the networkagain usingthe specifiedsettings.A confirmation messageis then shown oncea connectionis established. S electOK to proceed. Using the WPS Button If the router has a WPS push button,...
  • Page 44 Fai ed Wireless Connection W irele s s n etwo rk co n n ectio n fai_ ed_ or n o w irele ss rout e r select ed, Go to Network Settings and select the correct router. U na b_e to co nnect to a w irele ss router Check the following: Check that the router is turned...
  • Page 45 Dynamic versus Static mPAddresses If the network requires a dynamic IP address, use an ADSL modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and touters that support DHCP automatically provide the IP address, subnet mask, gateway and DNS values the TV needs to access the Internet, they do not have to be entered manually.
  • Page 46 Mobile Device Connection The dispIayed image may differ depending on the modet. Users can either directly connect a mobile device to the TV with no need for a wireless router or connect them on the same network to play media files from the mobile device on the TV.
  • Page 47 Smart Touch Control The Smart Touch Control makes it easier and more convenient to use the TV. For example, you can use the remote control's built-in touch pad to move the focus and make selections as you would on a computer using a mouse.
  • Page 48 TV using a Smart Touch Control, you must first pair it to the TV via Bluetooth. However, the Smart Touch Control is only available for the paired Samsung Point the Smart Touch Control toward the IR sensor of the TV, and press TV button...
  • Page 49 Buttons and Descriptions...
  • Page 50 2_4o_,_ Run Voice Recognition. When appears "Speak now" on the screen, say a voice o L o_ command. Refer to "Voice Recognition" for more information. Turns the TV sound on/off. _ll_j Changes the channel Displays a virtual remote panel on the screen. The virtual remote panel consists...
  • Page 51 Using the touch Use the touch pad to perform various commands. Navigate to Tutorial (System > Device Manager > Smart Touch Control Settings > Tutorial) to view an on-screen guide to using the Smart Touch Control. Drag on the touch pad in the desired direction.
  • Page 52 Flicking Flick on the touch pad in the desired direction. This moves the focus or scrolls the screen based on the direction and speed of the flick. Pressing and Holding Press and hold the touch pad while watching TV to display Channel List on the screen.
  • Page 53 ScroIMing Up/Down Scroll up/down the line on either the left or right edge of the touch pad, This scrolls a webpage or a list up/down. This scrolling feature easily accommodates both right-handed and left-handed users. ScroIMing Left/Right Scroll left/right on the line at the top edge of the touch pad.
  • Page 54 Changing Channels by Entering Numbers While watching TV, press the protruding line on the left or right edge of the touch pad to bring up the numerical input window on the screen. Use your finger to enter the number for the channel you want to watch.
  • Page 55 Samsung Apps will launch if the selected application is not installed on the TV. Refer to the "Samsung Apps" for more information. Press the T.:_£{_sa£_,.o_ _ --_ button and then select History from the list displayed at the bottom of the screen.
  • Page 56 Virtual Remote Control Press the ,°_-_s_, o _ ooLcs_ button to display the virtual remote panel on the screen. The virtual remote panel consists of a number panel, a playback control panel, and a quick access panel. Use the touch to select numbers and buttons.
  • Page 57 Using the Number Panel Use the number panel to enter numbers on a keypad screen or webpage or to change the channel while watching TV. Changing the channel using the number pad leaves a record, allowing you to easily return to previous channels, 1 ~ 0 Gives direct access to channels.
  • Page 58 { /Using the Quick Access Panel Quickly access the _.A.AAII, I&_ll._ and o..¢4#_Rm_ , buttons. However, the availability of buttons may vary depending on the operating mode of the Smart Touch Control (with the TV only, as a universal remote etc.).
  • Page 59 TV using the TV's remote control. Users can also use the Anynet+ (HDMI-CEC) function to operate Samsung external devices with your TV's remote control without any additional setup. For more information, refer to "Anynet+ (HDMI- CEC)".
  • Page 60 LED 9000 and U_,,,,,,,,ID 89 series mode_s Plug the cable into the One Connect IR connector and then point the transmitter at the other end of the cable towards the external device's remote control receiver. However, there can' be any obstacles between the IR extension cable and the external...
  • Page 61 Onscreen An onscreen keypad appears when you need to enter text (entering the network password, logging into your Samsung account, etc.), allowing you to enter text using your remote control. Entering Text using the QWERTY Keypad Use the QWERTY keypad as you would a normal keyboard.
  • Page 62 SMART Interaction This TV features SMART Interaction, which recognizes a user's voice, actions, and face to enable TV operations without the use of a remote control. SMART Interaction makes it possible to configure settings and access features with ease. It takes approximately 15 seconds for voice and motion recognition...
  • Page 63 Voice Text Input requires the user's agreement with any third-party app's voice privacy policy and to provide Samsung with the user's MAC address and other private information. Voice Text Input lets users enter text using voice commands instead of a mouse, keyboard or remote control.
  • Page 64 (Suitable Ambient Noise Level: Less than 40 dB, _40 dB - the sound at library residential area in the daytime.) Visit the Samsung website for a list of standard voice commands. The voice recognition rate varies depending on the volume/tone,...
  • Page 65 Voice Recognition Tutoria 2_2_£_3 ) Menu@ ) Smart Features ) Voice Recognition ) Voice Recognition Tutoria_ This lets you familiarize yourself with the basics of using Voice Recognition. Run Voice Recognition Tutorial or activate Voice Recognition and then say "Guide me", Basic Voice Recognition Users can use the following...
  • Page 66 mnteractive Voice Recognition Commands Interactive Voice Recognition allows you to set up a Schedule Recording/Viewing, access VODs, search and launch applications, and execute various other commands without having to remember specific commands or keywords. Saying "Turn off the TV in 30 minutes," for example, instructs the TV to turn...
  • Page 67 Motion The dispIayed image may differ depending on the modet, Use Motion Control to change the channel, adjust the volume, move the pointer, and control other TV functions, Some applications may not support Motion Control, Operating Environment Make sure that the TV camera is extended before using motion controls.
  • Page 68 Motion Control Environment Test 2_2_£13 > Menu@ > Smart Features > Motion Control > Motion Control Environment Test Run this test before using Motion Control to ensure proper functionality. Run Motion Control Environment Test and select Start within 1.5 m and 4 m of the TV. if light reflects on the TV screen, user can be difficult...
  • Page 69 Using the Basic Motion ControMs The following basic motion control commands are available: Pointing Navigation: This action moves the cursor to the desired position. Run / Select: Make a fist to select an option or execute a command. Keeping your fist clenched like holding down a remote control...
  • Page 70 Motion Control Screen The Screen Composition while Viewing "[V Launching Motion Control while watching TV displays the following icons on the screen: Launch Smart Hub. Check the recommended program information and aerial times. Select a program from the list to view detailed information about that program.
  • Page 71 The Smart Hub Screen Composition Launching Motion Control while using Smart Hub displays the following icons on the screen: Adjust the volume. This icons are only available on the On _# screen. Turns the TV sound on/off. This icons are only available on the On TV screen.
  • Page 72 Retrieving Icons on the Screen When using Motion Control with Smart Hub, the icons will disappear automatically after two seconds of inactivity. To retrieve the icons, move the pointer to one of the three edges shown below (marked blue) and then hold it there for 1 second. The icons will reappear on the screen.
  • Page 73 In addition, keep your mouth closed but at the same time as neutral as possible, User's facial expression when logging into your Samsung account must be the same as the facial expression during the registration process,...
  • Page 74 Account > Edit Profile menu, and select Register Face. Read the instruction, select OK, and then enter the password for the Samsung account. Select Take Picture, and the user's face appears on the screen. Keep the face to be completely in the red dotted frame.
  • Page 75 TV has a record of the user's account and the user is logged Enter the password for the Samsung account. To make face recognition more accurate, scan the user's face again. Select Take Picture.
  • Page 76 Using Peripheral The displayed image may differ depending on the model. This TV can be controlled with a keyboard and a mouse instead of a remote control. These peripheral devices make it easier and more convenient to use the TV. Certain models do not support...
  • Page 77 Mouse Connection 2 _} > Menu@ > System > Device Manager > Mouse Settings Connect a mouse to the TV and right-click on the mouse to bring up the Go To screen. Users can then use the screen menu, Smart Hub, and other TV functions using the mouse as you would on a...
  • Page 78 TV Viewing The displayed image may differ depending on the model, Use this feature to view the program guide and program information more easily. However, these features are not available when viewing TV using a cable box or satellite receiver. Program [nfo Select the _J_£}_,XWbutton...
  • Page 79 Change Channels Select a channel from Guide to jump to that channel right away, Recording the Current Program Highlight a program currently being aired, and press the _ #! _£11 button on the virtual remote panel. The information screen appears. Select Record.
  • Page 80 Channel List 2_2_:] > Menu@ > Broadcasting > Channel List Launch Channel List while watching TV to change channels or to check what's on other digital channels. Press and hold the touch pad for 2 seconds. The Channel List screen appears. The Channel List screen icons indicate...
  • Page 81 Change Channels Select a channel to jump to it right away. To quickly scroll through the list, use the channel up/down buttons. The focus moves up and down the list in one page. Drag left on the touch pad and select Genre. Select a desired TV channel genre.
  • Page 82 Schedule Viewing The displayed image may differ depending on the model, Configure the TV to show a specific channel or program at a specific time and date. Before scheduling TV watching, make sure that the date and time is set properly under the System >...
  • Page 83 Analog Channel Schedume Viewing The Schedule Viewing function for programs on analog channels can be set up by specifying the time and date. Run Schedule Manager and then select Schedule. A popup menu will appear. Select Schedule Viewing to proceed. Specify that program's Antenna,...

  • Page 84: Hdmi

    To set up a Schedule Recording, you must first set the TV's clock. Set the Clock from System > Time > Clock. Recordings are DRM-protected and therefore cannot be played back on a computer or on a different TV. In addition, these files cannot be played back on your TV if its video circuit...
  • Page 85 Dedicated Recording Device Setup After connecting an external storage device, it must be configured as a dedicated Recorded TV device before the Schedule Recording and Timeshift features can be used. _nit;a_ S÷t_p Press the r_ button to launch Smart Hub. Select Recorded TV from the bottom of the On TV or Photos,...

  • Page 86: Digital Channel

    Program Recording The following options are available for program recording: Instant Recording Guide Program Info Specified Time and Date _nstant Recordin9 To record the program currently being aired, select the ® button on the virtual remote panel, and then set a desired recording duration.

  • Page 87: External

    Cancel the Schedume Recording function To cancel a Schedule Recording for a specific program, select the program from the Schedule Manager screen. A popup menu will appear. Select Delete to cancel. Edit Schedume List Select an entry from the Schedule Manager screen and then select Edit from the popup menu.
  • Page 88 Playlist Creation From the Options list at the top of the screen, select Play Selected. Select the programs you wish to play and then select Play. Users can create a playlist. However, if the list is in Folder view mode, you can only select recordings from within the same folder.
  • Page 89 Device Management Designate a device connected to the TV as a dedicated recording device, For more information, refer to "Dedicated Recording Device Management", Playing a Different P_"ogram Select the n,<,< / _ on-screen button, Select the Search on-screen button and then select Search Titbs, P_"ogram Scan...
  • Page 90 Addit[ona_ Recorded Prog_'sm P[layback Settings Repeat: Select the Repeat Mode on-screen button. This changes the repeat mode. Repeat One repeats the current program only, Repeat ANI repeats all programs contained in the folder. Picture Size: Select the Picture Size on-screen button and then select the picture size.
  • Page 91 Time Shift This TV offers a Time Shift function, a feature that lets you pause and rewind live TV as you would with a DVD. However, Time Shift is only available for digital channels. In addition, activating the Time Shift function disables the Broadcasting...
  • Page 92 The dispIayed image may differ depending on the modet, This TV is 3D-enabled. For the best 3D viewing experience, users must wear Samsung's 3D Active Glasses. The ideal viewing distance is three times or more the height of the screen.
  • Page 93 Carefullyreadthe healthand safety informationconcerning3D viewing beforeviewingthe TV in 3D. Referto the "3D Precautions", f or moreinformation. Thereareseveralrestrictionswhen using 3D TV: o Runningthe SmartHubautomaticallydeactivates3D viewing. P_P cannot be used. CertainPictureoptions are disabled. IRType Samsung3D Active Glassesand third-party 3D glassesare not supported. The left and right 3D imagesmay initially overlapwhenthe TV is turnedon.
