Summary of Contents for Peachtree Audio 220
-
Page 3: Important Safety Instructions
Important Safety InStructIonS Read these instructions – All the safety and operating instructions should be read before this product is operated. Keep these instructions – The safety and operating instructions should be retained for future reference. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. -
Page 4: Fcc Notice
IMPORTANT SAFETY INSTRU CAUTION The lighting flash with arrowh triangle, is intended to alert us “dangerous voltage” within th RISK OF ELECTRIC SHOCK be of sufficient magnitude to c DO NOT OPEN The exclamation point within CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT to alert the user to the pre REMOVE COVER (OR BACK). - Page 5 Introduction Back Panel Front Panel Troubleshooting Product Guarantee and Service Technical Specifications...

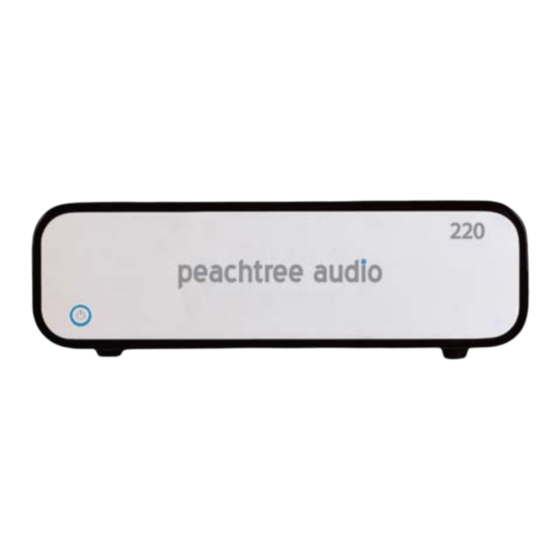

- Page 6 When you connect the Peachtree220 to your favorite preamplifier you’ll hear extraordinary detail and musicality. It is a perfect companion for the Peachtree Audio novaPre and it’s a terrific upgrade for our Nova and Decco customers looking for extra power. The Peachtree220 is a special product and one we’re proud to offer.
-
Page 7: Power On/Off Switch
7) ac power cord attachment & fuse: The three prong power cord is included in the Peachtree220 box. It is user replaceable after turning the Peachtree220 off. You may call your dealer or Peachtree Audio’s service department with any questions regarding fuse replacement. **WARNING** using the wrong value fuse may cause damage to the Peachtree220. - Page 8 Check to be sure that both the power switch on the back The Peachtree220 panel and the standby switch on the front panel are on. The will not turn on front panel light should be blue. It is green when in standby. Be sure your AC plug is properly connected to an active AC outlet.
- Page 9 The Peachtree220 has a two year Parts and Labor guarantee from the time of purchase. Peachtree Audio can take no responsibility for defects arising from accident, misuse, abuse, wear and tear, neglect or through unauthorized adjustment and/or repair. The warranty does not cover shipping costs. Visit www.peachtreeaudio.com for a copy of the complete warranty.
- Page 10 • Power Output: 8Ω@ 0.5% THD+N 220W • Power Output: 4Ω@ 0.5% THD+N 400W • Transient Intermodulation Distortion (TIM): 0.006% • Power Efficiency: 4Ω 400W 80% • Power Efficiency: 8Ω 250W 86% • Balanced Input Impedance: 100K • Unbalanced Input Impedance: 50K •...
