GarrettCom Magnum 10Mb/s Installation And User Manual

10mb/s media converters
Hide thumbs
Table of Contents

Advertisement

Quick Links

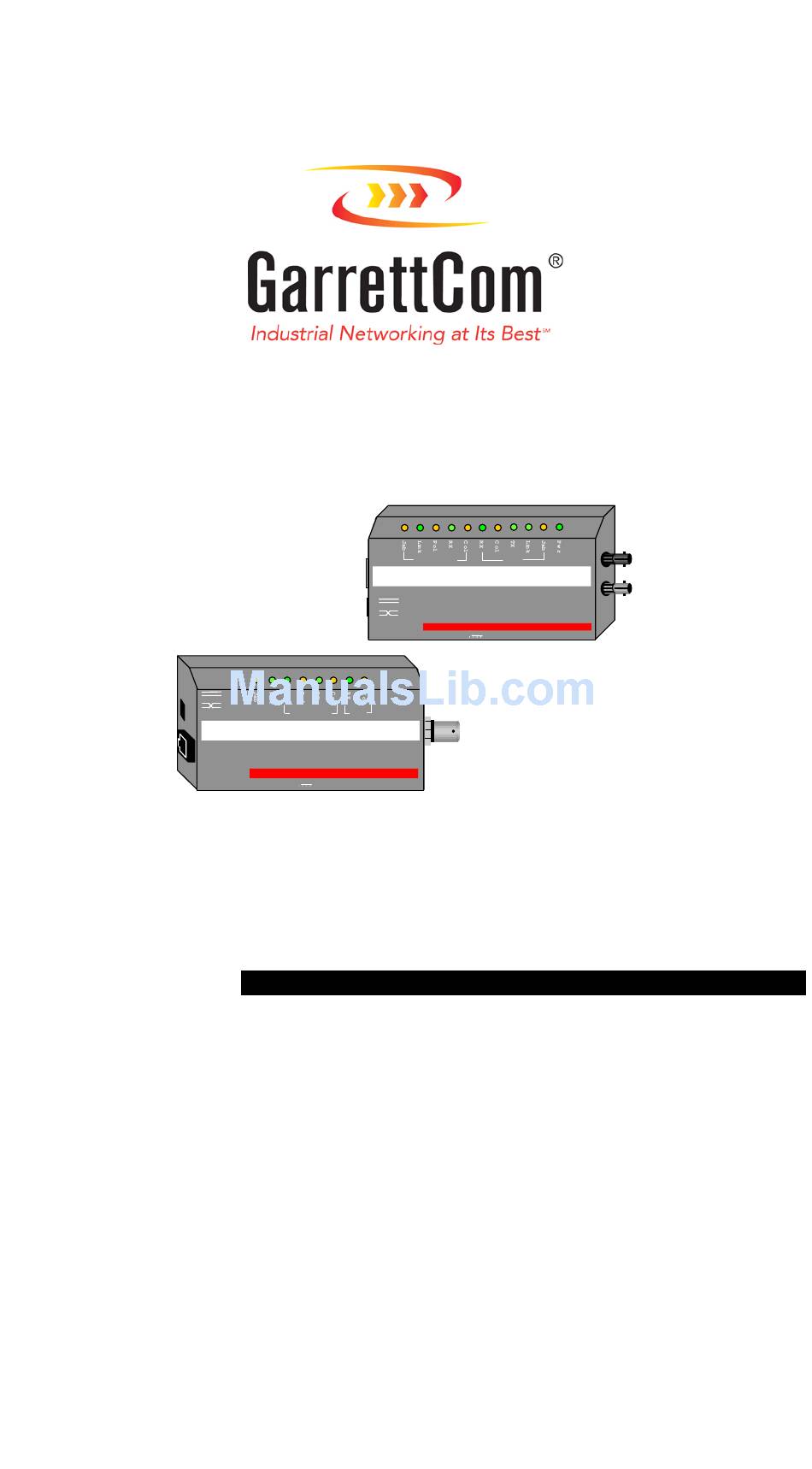

Magnum 10Mb/s Media Converters
TW I STED PA I R
FI BER
M agnum TF 15 M edi a Conver t er
U P LI N K
GARRETT
12 VD C
1 A M P
U P LI N K
TW I STED PA I R
C O A X
M agnum TB 15 M edi a Conver t er
GARRETT
12 VD C
1 A M P
Half- and full-duplex fiber models
Installation and User Guide
GARRETT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum 10Mb/s and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GarrettCom Magnum 10Mb/s

Summary of Contents for GarrettCom Magnum 10Mb/s

  • Page 1 Magnum 10Mb/s Media Converters TW I STED PA I R FI BER M agnum TF 15 M edi a Conver t er U P LI N K GARRETT 12 VD C 1 A M P U P LI N K...
  • Page 2 Magnum 10Mb Media Converters Installation and User Guide (07/98) Magnum 10Mb/s Media Converters Installation and User Guide Part#: 84-00001 (R07/98) Trademarks UL is a registered trademark of Underwriters Laboratories Ethernet is a trademark of Xerox Corporation Velcro is a trademark of Velcro U.S.A. GARRETT...
  • Page 3 Magnum 10Mb Media Converters Installation and User Guide (07/98) Important: Magnum Media Converters contain no user serviceable parts. Attempted service by unauthorized personnel shall render any and all warranties null and void. If problems are experienced with a Magnum Media Converter, consult Section 5, Troubleshooting, of this User Guide.
  • Page 4 Magnum 10Mb Media Converters Installation and User Guide (07/98) Please use the mailing address, email, phone and fax numbers listed below: GarrettCom, Inc. 47823 Westinghouse Drive Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 email: support@garrettcom.com GARRETT...

  • Page 5: Fcc Statement

    Magnum 10Mb Media Converters Installation and User Guide (07/98) FCC STATEMENT FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio frequency energy and if not installed and used properly, that is, in strict accordance with the communication. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of Part 15 of FCC rules, which are designed to provide reasonable protection against such interference when the equipment is operated in a commercial environment.

  • Page 6: Table Of Contents

    Magnum 10Mb Media Converters TABLE OF CONTENTS 1.0 SPECIFICATIONS ... 1 1.1. Technical Specifications ... 1 2.0 INTRODUCTION ... 7 2.1 Inspecting the Package and Product ... 7 2.2 Product Description ***... 9 2.3 Features and Benefits *** ... 16 2.4 Applications, TB15, BF15, and TP/fiber Link Pass-through *** ...
  • Page 7 Magnum 10Mb Media Converters TABLE OF CONTENTS (CONTINUED) 4.0 OPERATION ... 32 4.1 Power Requirements, Power Supply Types ... 32 4.2 Front Panel LEDs - Magnum TB15... 33 4.3 Front Panel LEDs - Magnum BF15…………………………………………34 4.4 Front Panel LEDs - Magnum TF15, TF15s, TF15SC, TF15-hdx *** …35 4.5 Up-Link (Cross-over) Switch...

  • Page 8: Specifications

    Magnum 10Mb Media Converters SPECIFICATIONS 1.1. Technical Specs - fiber full/half Models: TF15, TF15s, TF15SC, TF15LP and, standard “Collision-indicating” models: TB15, BF15, TF15-hdx Performance: Data Rate: 10 Mbps (IEEE 802.3) Network Standards: Ethernet V1.0/2.0 IEEE 802.3: 10BASE2, 10BASE-T, FOIRL, 10BASE-FL (Magnum Media Converters are physical layer standard Ethernet products, and operate independently of all software.) Number of Media Converters in series:...
  • Page 9 Magnum 10Mb Media Converters Maximum Standard Ethernet Segment Lengths: 10BASE-T (unshielded twisted pair): 10BASE2 ThinNet (BNC): FOIRL Fiber optic: 10BASE-FL Fiber optic : 10BASE-FL Single Mode Fiber optic: (for single-mode, full-duplex operation for distances over approx. 4Km.) Note: Magnum Media Converters DO NOT support full length Ethernet segments.
  • Page 10 Magnum 10Mb Media Converters Power Supply (External): Power Input: 95 - 125 vac at 60 Hz for U.S. and Canadian models, 200 - 250 vac at 50 Hz for international models which have IEC power cable connector. Power Consumption: 6 watts max. for the Media Converter Connectors: RJ-45 Port: Modular 8-Pin female, with “cross-over”...
  • Page 11 2.5 in x 3.9 in x 0.75 in (6.35 cm x 9.90 cm x 1.9 cm) Power Supply: 2.0 in x 2.0 in x 1.5 in (5.1 cm x 5.1 cm x 3.8 cm) Weight: All Models: 6.9 oz. (197g); power supply 10 oz (285g)
  • Page 12 Magnum 10Mb Media Converters Media Converter LED Indicators: TB15 BF15 TF15,TF15s, SC, LP,-hdx unit unit Link Fiber TP, BNC BNC, Fiber n.a. BNC, Fiber n.a. COL* TP, BNC BNC, Fiber JAB* unit NOTE: *COL and JAB LEDs (when present) are disabled for “FULL/HALF DUPLEX” units, which are transparent to the Collision and Jabber conditions and do not indicate them.
  • Page 13 Magnum 10Mb Media Converters Agency Approvals: 115v 60 Hz Power Supply is UL Listed (UL 1310), CSA Certified 230v 50 Hz Power Supply is same, also TUV and GS approved Emissions: Meets FCC Part 15 Class A, cUL Warranty: Three years, return to factory...

  • Page 14: Introduction

    Magnum 10Mb Media Converters INTRODUCTION This section describes the TF15, TF15s, TF15SC, TF15LP, TF15-hdx, TB15 and BF15 including appearance, features and typical applications. Inspecting the Package and Product Examine the shipping container for obvious damage prior to installing this product; notify the carrier of any damage which you believe occurred during shipment or delivery.
  • Page 15 Magnum 10Mb Media Converters This package should contain: Magnum Media Converter Unit External Power Supply, either 115 vac 60 Hz or 230 vac 50 Hz Velcro Tape section, approximately 3 inches in length User Guide Remove the Magnum Media Converter from the shipping container. Be sure to keep the shipping container should you need to ship the unit at a later date.

  • Page 16: Product Description

    Magnum 10Mb Media Converters Installation and User Guide (07/98) Product Description Magnum 10Mb Media Converters offer a compact, cost-effective way to adapt a pre-existing Ethernet cabling configuration as network requirements change. They offer a graceful way to convert and transmit data among twisted pair, thin coaxial and fiber network cabling environments.
  • Page 17 Converter. Because of their compact size, Magnum Media Converters can be Velcro®- mounted on an office wall or the side of a desk or cabinet. The external power supply plugs into a nearby AC wall socket or power strip. Each converter features a full set of LEDs that convey essential diagnostic and status information.
  • Page 18 Magnum 10Mb Media Converters Magnum Media Converters are specifically designed to convert data signaling to allow transmission between two different Ethernet cabling types, allowing migration to a new media type while preserving segments of the pre-existing wiring structure. All of the Magnum Media Converters comply with the IEEE 802.3 10BASE-T specification for 10 Mb/sec traffic via shielded (STP) or unshielded twisted pair (UTP) segments.
  • Page 19 Magnum 10Mb Media Converters The TB15 is equipped with one BNC and one RJ-45 port. The BNC connector complies with IEEE 802.3 10BASE2 specifications for ThinNet segments. Twisted Pair (10BASE-T) The TB15 integrates 10BASE-T and 10BASE2 Ethernet networks. GARRETT Installation and User Guide (07/98) U P LIN K TWISTED PAIR COAX...
  • Page 20 Magnum 10Mb Media Converters Installation and User Guide (07/98) The Magnum BF15 is equipped with one BNC and one Fiber-ST connector for connection to IEEE FOIRL or 10BASE-FL compliant networks. Fiber Optic - ST Connector ThinNet-BNC (10BASE-FL and FOIRL) (10BASE-2) TWISTED PAIR FIBER Magnum BF 15 Media Converter...
  • Page 21 Magnum 10Mb Media Converters Installation and User Guide (07/98) The Magnum TF15 (multi-mode ST), TF15s (single-mode ST), TF15LP (Link Pass-through) and TF15-hdx (Half-duplex multi-mode ST) are equipped with one fiber- ST and one twisted pair RJ-45 connector for connection to IEEE FOIRL or 10BASE-FL compliant networks.
  • Page 22 Magnum 10Mb Media Converters Installation and User Guide (07/98) The Magnum TF15SC* has one fiber-SC (multi-mode) and one RJ-45 connector. Fiber Optic - SC Connector Twisted Pair (10BASE-FL and FOIRL) (10BASE-T) TWISTED PAIR FIBER Magnum TF 15 Media Converter UP LINK GARRETT 12 VDC 1 AMP...

  • Page 23: Features And Benefits

    Magnum 10Mb Media Converters Features and Benefits ! ! ! ! Reduces Network Costs Magnum Media Converters offer the ideal solution to quickly and inexpensively connect Twisted Pair with Fiber or ThinNet media within an expanding Ethernet network where full repeaters are not required. ! ! ! ! No added Repeater Hop Count Media Converters do not add signal timing delays associated with full...
  • Page 24 Magnum 10Mb Media Converters ! ! ! ! Small, Compact, Lightweight Design Featuring a compact and lightweight metal case with an external power supply, Magnum Media Converters can be conveniently installed in minimal space on table-tops or wall-mounted. ! ! ! ! Full Complement of LEDs.
  • Page 25 Magnum 10Mb Media Converters Applications The primary function of a Magnum Media Converter is to permit two different media types to coexist inexpensively within the same network by allowing data to be transmitted and received between different media types. Magnum Media Converters are typically used where new 10BASE-T networking equipment is being installed and connecting to new / existing fiber or BNC Ethernet cabling is required.
  • Page 26 Magnum 10Mb Media Converters Installation and User Guide (07/98) Existing ThinNet (10BASE2) backbone 10BASE-T wiring segment Magnum TB15 provides connectivity for 10BASE-T devices though an existing BNC network tap. GARRETT...
  • Page 27 Magnum 10Mb Media Converters 10BASE-T wiring segment Magnum TF15 provides connectivity between a fiber network and 10BASE-T network devices. GARRETT Installation and User Guide (07/98) Central network with 10Mb/s fiber backbone Link Link FIBER TWISTED PAIR 15 Media Converter Magnum TF UP LINK GARRETT 12 VDC...
  • Page 28 Magnum 10Mb Media Converters Magnum Media Converters have an external power supply, enabling them to be used to convert signals among media that does not have a power source as part of the cabling system, such as twisted pair, BNC and Fiber. (AUI ports can supply power).

  • Page 29: Installation

    Magnum 10Mb Media Converters INSTALLATION This section describes the installation of the Magnum Media Converters, including location, segment distance calculation and media connection. Locating the Media Converter Unit The compact and lightweight design of the Magnum Media Converter allows it to be easily installed in almost any location.
  • Page 30 Magnum 10Mb Media Converters Installation and User Guide (07/98) or power strip, and where convection cooling is not inhibited. For rack-mounting of media converters, the Magnum MC-TRAY is available. GARRETT...

  • Page 31: Installation

    Magnum 10Mb Media Converters Important Note: Special consideration must be given to maximum segment lengths on each side of the Magnum Media Converter. It is recommended that IEEE 802.3 specifications for overall maximum segment distances be adhered to in order to maintain optimum network performance. (See Technical Specs, Maximum Standard Ethernet Segment Distances, Section 1.1 of this manual.) Calculating Overall Segment Distance...
  • Page 32 Magnum 10Mb Media Converters measured as a percentage of the maximum allowable standard media distance for the given media type. The percentages, when added together, must not exceed 100%. Media Distance * Formula for Magnum Media Converters: Where X = The segment distance on one side of the Magnum Media Converter divided by the Standard Maximum Media Distance for that media type, x 100%...
  • Page 33 Magnum 10Mb Media Converters Installation and User Guide (07/98) domain limits, and should be operated at either full-duplex or with light traffic. GARRETT...
  • Page 34 Magnum 10Mb Media Converters Installation and User Guide (07/98) A Distance Calculation Example: Segment X Segment Y 72m (216 ft) 55m (165 ft) UP LINK TWISTED PAIR COAX Magnum TB 15 Media Converter GARRETT Twisted Pair ThinNet-BNC 12 VDC 1 AMP (10BASE-T) (10BASE-2) Connectivity between ThinNet and TP Ethernet Media.
  • Page 35 Magnum 10Mb Media Converters distance for UTP 10BASE-T media (100 m) [55/100 x 100% = 55%]. The total of the two percentages (39% + 55%) is 94%, which is allowable. Note 1: Where more than one media converter is used in one segment run, the percentages for all of the cabling lengths in the run must be added together and must not exceed 100%.

  • Page 36: Connecting Ethernet Media

    Magnum 10Mb Media Converters Connecting Ethernet Media Connecting Ethernet media to the Magnum Media Converter is very simple and straightforward. Using a properly terminated media segment, simply attach the cable end to the appropriate connector. See Sections 4.2 and 4.3 for a description of the LEDs of the media converter models.
  • Page 37 Magnum 10Mb Media Converters Using standard 10BASE-T media, insert either end of the cable with an RJ-45 plug into the RJ-45 connector of the Magnum Media Converter. Connect the other end of the cable to the corresponding device. Use the LINK LED (non-Link pass-through models) to ensure proper connectivity by noting that the LED will be illuminated when the units are powered and proper connections established.

  • Page 38: Connecting Thinnet 10Base2 (Bnc)

    Magnum 10Mb Media Converters 3.3.2 Connecting ThinNet 10BASE2 Connect the ThinNet coax cable to the BNC connector on the TB15 Media Converter in the same manner as is done for any standard BNC connection. Be sure that the BNC segment is properly terminated using a standard “T” connector and terminator. 3.3.3 Connecting Fiber Optic multi-mode, single mode The following procedure applies to 10BASE-FL multi-mode and single mode applications using the TF15, TF15s, TF15SC, TF15LP and TF15-hdx Media Converters.
  • Page 39 Magnum 10Mb Media Converters Fiber Cable Type cable diameter * Multi-mode fiber 50/125, 62.5/125, 80/125, 100/140 ** Single-mode fiber 2/15 - 8/60 * xx/yy are the diameters of the core and the core plus cladding respectively ** The values shown are typical values Procedure for connecting multi-mode and single-mode fiber cables: Before connecting the fiber cable, remove the protective dust caps from the tips of the connectors on the media converter.
  • Page 40 Magnum 10Mb Media Converters Note: One strand of the duplex fiber optic cable is coded using color bands at regular intervals; you must use the color-coded strand on the associated ports at each end of the fiber optic segment. Connect the Transmit (TX) port (light colored post) on the Magnum Media Converter to the Receive (RX) port of the remote device.

  • Page 41: Operation

    Magnum Media Converters require 6 watts of power and are designed to be used with an external power supply. The external power supply unit supplied is one of two types; one version (U.S. and Canadian models) for AC input power of 115 vac 60 Hz, and one international version for 230 vac 50 Hz.

  • Page 42: Front Panel Leds - Magnum Tb15

    Magnum 10Mb Media Converters Front Panel LEDs - - Magnum TB15 Description Illuminates GREEN to indicate the unit is receiving DC power. LINK (TP) Illuminates GREEN, to indicate proper connectivity on the 10BASE-T network segment. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device.

  • Page 43: Front Panel Leds - Magnum Bf15

    Magnum 10Mb Media Converters Front Panel LEDs - - Magnum BF15 Description Illuminates GREEN to indicate the unit is receiving DC power. LINK (TP) Illuminates GREEN, to indicate proper connectivity on the 10BASE-T network segment. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device.
  • Page 44 Magnum 10Mb Media Converters Front Panel LEDs - Magnum TF15, TF15s, TF15SC, TP15LP, TF15-hdx Description Illuminates GREEN to indicate the unit is receiving DC power. LINK (per port) Illuminates to indicate proper connectivity on each cable segment (non-Link Pass-through models). LINK will turn off in the event connectivity is lost between the ends of each cable segment or a loss of power occurs in the unit or in the attached device.

  • Page 45: Up-Link (Cross-Over) Switch

    Magnum 10Mb Media Converters Up-Link (Cross-over) Switch Magnum Media Converters are equipped with an up-link slide switch on the RJ-45 port to accommodate repeater-to-converter and switch-to-converter connections without a special cross-over cable. 4.5.1 Up-Link (Cross-over) Switch When set to the UP position (=), the Magnum Media Converter is wired for normal twisted-pair connection to a user node device.

  • Page 46: Troubleshooting

    Magnum 10Mb Media Converters TROUBLESHOOTING All Magnum Ethernet products are designed to provide reliability and consistently high performance in all network environments. The installation of Magnum Media Converters is a simple procedure (see Section 3.0, INSTALLATION); operation is very simple and is described in Section 4.0, OPERATION. Should problems develop during installation or operation, this section should help to locate, identify and correct such problems.

  • Page 47: Before Calling For Assistance

    (About 90% of network downtime can be attributed to wiring and connector problems.) Make sure that the external DC power supply is properly attached to the unit, that it is of the proper type, and that it is plugged into a functioning electrical outlet.
  • Page 48 Magnum 10Mb Media Converters If the problem is isolated to a network device other than the Magnum Media Converter, it is recommended that the problem device be replaced with a known good device. Verify whether or not the problem is corrected. If not, go to Step 5 below. If the problem is corrected, the Magnum Media Converter and its associated cables are functioning properly.

  • Page 49: When Calling For Assistance

    Magnum 10Mb Media Converters When Calling for Assistance Please be prepared to provide the following information. A complete description of the problem, including the following points: a. The nature and duration of the problem; b. Situations when the problem occurs; c.

  • Page 50: Return Material Authorization (Rma) Procedure

    (RMA) number. To obtain an RMA number, contact Garrett Communications Customer Support at (510) 438-9071 (office hours: 8AM - 5PM Pacific Standard Time) or send email to support@garrettcom.com. Please have the following information available when calling: Name and phone number of your contact person.
  • Page 51 Magnum 10Mb Media Converters Garrett Communications will carefully test and evaluate all returned products, will repair products that are under warranty at no charge, and will return the warranty- repaired units to the sender with shipping charges prepaid (see Warranty Information, Appendix A, for complete details).

  • Page 52: Shipping And Packaging Information

    Magnum 10Mb Media Converters Shipping and Packaging Information Should you need to ship the unit back to Garrett Communications, please follow these instructions: 1. Package the unit carefully. It is recommended that you use the original container if available. Units should be wrapped in a "bubble-wrap" plastic sheet or bag for shipping protection.
  • Page 53 2. Clearly mark the Return Material Authorization (RMA) number on the outside of the shipping container. 3. Garrett Communications is not responsible for your return shipping charges. 4. Ship the package to: GARRETT Installation and User Guide (07/98) GarrettCom, Inc. 47823 Westinghouse Drive Fremont, CA 94539 Attn.: Customer Service...
