OVERVIEW

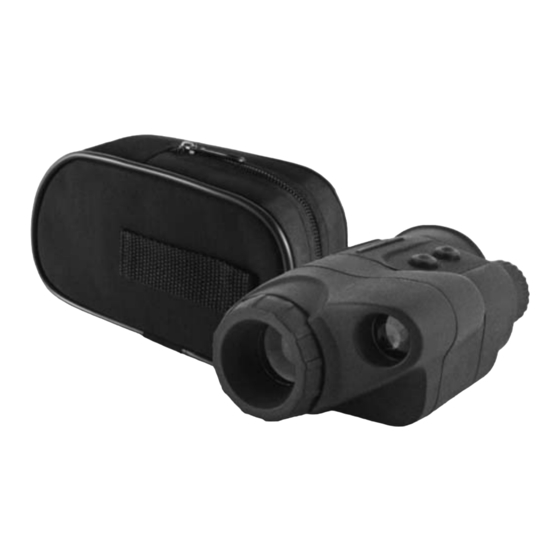

The new Patrol 2x24 (gen.1) night vision scope has an original design that is ideally complemented with

improved optical parameters. The most prominent features of the new Patrol 2x24 are compact and

durable rubber-armored housing, two long-life AAA batteries to ensure up to 72 hours of independent

operation and an eyepiece with a handy rubber eyecup and a Diopter adjustment lever. This monocular

is intended primarily for prolonged use in motion. Additionally, the Patrol 2x24's wide-angle field of

view makes observing dynamic objects easy and exciting.

Your Patrol 2x24 scope is ideal for a variety of professional and recreational uses including the

following:

• Wild life observation

• Astronomy

• Boating

• Search and rescue

• And many other activities...

Your Patrol 2x24 night vision scope was designed to provide many years of reliable service. To ensure

that you get the most enjoyment out of your Patrol 2x24 always obey the following Warnings and

Precautions:

Table of Contents

Do you have a question about the 24081 and is the answer not in the manual?

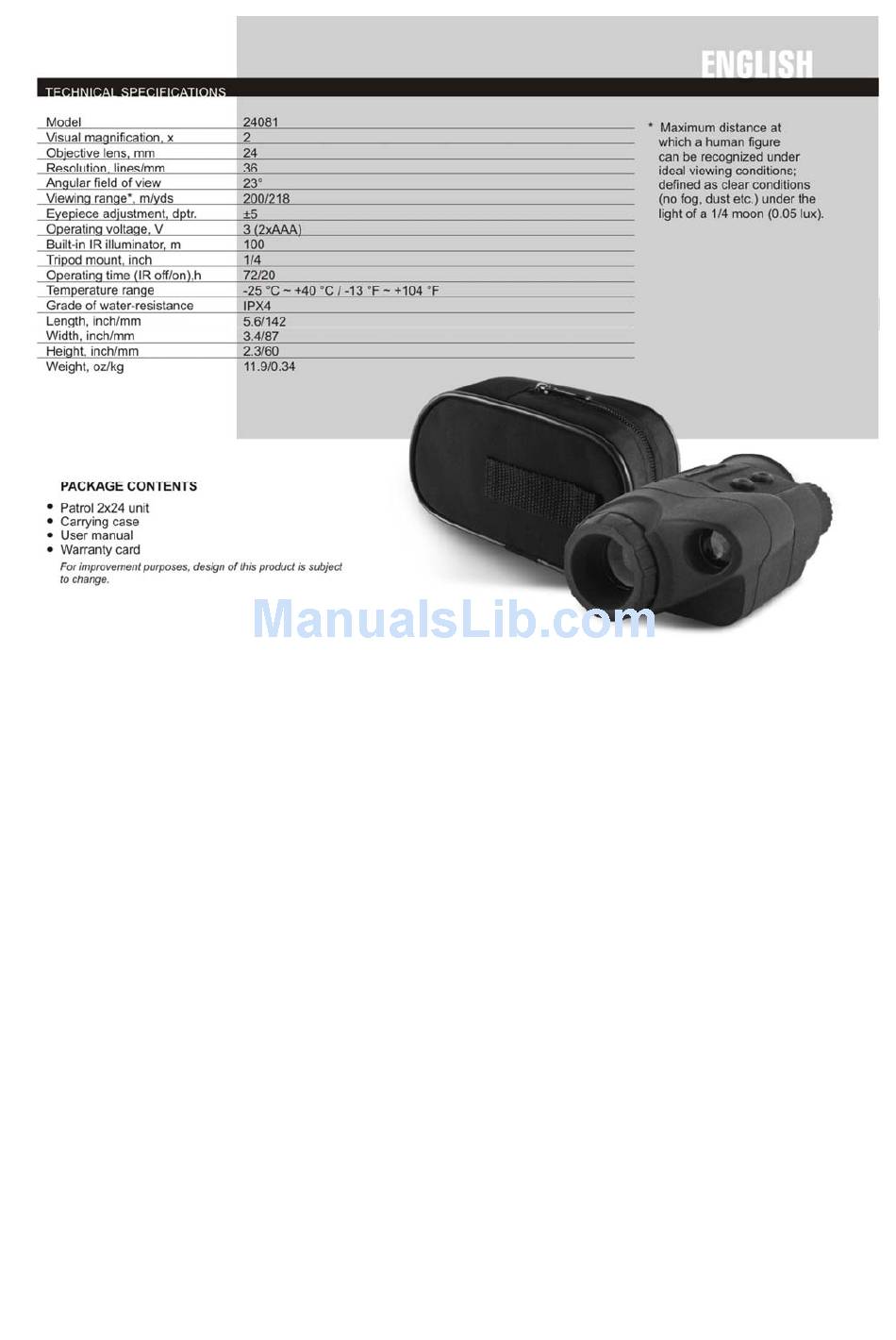

Page 1 OVERVIEW The new Patrol 2x24 (gen.1) night vision scope has an original design that is ideally complemented with improved optical parameters. The most prominent features of the new Patrol 2x24 are compact and durable rubber-armored housing, two long-life AAA batteries to ensure up to 72 hours of independent operation and an eyepiece with a handy rubber eyecup and a Diopter adjustment lever.
Page 2: Battery Installation
• Do not point the unit towards any light source greater than 1 lux (such as car headlights) for an extended period of time. Long-term exposure to bright lights can damage the unit. Any such damage may void your warranty. •...
Page 3: Troubleshooting
the eyepiece (4) and rotating the objective lens (5). After the adjustment, do not rotate the eyepiece irrespective of the distance and other conditions. • Direct your NV 2x24 device at the subject to be viewed and adjust the final focus by rotating the objective lens (5) focusing ring until the image quality is optimal.
Page 4 clean the contacts. Make sure that the external contact lugs are not broken. If necessary, replace the batteries as they may be depleted. Also, be sure that the power is in the “ON” position when trying to turn on the scope. Distinct black dots appear on the screen...
