Summary of Contents for Dynaudio Esotar / Esotec

  • Page 1 Esotar / Esotec...
  • Page 2 Dynaudio determined that the only way to properly address this market was to develop a range of drivers with parameters specifically designed for and tailored to the car audio environment and its challenging acoustics.
  • Page 3 Dynaudio has built its reputation of producing some of the best drivers available with its Esotar Home Systems models, and has now incorporated its most refined technological platform into a reference automotive speaker range worthy of the Esotar name.

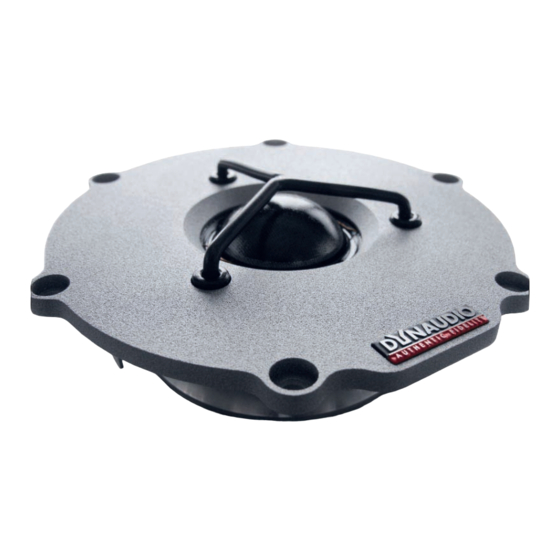

  • Page 4 The best material for a tweeter is experience: Dynaudio has earned a reputation as a manufacturer of the finest high frequency drivers available with its venerable Esotar tweeters, and the company has incorporated its most refined technologies into the new Esotar²...
  • Page 5 The Dynaudio Esotar² automotive loudspeaker series represent the high- est level of automotive music reproduction – not just for Dynaudio but for the entire arena of mobile audio. The compact Dynaudio Esotar² 430...
  • Page 6 The Esotar² 650 is a 17 cm (6.5") diameter mid/bass driver that is built on a rigid, die-cast solid aluminum frame and features Dynaudio’s characteristic MSP (Magnesium Silicate Polymer) diaphragm. The MSP cone is a proprietary Dynaudio innovation, made in-house and featuring precisely-shaped, geometrically-optimized form to enable the smooth, optimized sound dispersion.
  • Page 7 75 mm diameter aluminum voice coil and MSP cone diaphragm. Dynaudio’s exclusive MSP material provides the ideal combination of rigidity, light weight and excellent inner damping to naturally reproduce the lowest frequencies without distortion. The Esotar² 1200 utilizes an ultra-rigid die cast frame basket to ensure the most anti-resonant founda- tion of a powerful, accurate and controlled bass response.
  • Page 8 Each features impedance correction while offering selectable level adjustments for the tweeter. The Dynaudio Esotar² crossovers facilitate a wide range of systems and applications, and are optimized for perfect phase response and time coherency in any vehicle. Only the highest quality components selected solely on the basis of their sonic properties are utilized.
  • Page 9 Crossover Esotar EX3-650 (HF/LF) The Dynaudio Esotar² EX3-650 is an audiophile quality three-way passive crossover designed for the integration of a reference automotive three-way system comprised of an Esotar² 110 tweeter, Esotar² 430 midrange, and Esotar² 650 mid/woofer. The EX3-650 is a two-box per channel crossover solution that allows for bi-amping.
  • Page 10 Music the way it was intended to be heard. Dynaudio has become one of the world’s leading high-end audio companies by staying true to the company vision of natural, un- compromised sound quality.
  • Page 11 The new Esotec MD 102 tweeter is a soft-dome design as characteristic of Dynaudio. The fine soft dome features a special coating to facilitate an extended high frequency response free of distortion. The compact, shallow depth MD 102 tweeter features a 28 mm (1.1 inch) diameter surface area that...
  • Page 12 75mm (3-inch) diameter soft dome midrange design intended for high performance three- and four-way audio systems. As typical of all Dynaudio tweeters and soft-dome midrange units, the MD 142 features a large diameter aluminum voice coil with a centered magnet housed in a relatively compact and shallow enclosure.
  • Page 13 15 cm (5.75 inch) diameter driver with a 75 mm (3 inch) diameter voice coil. As is the case with the full range of Dynaudio woofers, the cone diaphragm is composed of a proprietary MSP (magnesium silicate polymer) material developed by Dynaudio –...
  • Page 14 The result is un-compromised, direct music enjoyment. All of the Esotec MW (mid/woofer) model variants employ Dynaudio’s cus- tomary oversized aluminium voice coil, which feature an uncharacteristically large diameter coil wound on a strong and temperature stable former to drive the geometrically optimized rigid MSP cone diaphragm.
  • Page 15 For more dynamic power delivery in the bass region, the 15, 17 and 20 cm diameter Esotec mid/bass drivers employ Dynaudio’s traditional double- magnet motor system while featuring new, upgraded high-density ultra-com- pressed Ferrite magnets.
  • Page 16 The use of a large diameter voice coil also allows for the flat Dynaudio MSP cone membrane geometry, which results in minimal phase lag at crossover to midrange driver.
  • Page 17 This impressive driver is ideally suited for woofer or subwoofer applications in any high quality car audio system. To achieve the lowest possible moving mass, as is the case with all Dynaudio voice coil designs, the unique oversized voice coils are made of pure aluminum while the voice coil wire is itself wound in Dynaudio’s proprietary technique.
  • Page 18 With the vast experience gained in developing the advanced Dynaudio premium factory sound systems offered to the automotive industry, fine- tuning the new Esotec crossovers brought forth a substantial improvement in sound quality.
  • Page 19 The tutelary metal-grid is uncritical in acoustical behaviour and can be mounted free of resonances with usual screws. With their unobtrusive surfacefinish the Dynaudio grilles can be integrated inconspicuously in almost every interior to guide every attention to the essential – just to the music!
  • Page 20 Esotec loudspeaker models, allowing the full potential of the Dynaudio system to be realized – something essential for a perfectly harmonious and comprehensive system performance.
  • Page 21 Mated to the advanced technology Esotec car series loudspeakers, the net result is a system that delivers authentic Dynaudio sound quality with a neutral tonal balance, incredible imaging and sound-staging capabilities, unsurpassed dynamics and complete transparency.
  • Page 22 Volkswagen Volkswagen searched for a real audio specialist – and in 2002 they turned to Dynaudio to develop a benchmark sound system for the next generation Passat. Inspiring owners and car magazine test drivers alike, the resulting high-end sound system redefined the level of sound quality from a factory-fitted stereo system.
  • Page 23 All there is. Dynaudio A/S, 8660 Skanderborg, Denmark Sales & Marketing: Dynaudio International GmbH, Ohepark 2, 21224 Rosengarten, Germany, Phone: +49 4108 - 41 80 - 0 www.dynaudio.com © Dynaudio International GmbH, Esotec/Esotar 1111, Item No. 455238. All text and image copyrights reserved. Subject to change without notice.
