Danish Interpretation Systems CU6005 Manual

Partner: Danish Interpretation Systems
Model: CU6005
Device Type: Miscellaneous Processor
GENERAL INFORMATION
SIMPLWINDOWS NAME:
CATEGORY:
VERSION:
SUMMARY:
GENERAL NOTES:
CRESTRON HARDWARE REQUIRED:
SETUP OF CRESTRON HARDWARE:
VENDOR FIRMWARE:
VENDOR SETUP:

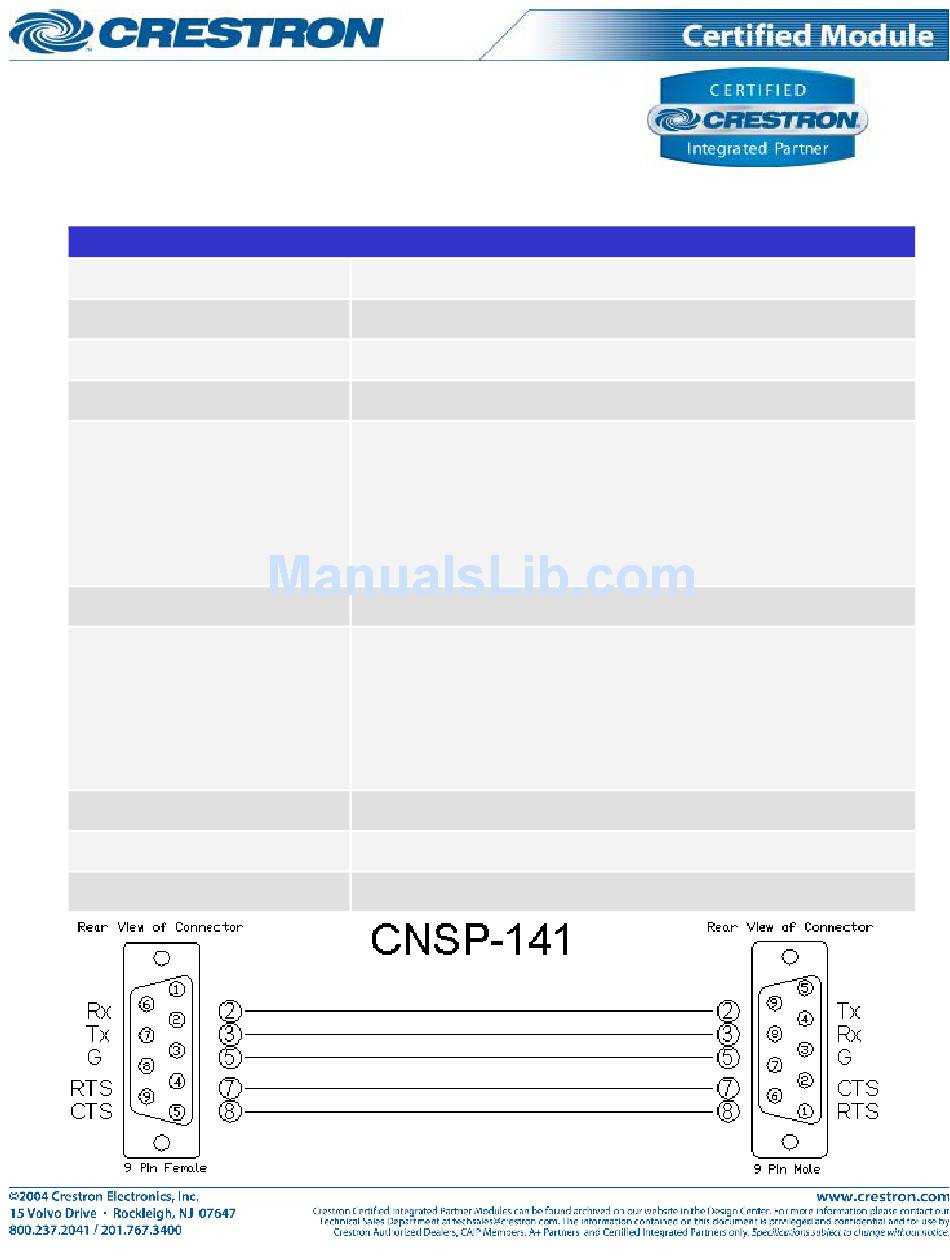

CABLE DIAGRAM:
Danish Interpretation Systems CU6005 v1.0
Generic audio
1.0
Controls all standard functions and provides true feedback
This module will control most of the standard functions of the Danish Interpretation
Systems CU6005 Digital Conferencing System. Functions provided include
microphone activity, request, operation modes, voting modes, speaker volume and
line out volume. The CU6005 processor must be enabled, by licensing, for the voting
control to function. Check the CU6005's front panel menu structure for this feature.
This module will provide control support for up to 100 microphones. The desired
microphone is selected by setting a decimal value on the "Mic_Number" analog input.
Valid range is 1d to 100d. Rather than using an Analog Init symbol, that can be
cumbersome for 100 mics, a Numeric keypad can be used for quick access to control
the desired microphone. Module is 2-series only.
C2I-COM, ST-COM, CNX-COM6, CNX-COM2, C2-COM2/3
RS232
Baud: 115,200
Parity: N
Data Bits: 8
Stop Bits: 1
Handshaking: RTS/CTS
V6.1.5
N/A
CNSP-141
